Bison 016-101-0026 Gear Motor 1/20 Hp 63 RPM 115V 60HZ.

• 100 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 49 inch pounds; Over Hung lbs. = 230

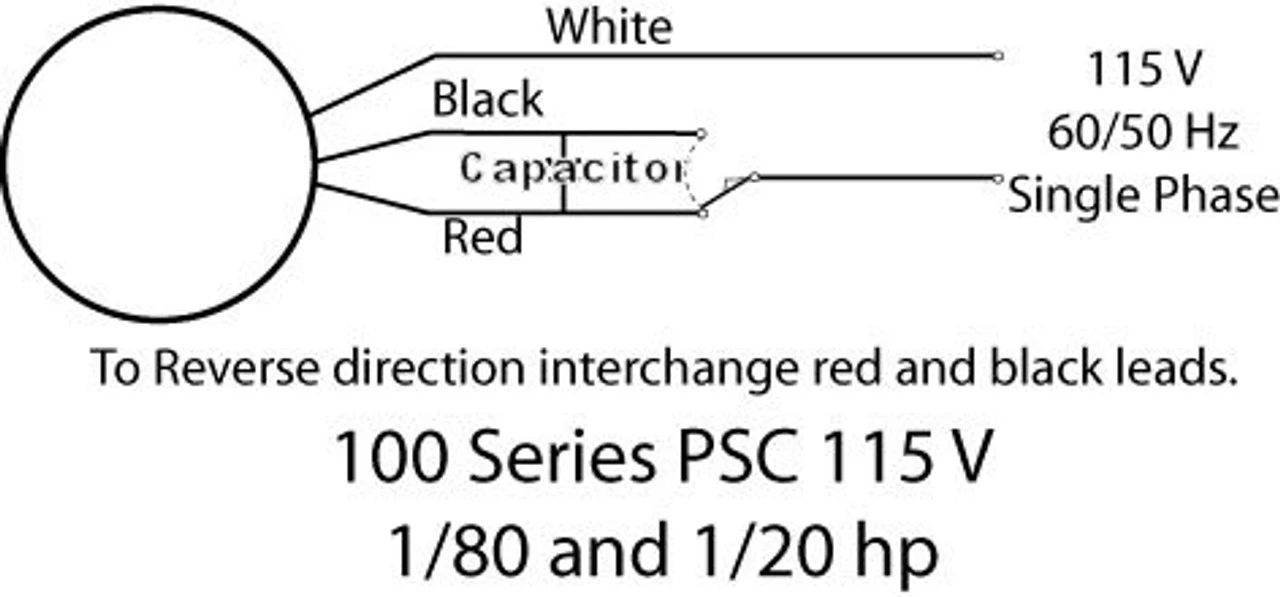

• Rotation = Reversible; Junction Box Included
• 1/20 hp 63 RPM, .62 amps, 115 VAC
• TENV Enclosure, Keyed Shaft, Ball Bearings

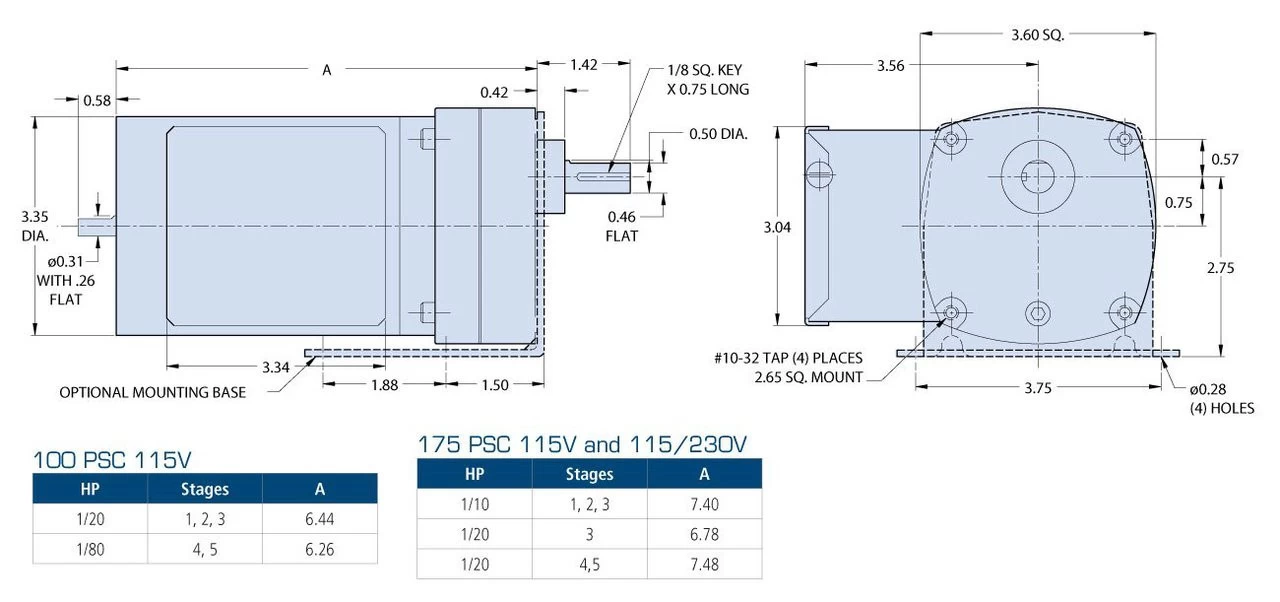

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton equivilient 6Z083, Baldor equivilent GCP24136.
