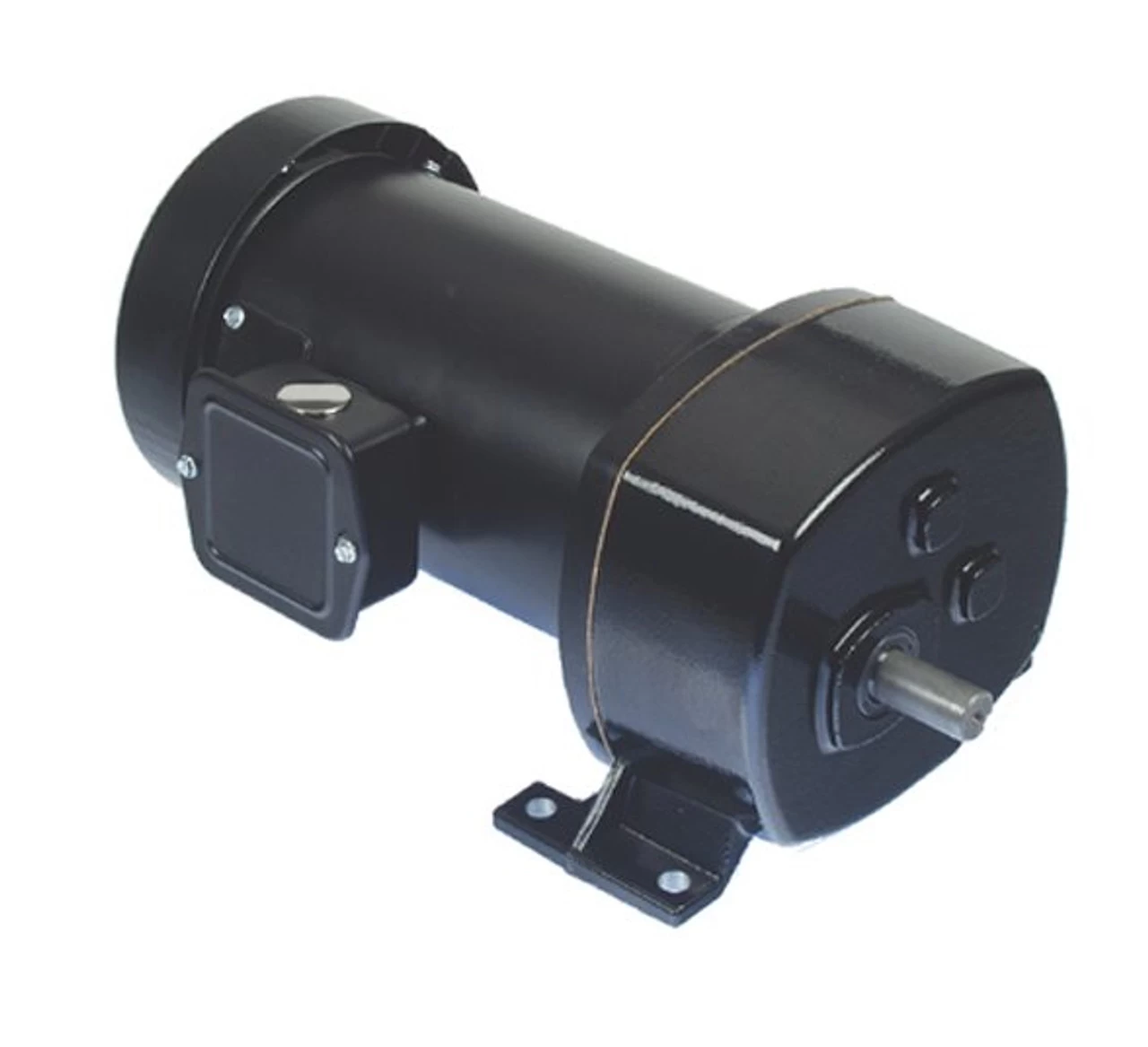

Bison 011-483-4012 Gear Motor 1/4 Hp 144 RPM 90VDC

• 483 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 101 inch pounds; Over Hung lbs. = 101
• Rotation = Reversible
• 1/4 hp 144 RPM, 2.95 amps, 90 Volts DC
• TENV Enclosure, Keyed Shaft, Ball Bearings

Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 6Z412. Can use with Leeson speed control 174307, 174308.
