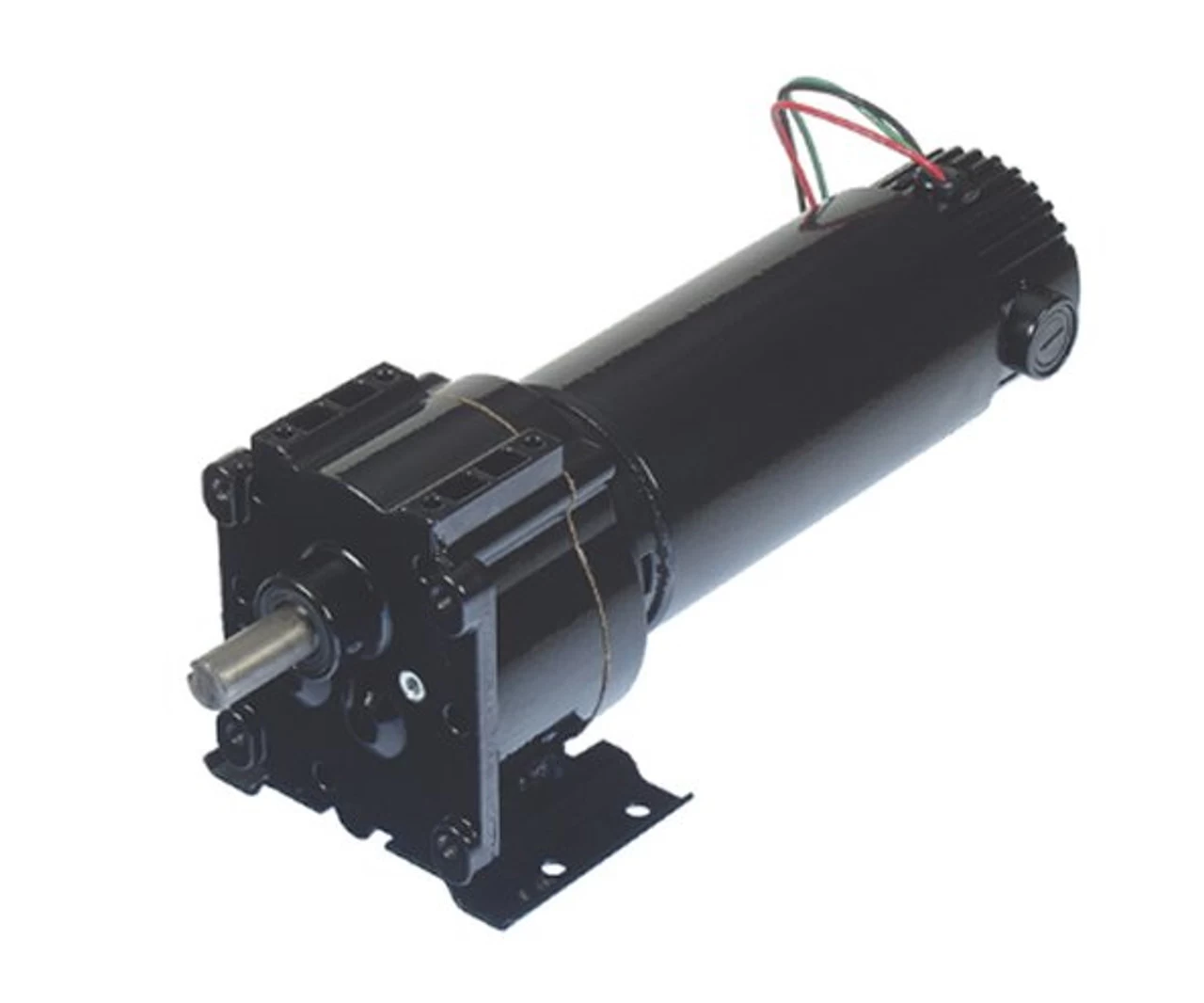

Bison 011-348-5200 Gear Motor 1/8 Hp 8.3 RPM 24VDC

• 348 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 310 inch pounds
• Over Hung lbs. = 500
• 3 Stage
• Rotation = Reversible
• Rear tapped hole in shaft for encoder mount.
• 1/8 hp 8.3 RPM, 2.5 amps, 24 Volts DC
• TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9121 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Rear tapped hole in shaft for encoder mount. Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 4ZJ45. Can use with Leeson speed control 175290.
