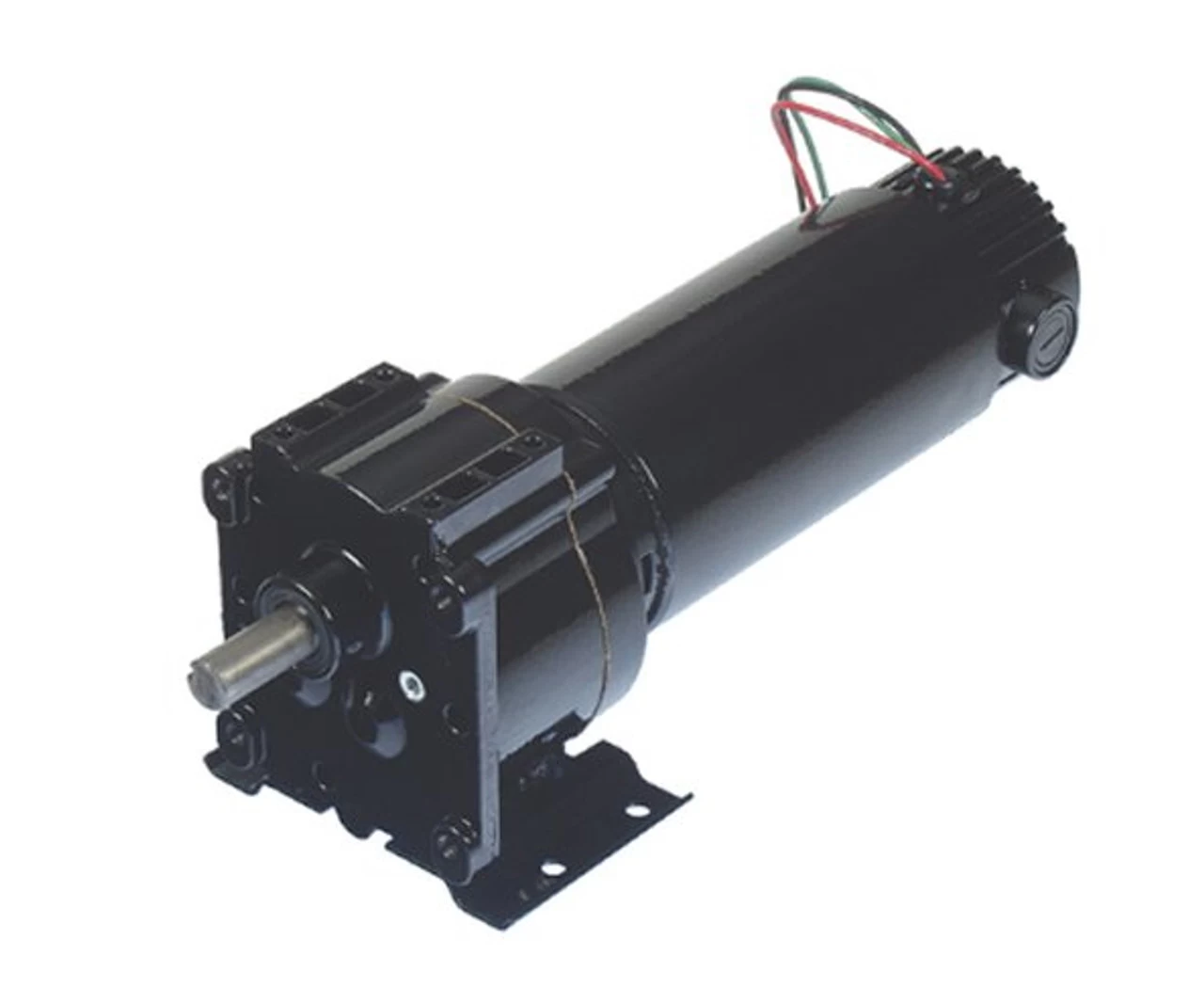

Bison 011-336-2082 Gear Motor 1/8 Hp 22 RPM 90/130VDC

• 336 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 300 inch pounds
• Over Hung lbs. = 322
• 3 Stage
• Rotation = Reversible
• 1/8 hp 22 RPM, 1.16 amps, 90 Volts DC
• TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9121 Junction Box. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 4Z133. Can use with Leeson speed control 174307, 174308. Bison Speed Control Model 170-113-003
