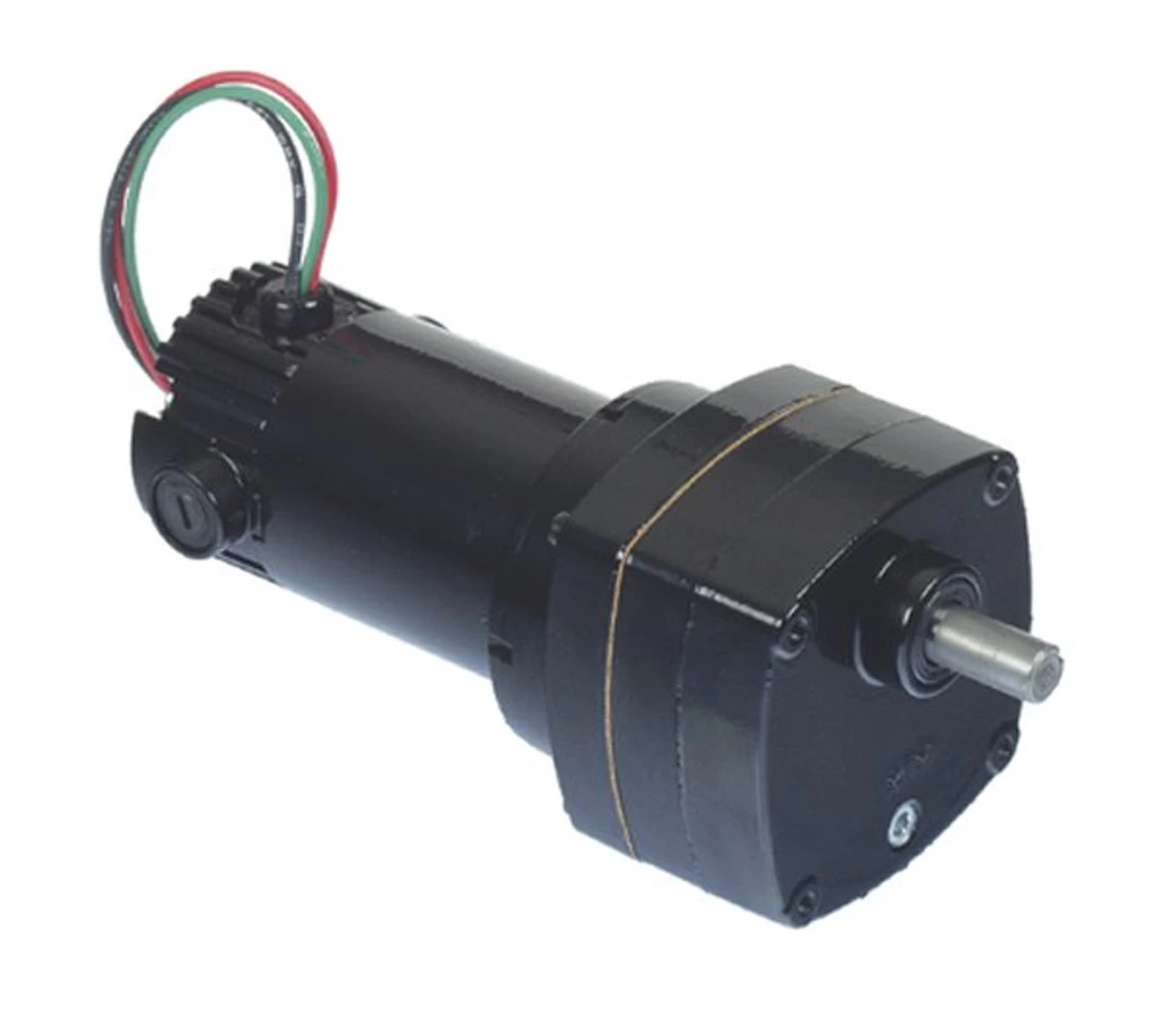

Bison 011-175-1369 Gear Motor 1/20 Hp 1.3 RPM 90/130VDC

• 175 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 160 inch pounds
• Over Hung lbs. = 115
• 5 Stages
• Rotation = Reversible
• 1/20 hp 1.3 RPM, .17 amps, 90 Volts DC
• TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Can use with Leeson speed control 174307, 174308.
