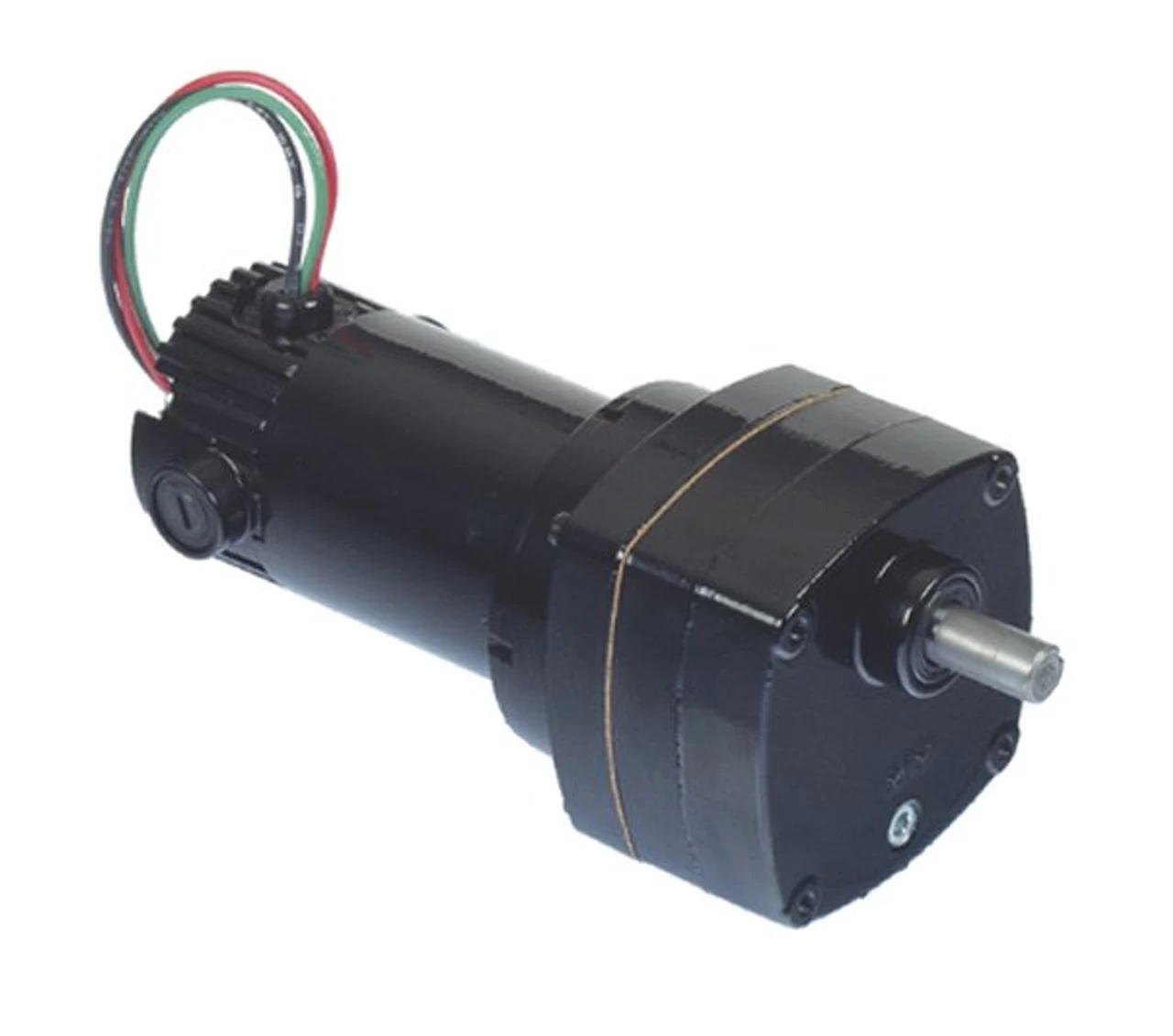

Bison 011-175-0362 Gear Motor 1/20 Hp 4.5 RPM 90/130VDC
Original price was: $392.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed

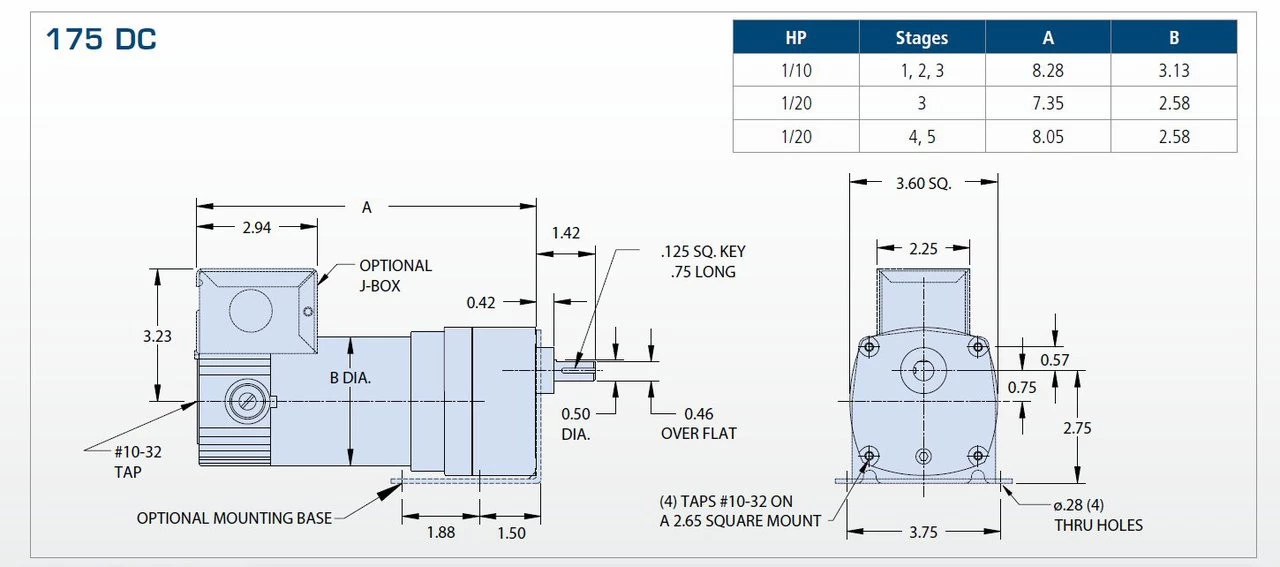

- 175 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 155 inch pounds
- Over Hung lbs. = 115
- 4 Stages
- Rotation = Reversible
- 1/20 hp 4.5 RPM, .26 amps, 90 Volts DC
- TENV Enclosure, Keyed Shaft, Ball Bearings
Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Suggested replacement reference for: Dayton 2H569. Can use with Leeson speed control 174307, 174308.
