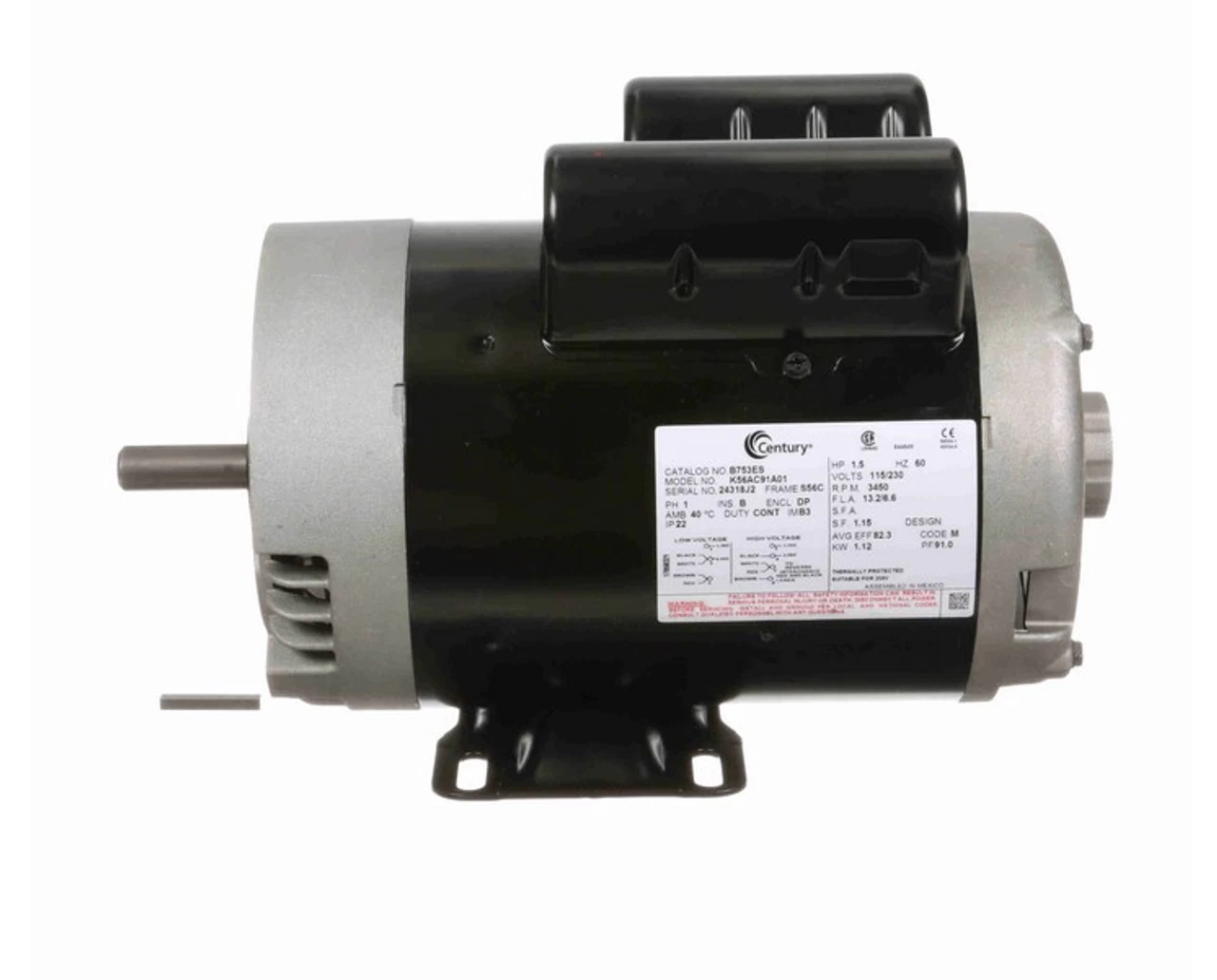

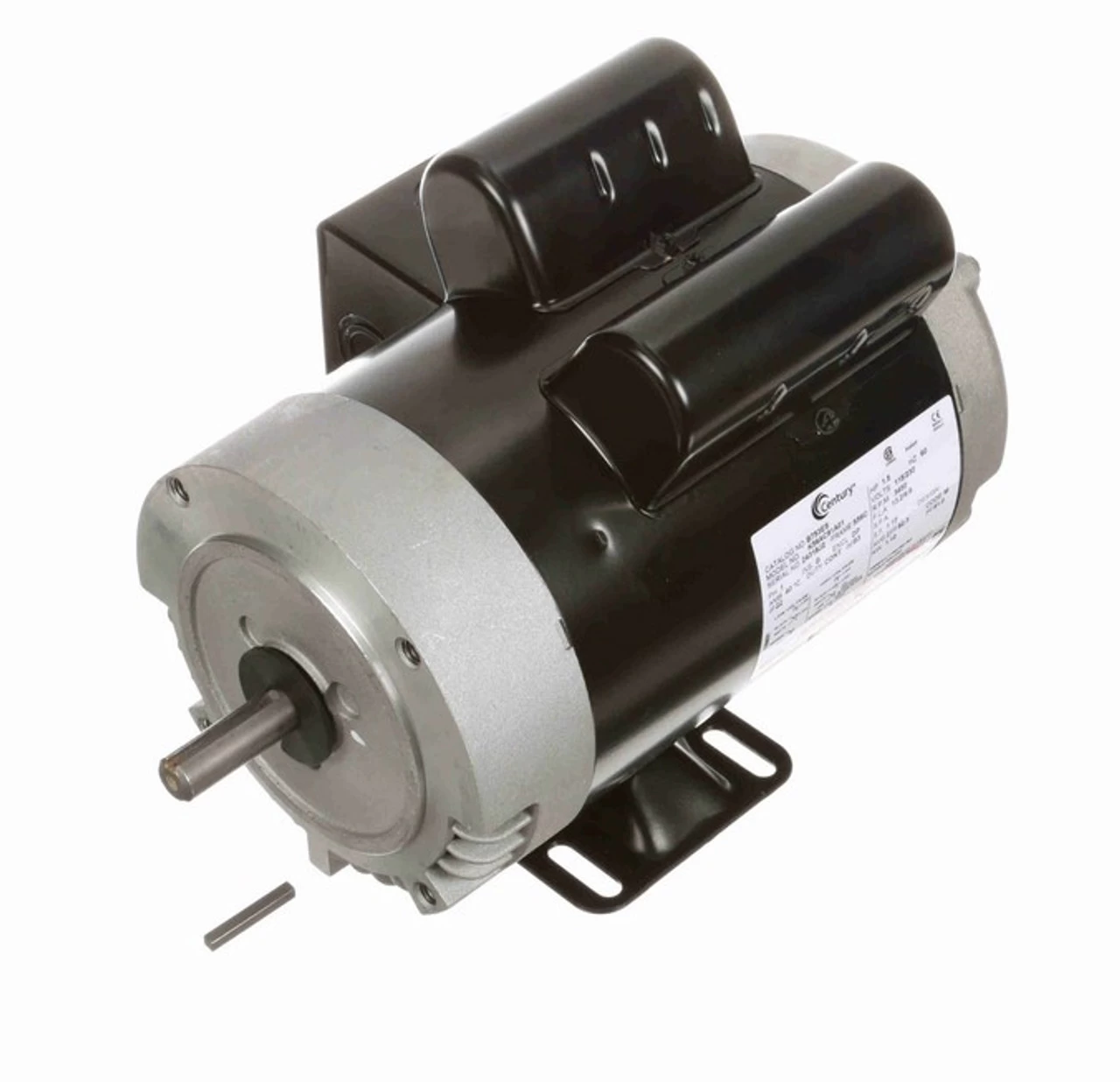

B753ES Century 1 1/2 Hp 3600 RPM 56C Frame ODP (rigid Base) 115/230V Motor

• 1 1/2 hp 3600 RPM, 13.2/6.6 amps 115/230 Volts 60hz. Capacitor Start – Capacitor Run Motor

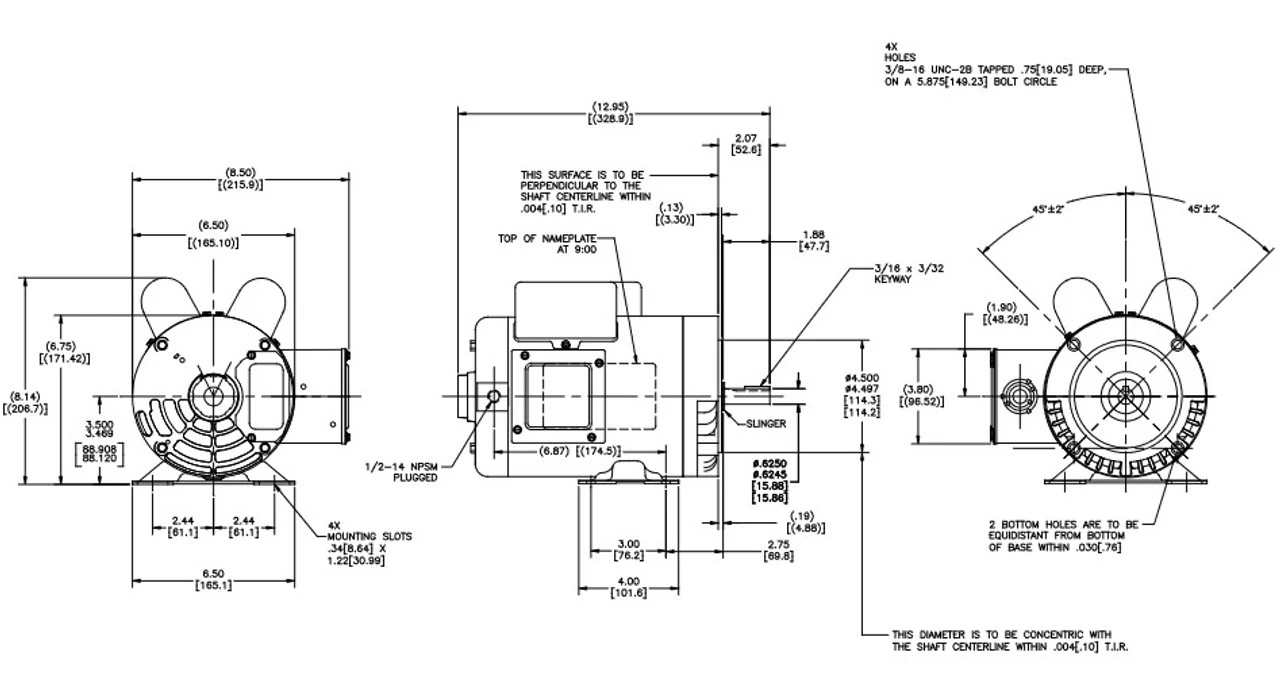

• NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.15, Overload protection = Auto
• Rigid Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

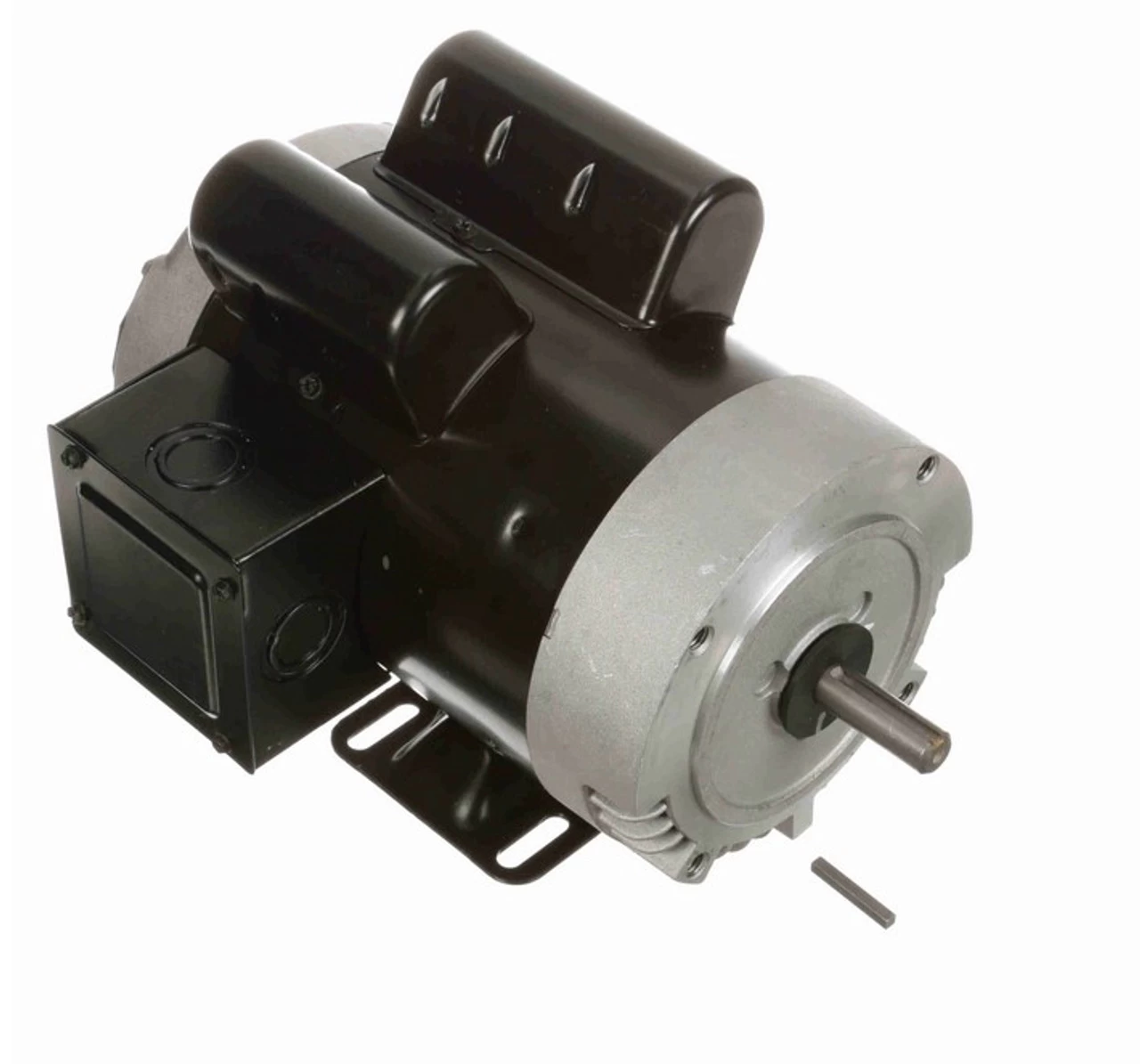

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof. B753ES
