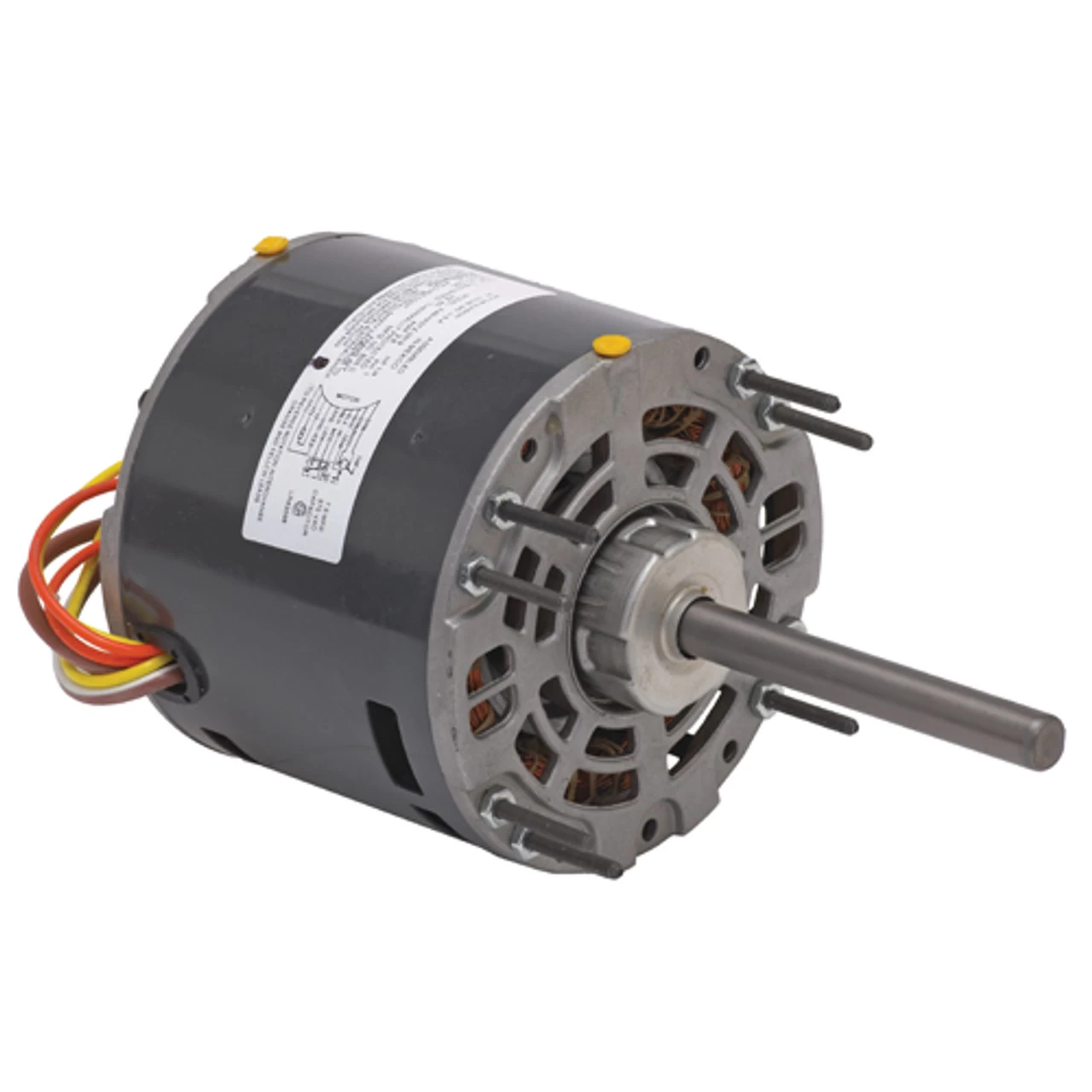

8944 Nidec 1/4 Hp 1625 RPM 460V 5.6″ Dia. (No Base) 2-Speed OAO Fan Motor
Original price was: $329.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1/4 hp 1625 RPM (2 speed), 0.8 amps 460V Volts 60 Hz PSC Motor
- 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 6″
- Service Factor = 1, Overload Protection: Auto
- Stud Mount, Sleeve Bearings, Class B Insulation, Rev
- 1 Year Manufacture Warranty

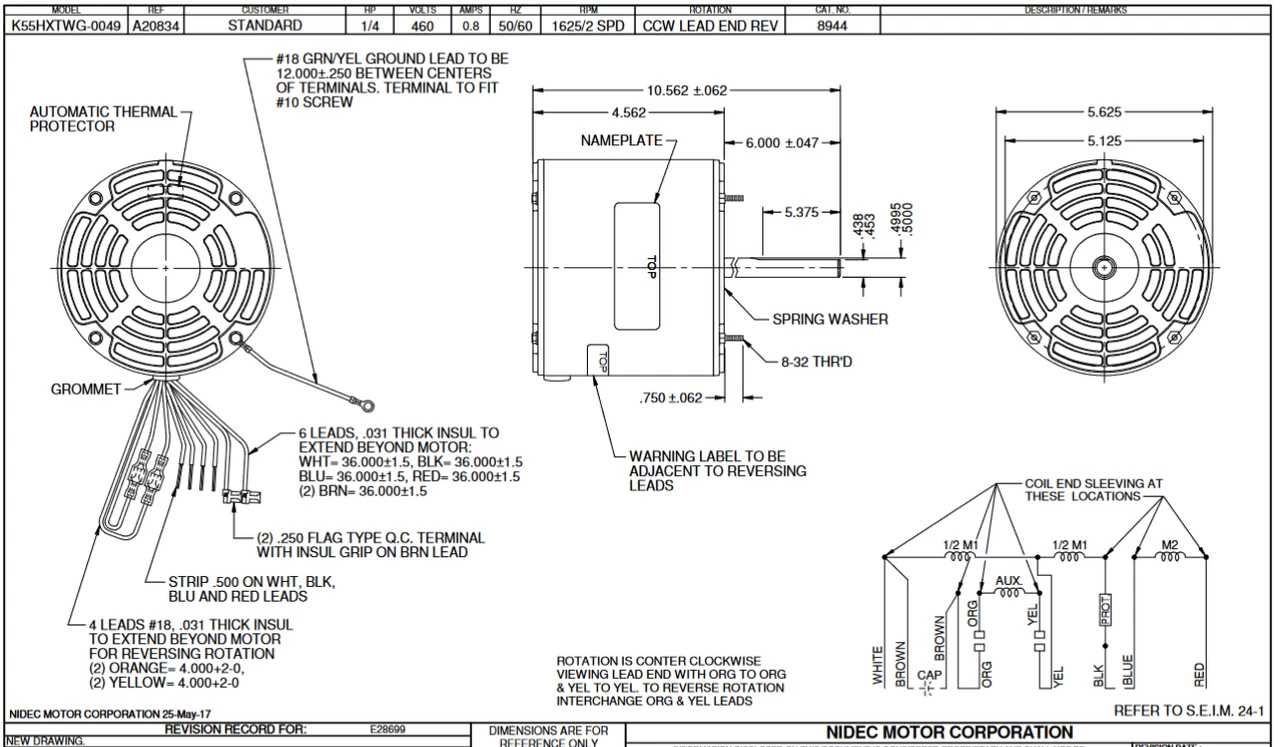

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, K055TWG0049012B
