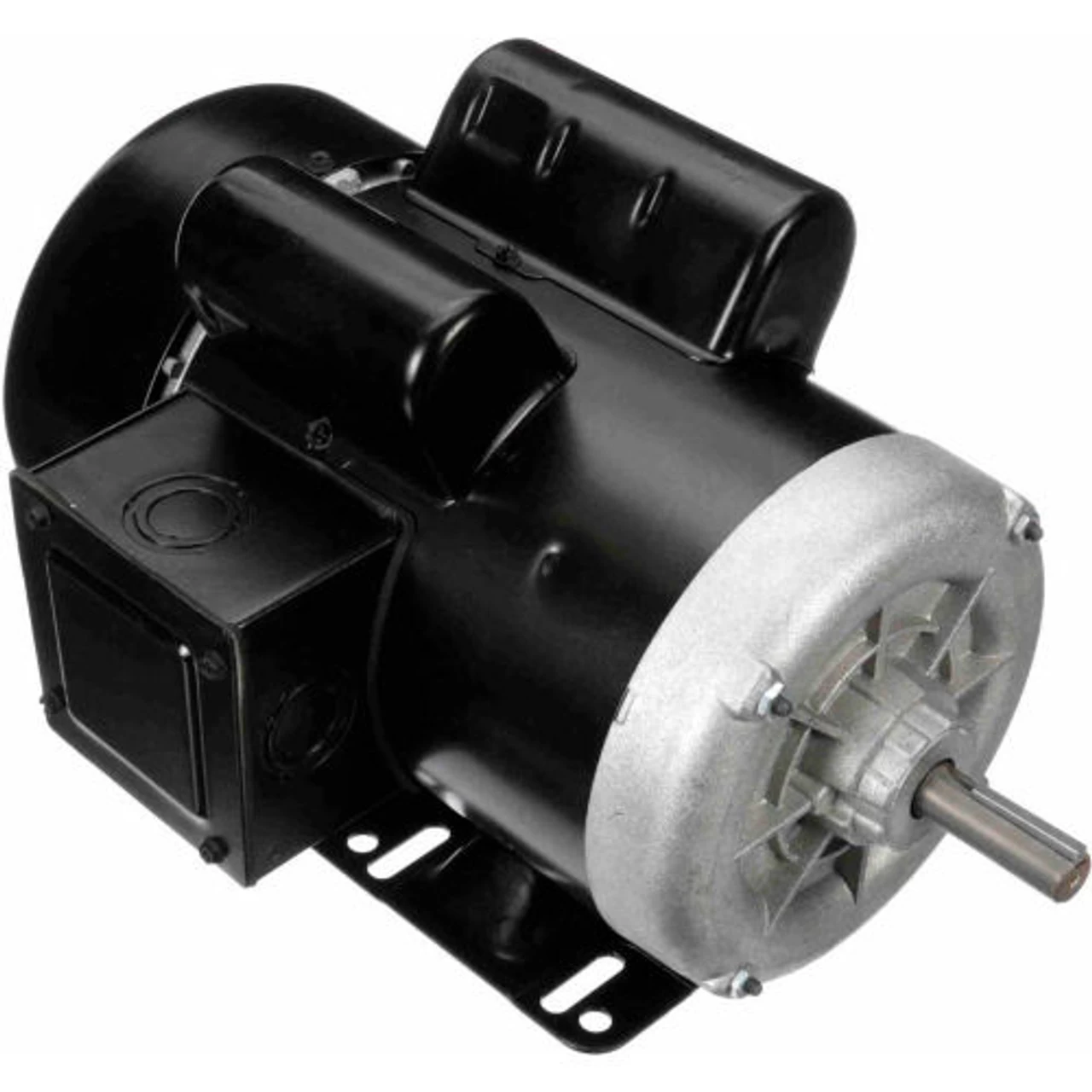

6174 Nidec 1/2 Hp 1800 RPM 100-120/200-240V 56 Frame (Rigid Base) 1-Speed TEFC Cap Start/Run Motor
Original price was: $343.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1/2 hp 1800 RPM, 6.3-5.6/3.1-2.8 amps 100-120/200-240 Volts 60 Hz Capacitor Start/Run Motor

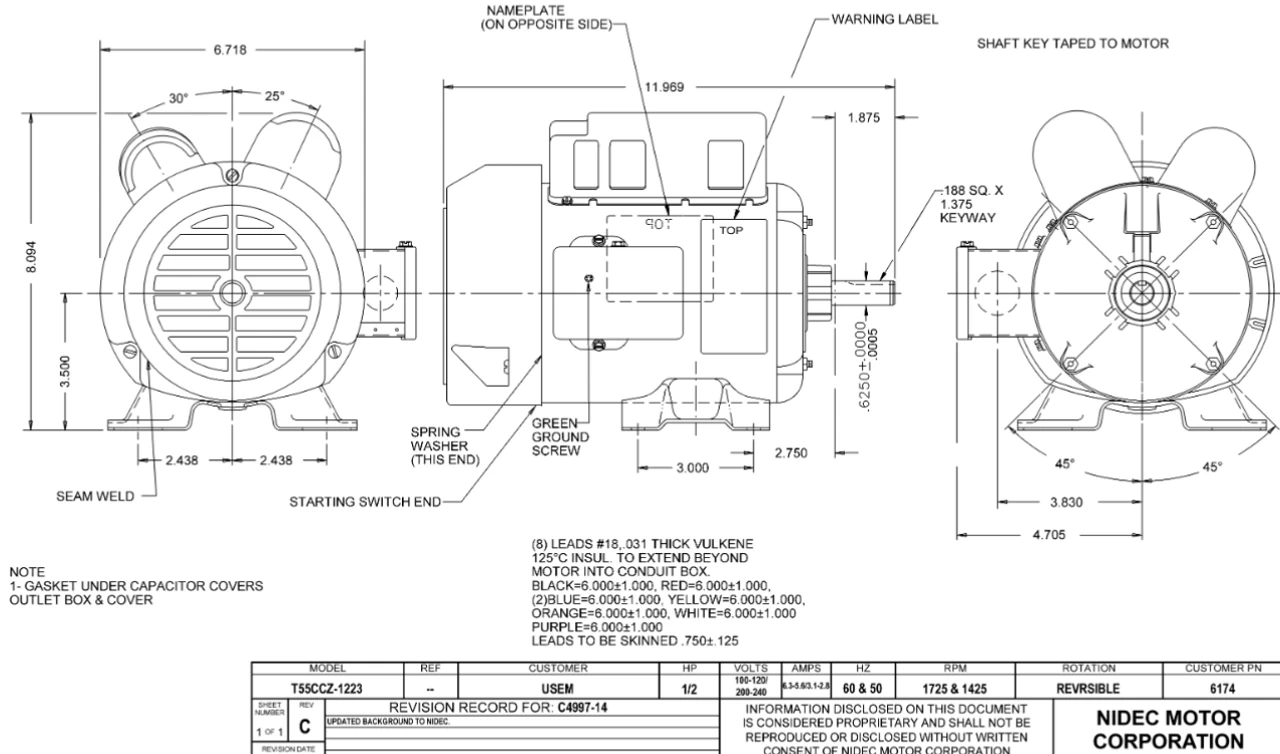

- NEMA 56 Frame, Rolled Steel with Cast Aluminum End Bells, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.25 Overload protection = None
- Rigid Mount, Ball Bearings, Class B Insulation, Reversible
- 1 Year Manufacture Warranty
For used on air compressors, pumps, and conveyor requiring high starting torque. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. T055CCZ1223025B
