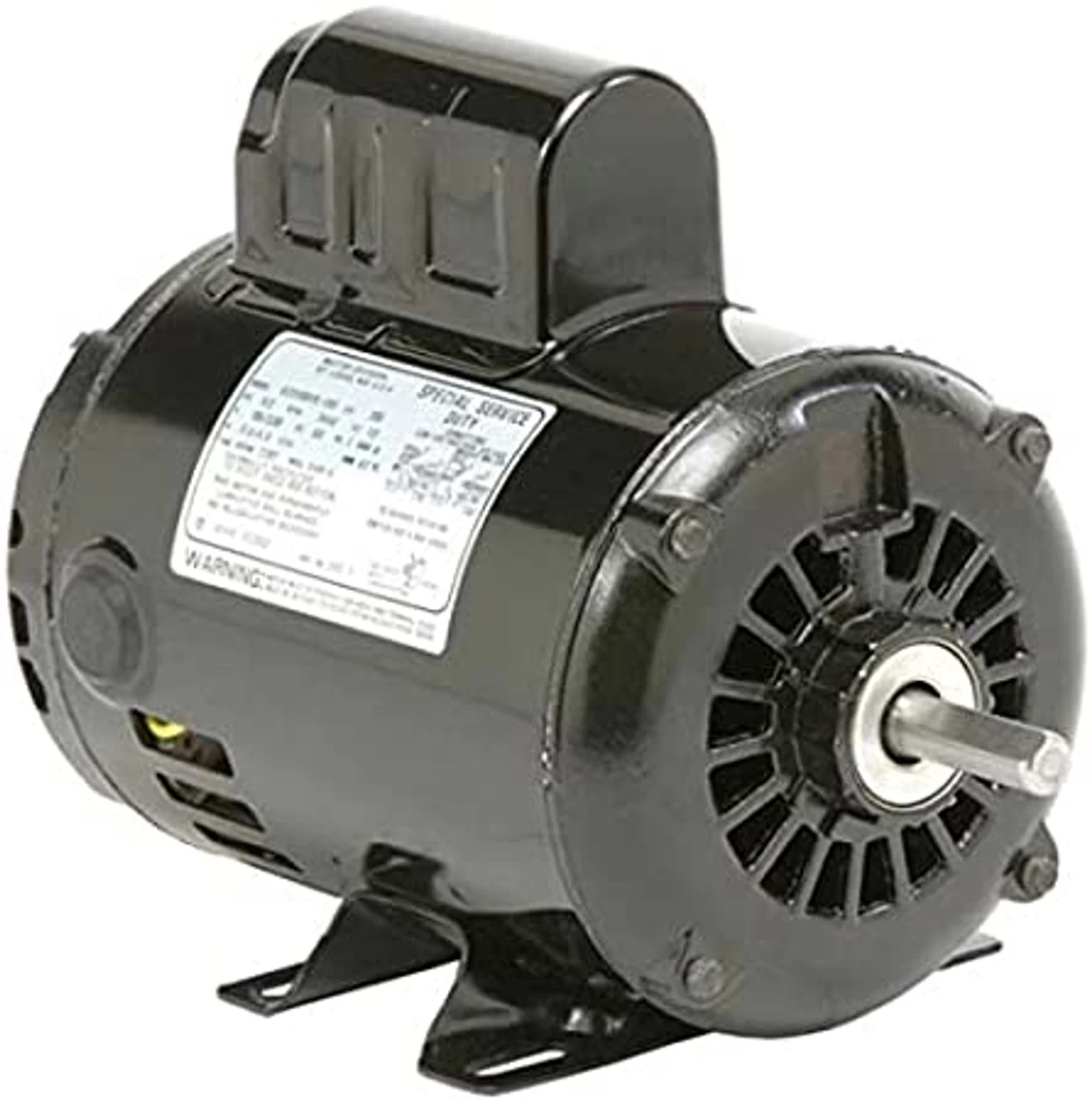

5149 Nidec 1 HP 1800 RPM 115/230V 56 Frame (Base) ODP Evaporative Cooler Motor
Original price was: $394.00.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 HP 1800 RPM (1 speed), 15.1/7.5 amps 115/230V Volts 60 Hz Capacitor Start Motor
- 5.6″ Dia. Frame, Rolled Steel, Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor = 1.0, Overload Protection: Auto
- Base Mount, Ball Bearings, Class F Insulation, Reversible
- 1 Year Manufacture Warranty

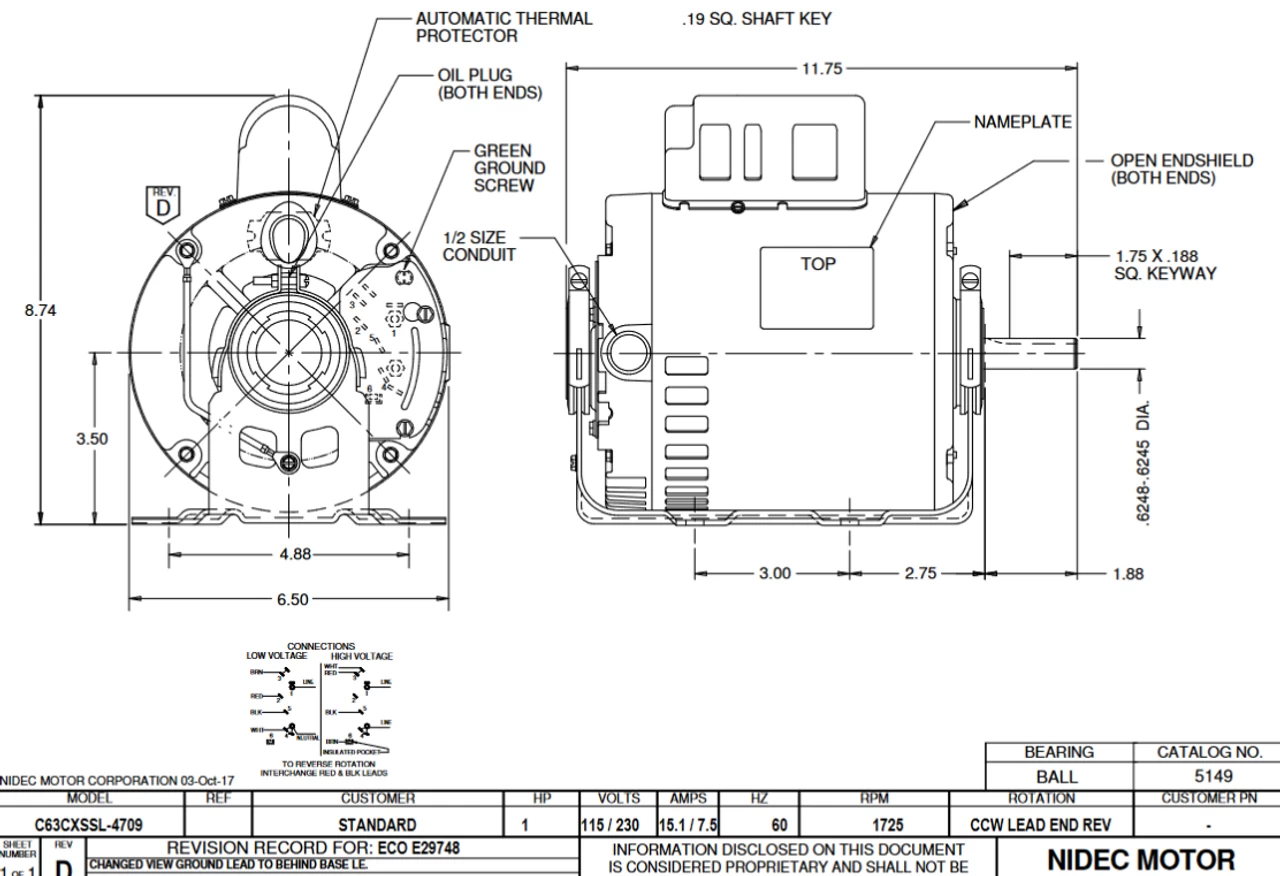

Belt Drive Fan Motor for evaporative cooling units. Wiring diagram on motor name plate. ODP = Open Drip-Proof, C063SSL4709012B
