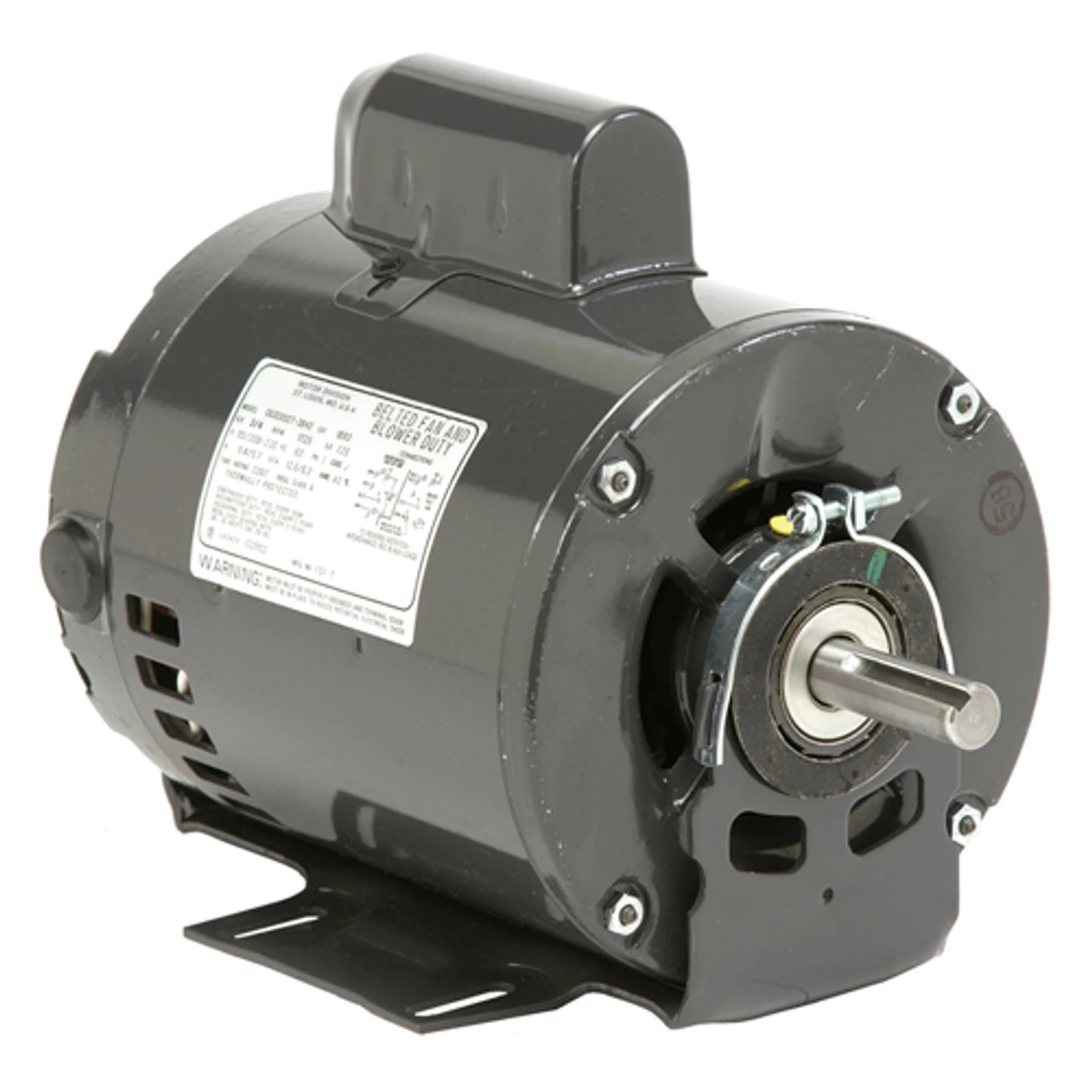

430 Nidec 3/4 Hp 3600 RPM 115/208-230V 5.6″ Dia. (Base) 1-Speed ODP Belt Drive Motor
Original price was: $347.60.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 3/4 hp 3600 RPM (1 speed), 9.2/4.6 amps 115/208-230V Volts 60 Hz Capacitor Start Motor
- 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 1 1/2″
- Service Factor = 1.25, Overload Protection: Auto
- Resilient Base Mount, Ball Bearings, Class B Insulation, Rev
- 1 Year Manufacture Warranty
Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, CA550ZY0003012B
