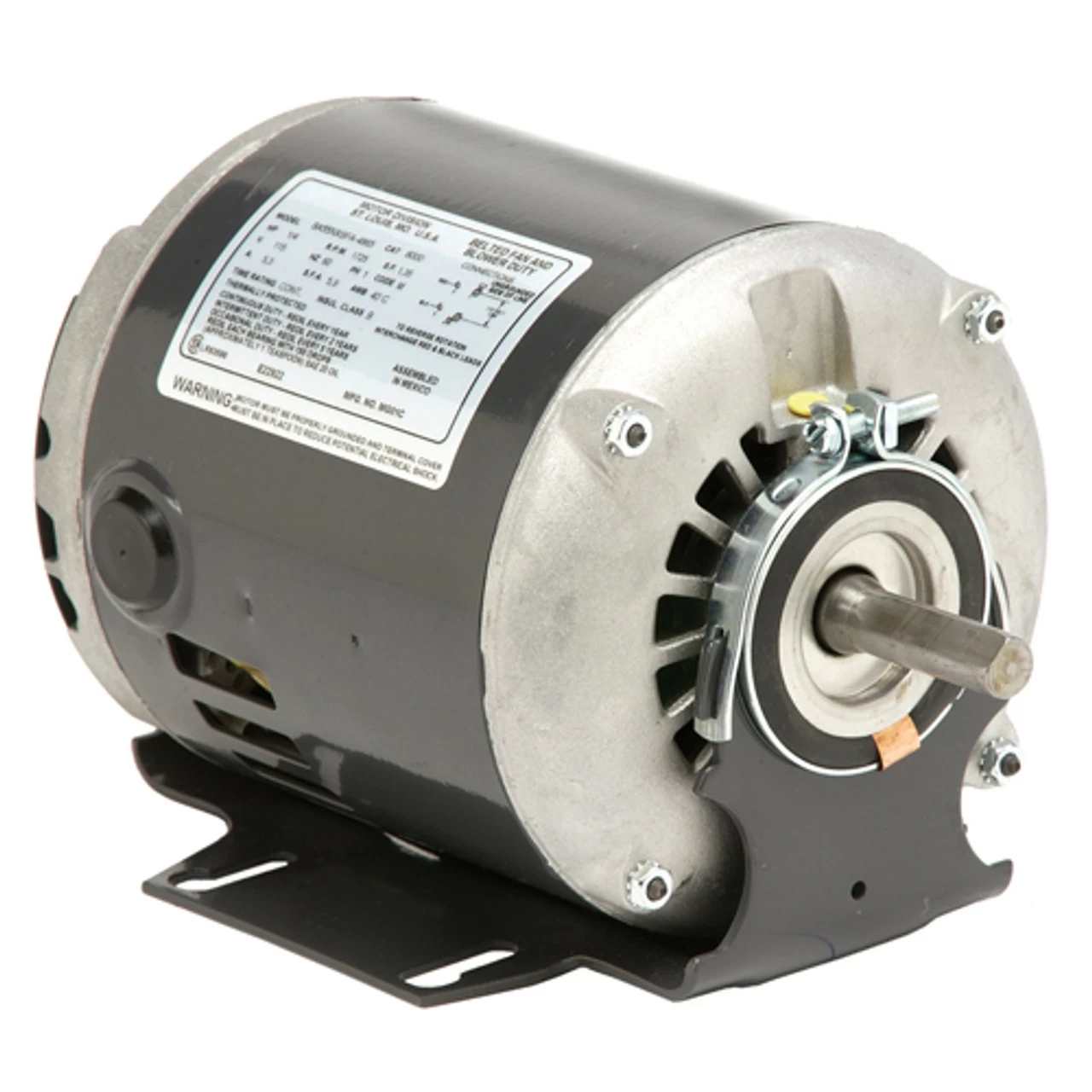

3615 Nidec 1/6 Hp 1800 RPM 115/208-230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor

3615 Nidec 1/6 Hp 1800 RPM 115/208-230V 5.6" Dia. (Base) 1-Speed ODP Belt Drive Motor - Image 2

3615 Nidec 1/6 Hp 1800 RPM 115/208-230V 5.6″ Dia. (Base) 1-Speed ODP Belt Drive Motor

Original price was: $120.46.Current price is: $84.32.

SKU: ZWXLY 1698669458 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec

The best quality products, always.
Best price, safe shopping guarantee
Protect Your Information, Shop with Safe Payments
Safe Shopping Guaranteed

Description
Reviews (0)

1/6 hp 1800 RPM (1 speed), 3.6/1.7-1.8 amps 115/208-230V Volts 60 Hz Split Phase Motor

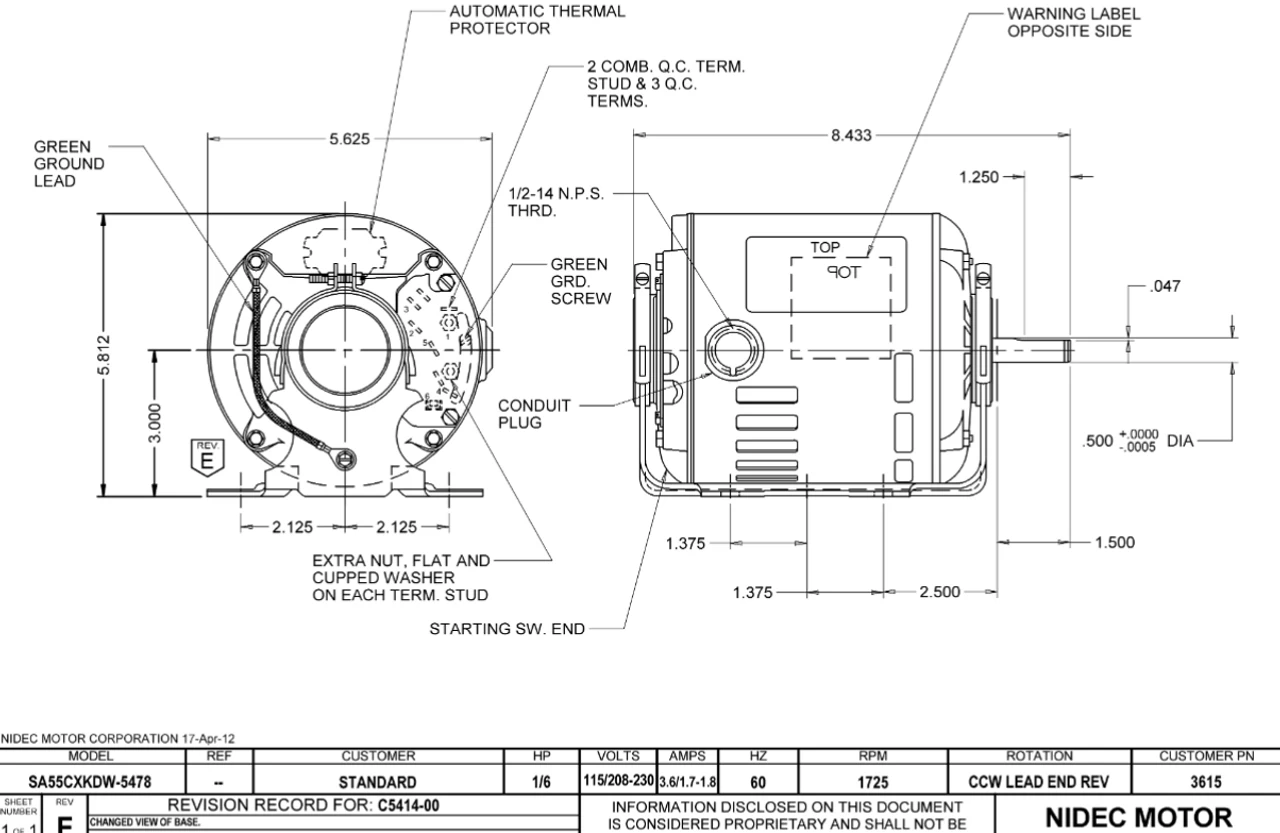

5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 1 1/2″
Service Factor = 1.35, Overload Protection: Auto
Resilient Base Mount, Ball Bearings, Class B Insulation, Rev
1 Year Manufacture Warranty

Belt Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. ODP = Open Drip-Proof, SA55KDW5478022B
