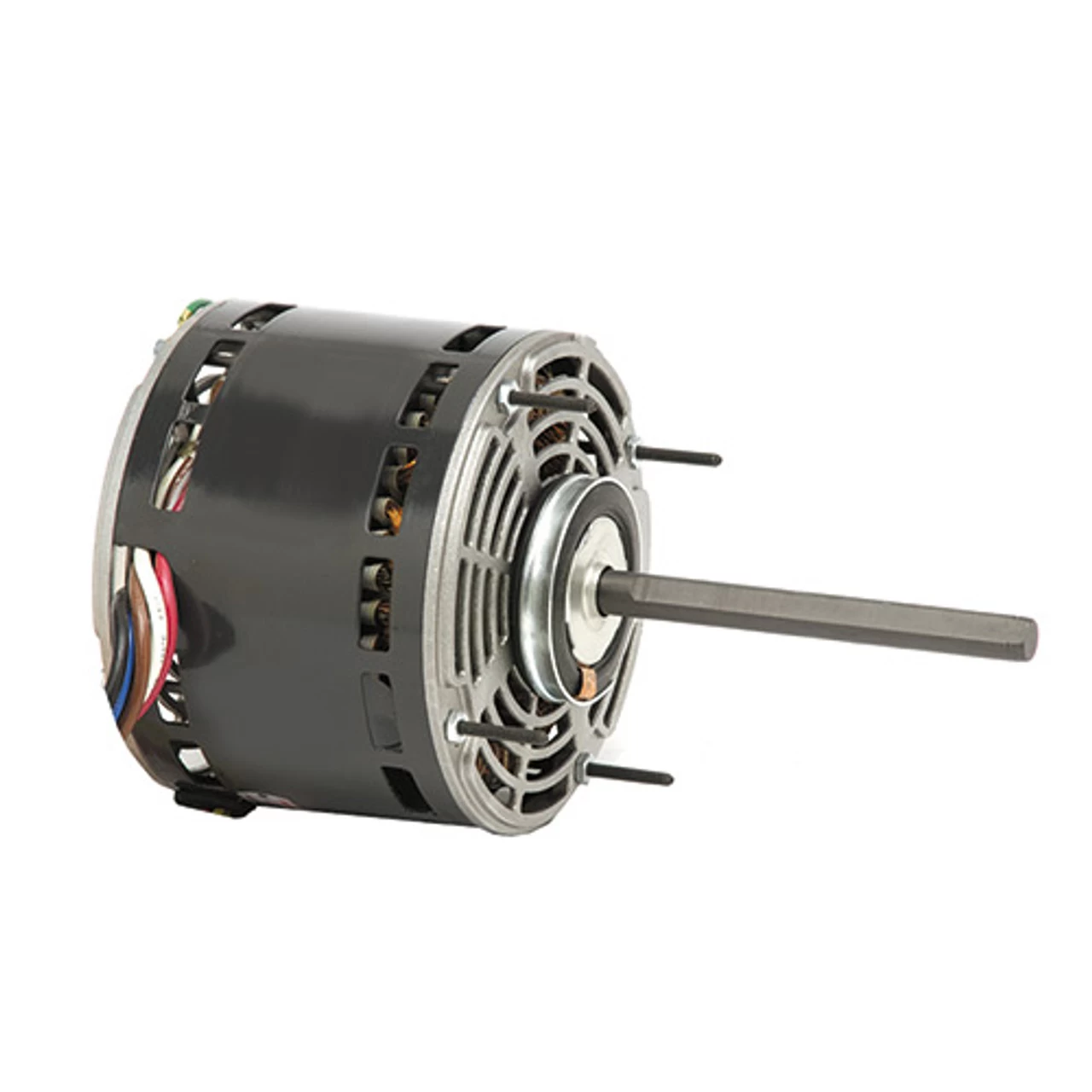

1697 Nidec 3/4 Hp 1625 RPM 208-230V 5.6″ Dia. (No Base) 3-Speed OAO Fan Motor
Original price was: $280.50.$99.99Current price is: $99.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 3/4 hp 1625 RPM (3 speed), 4.4-4.2 amps 208-230V Volts 60 Hz PSC Motor
- 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 6″
- Service Factor = 1, Overload Protection: Auto
- Hub Mount, Sleeve Bearings, Class B Insulation, Rev
- 1 Year Manufacture Warranty

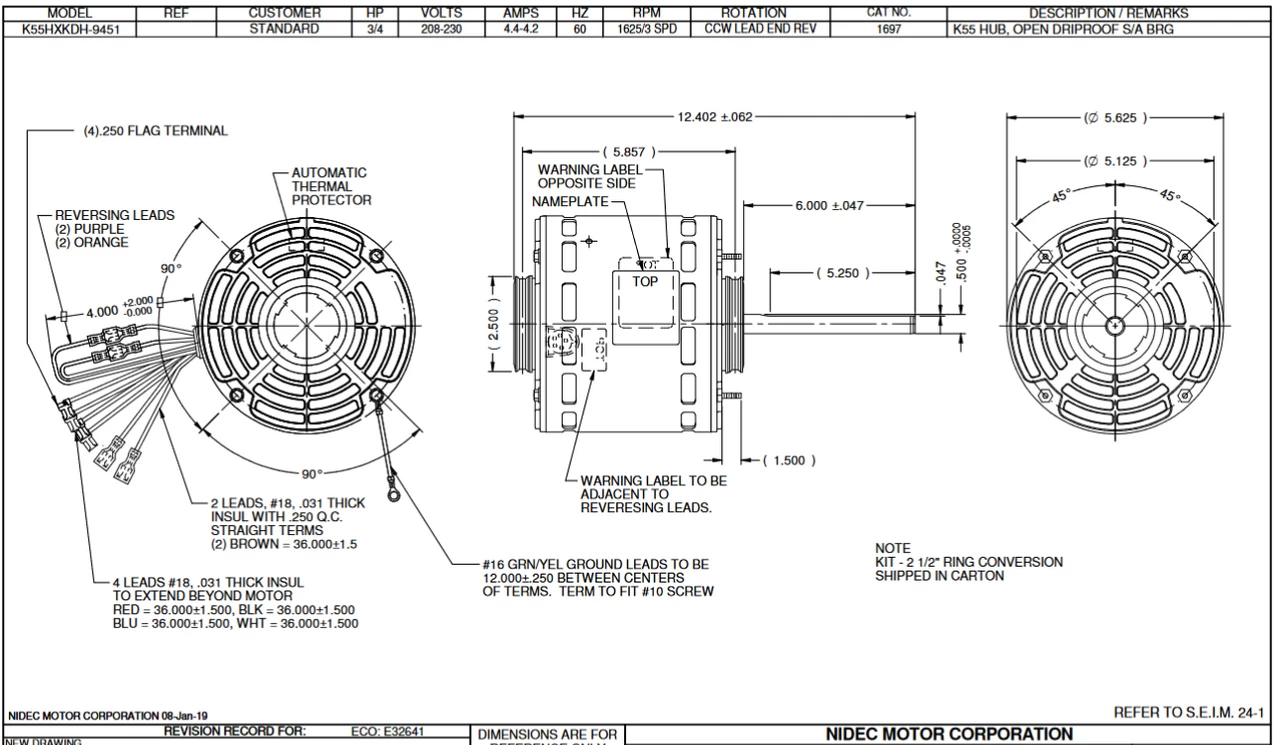

Direct Drive Fan Motor for central HVAC systems. Wiring diagram on motor name plate. OAO = Open Air Over, K055KDH9451022B
