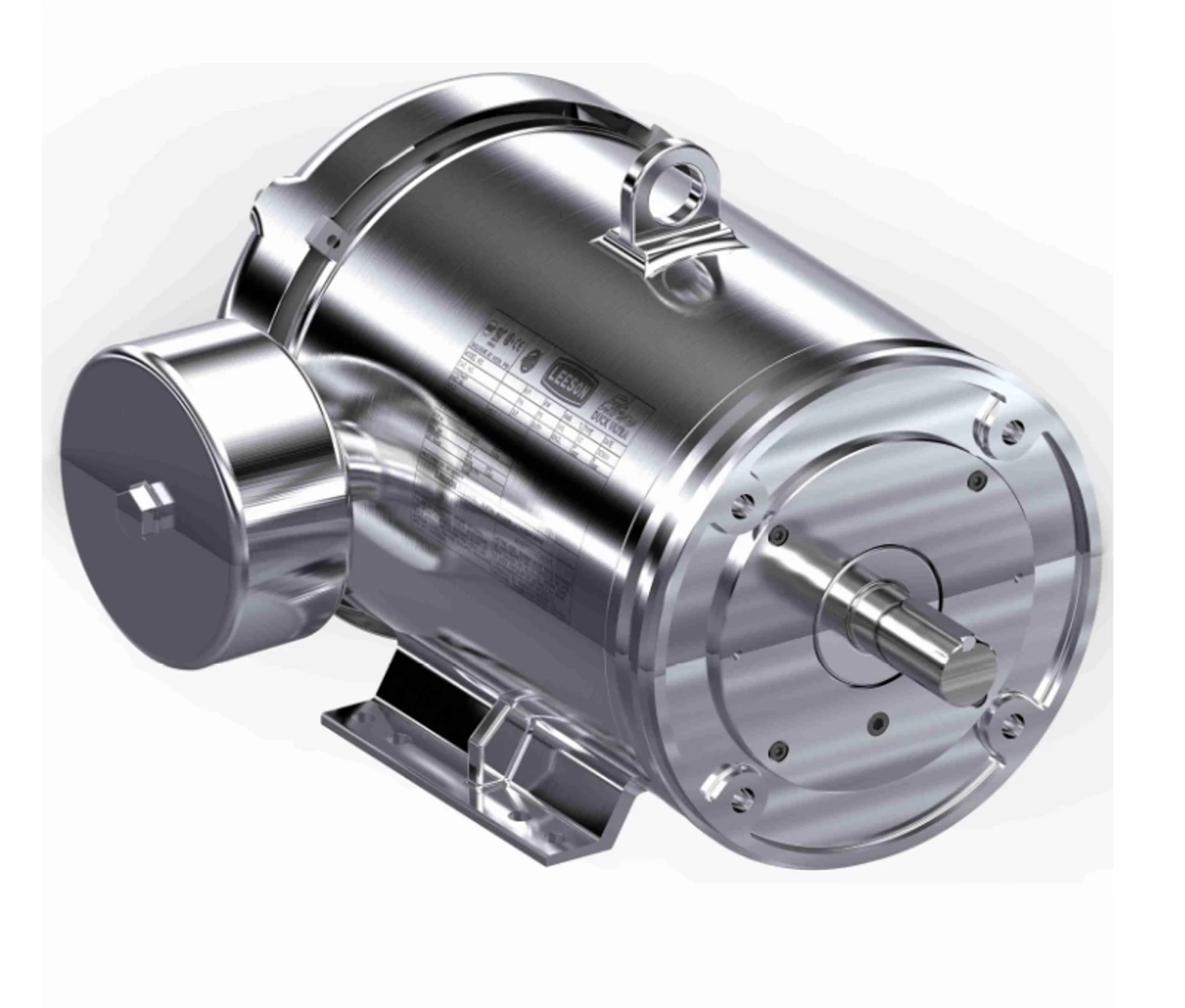

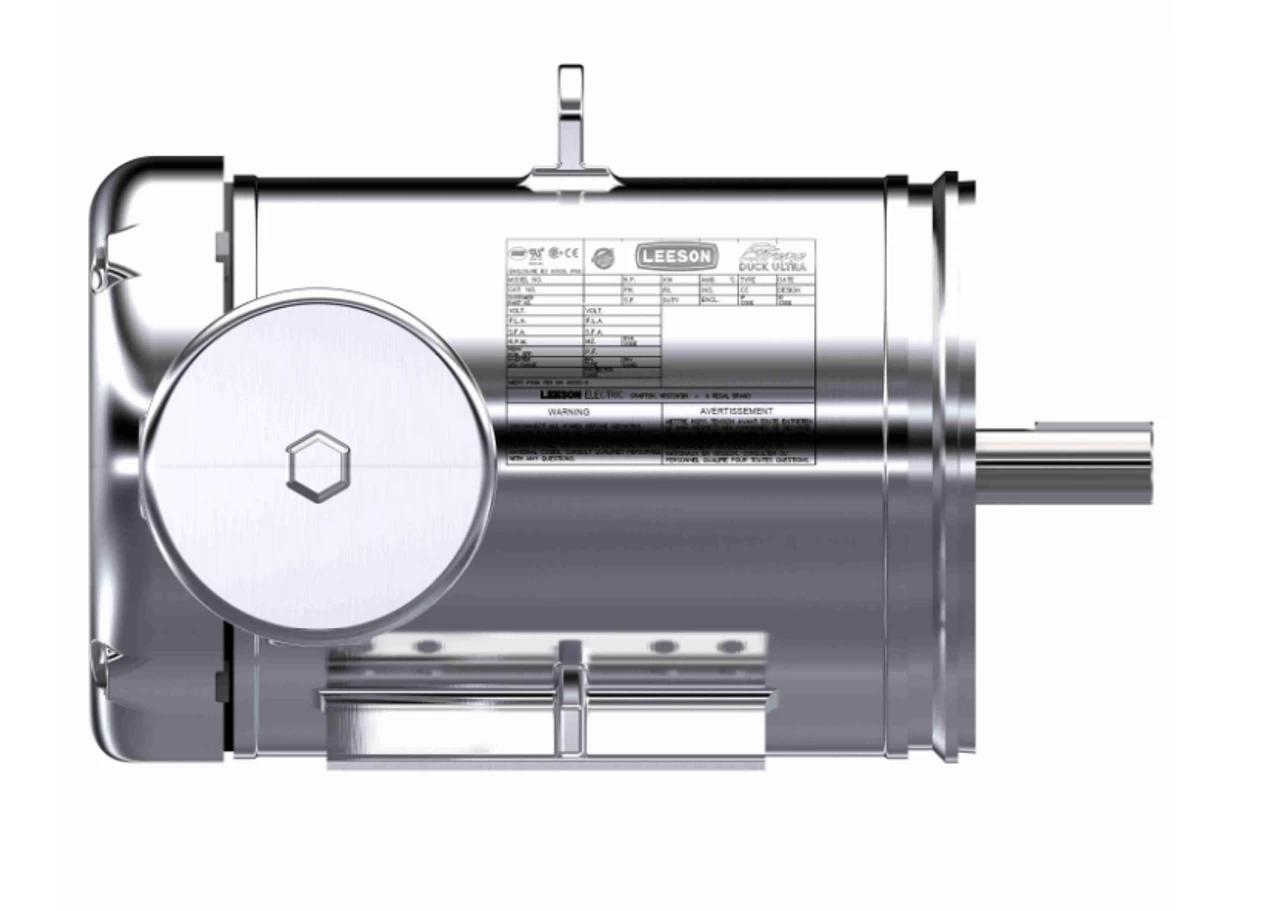

132649.00 Leeson Extreme Duck 5 Hp 1800 RPM 230/460V 3-Phase 184TC Frame TEFC (base) Motor

• 5 hp 1800 RPM, 12.6/6.3 amps 230/460 Volts 60 Hz. Three Phase

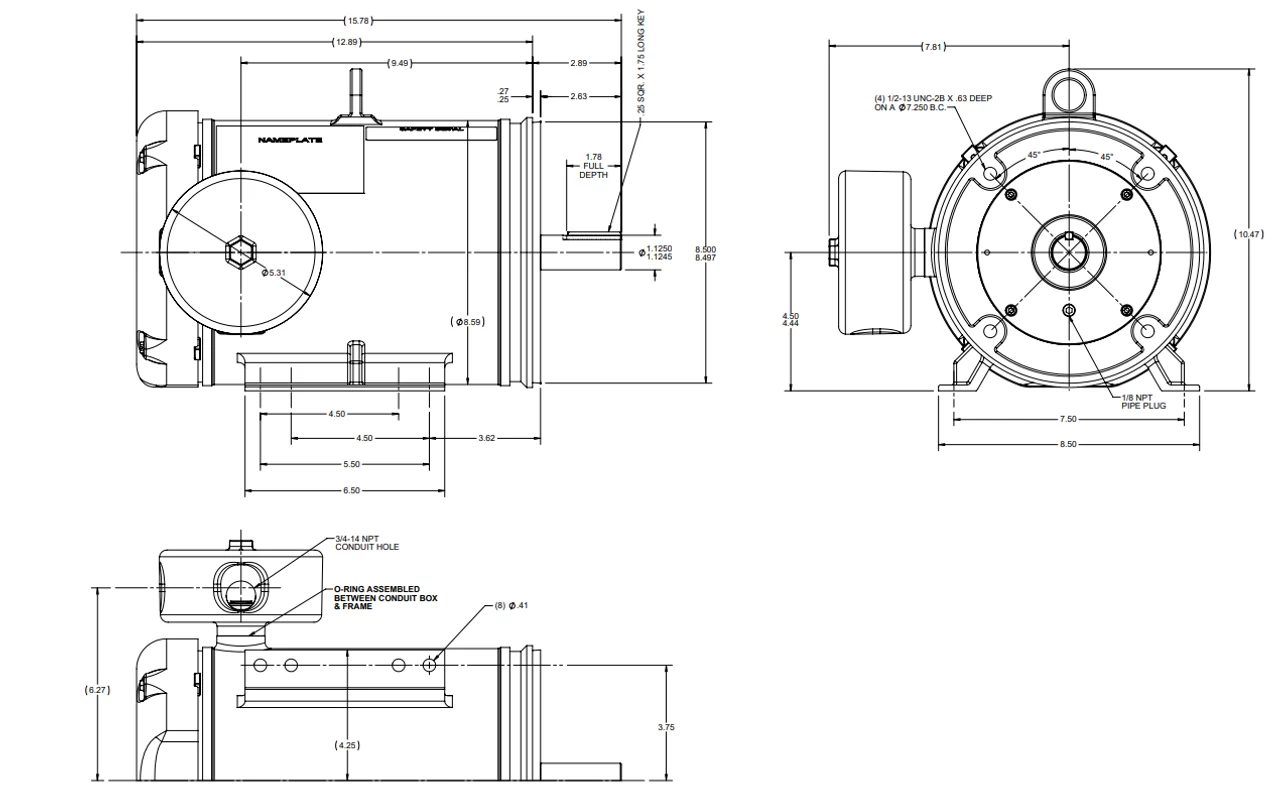

• NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8″ Diameter x 2 5/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132649.00
