132449.00 Leeson Extreme Duck 5 Hp 3600 RPM 208-230/460V 3-Phase 184TC Frame TEFC (no Base) Motor
Original price was: $338.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 5 hp 3600 RPM, 13.2-12.0/6,0 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 184TC frame, C-face, Stainless Steel Keyed Shaft 1 1/8″ Diameter x 2 5/8″
- Service Factor: 1.15, Overload protection = None
- No Base, Reversible, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty

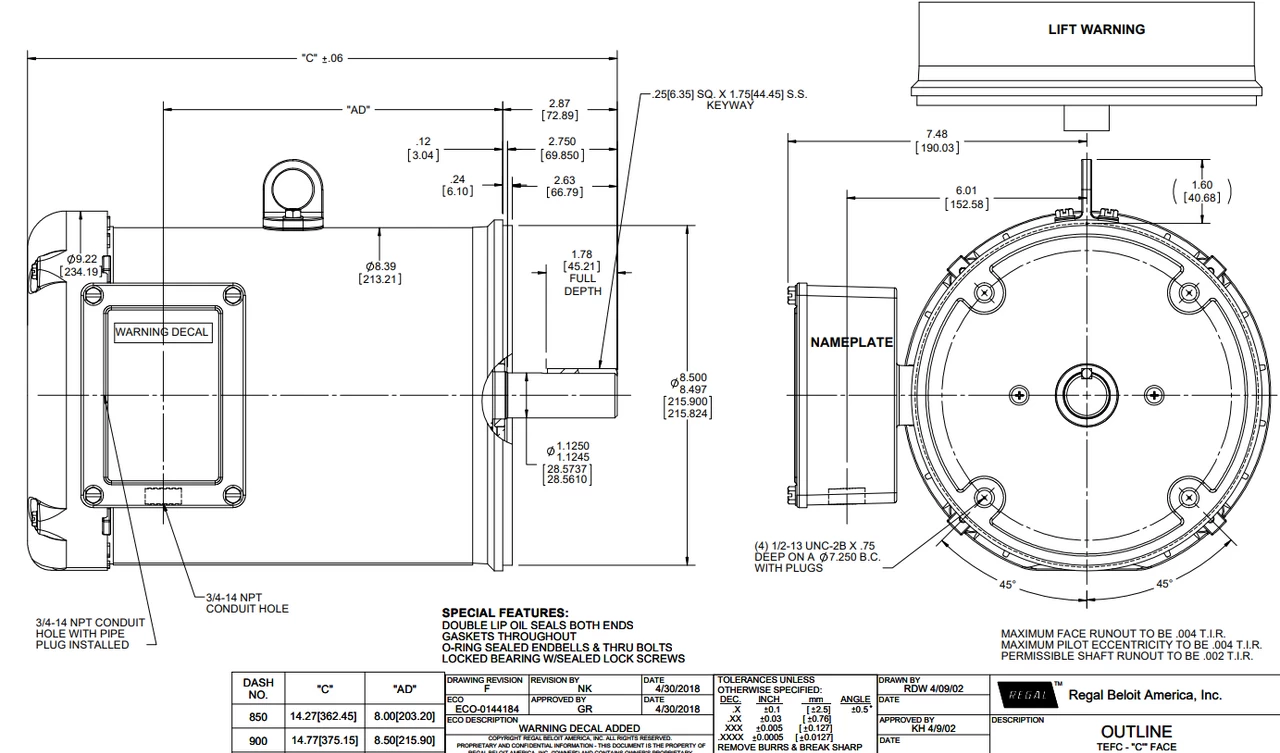

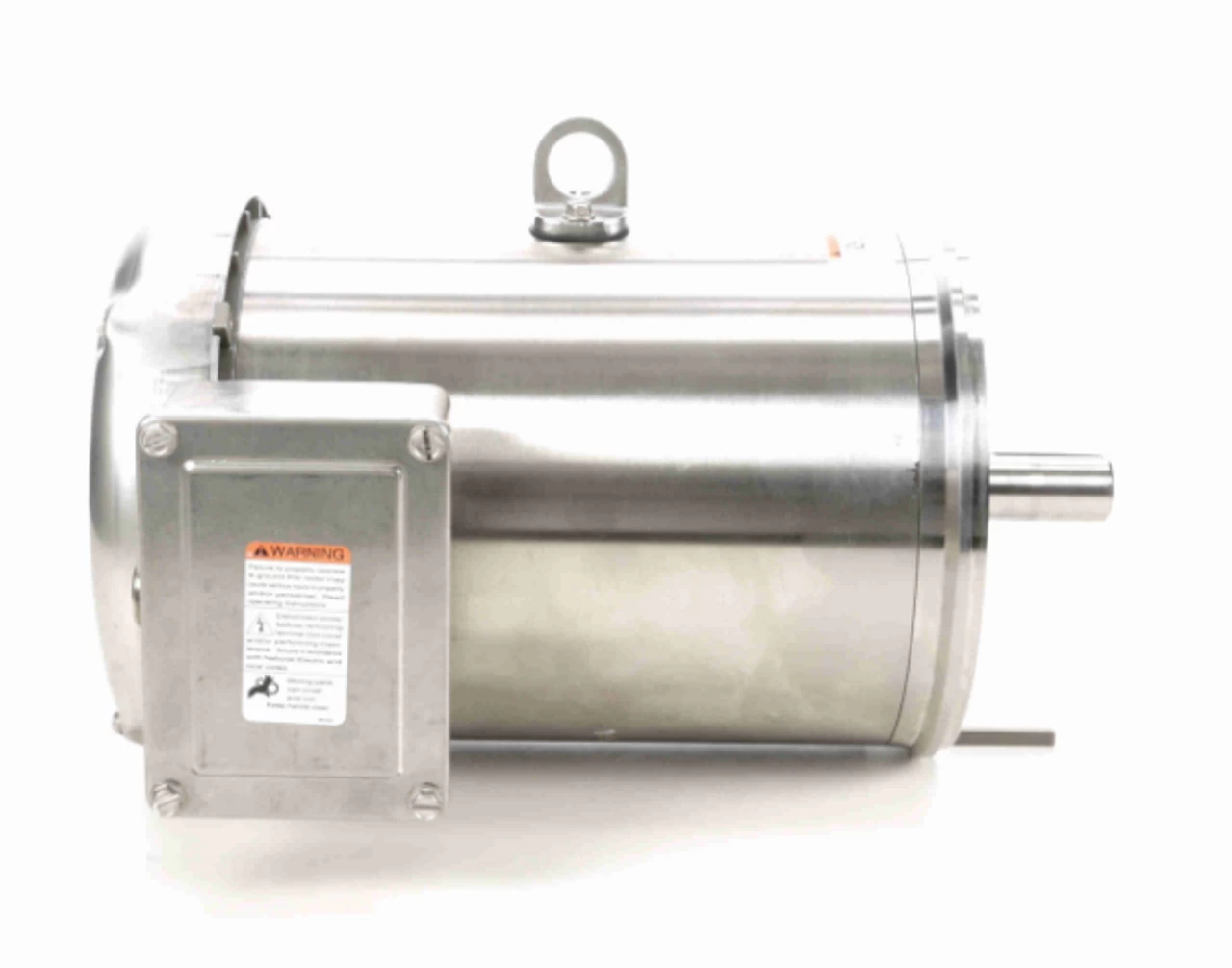

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132449.00
