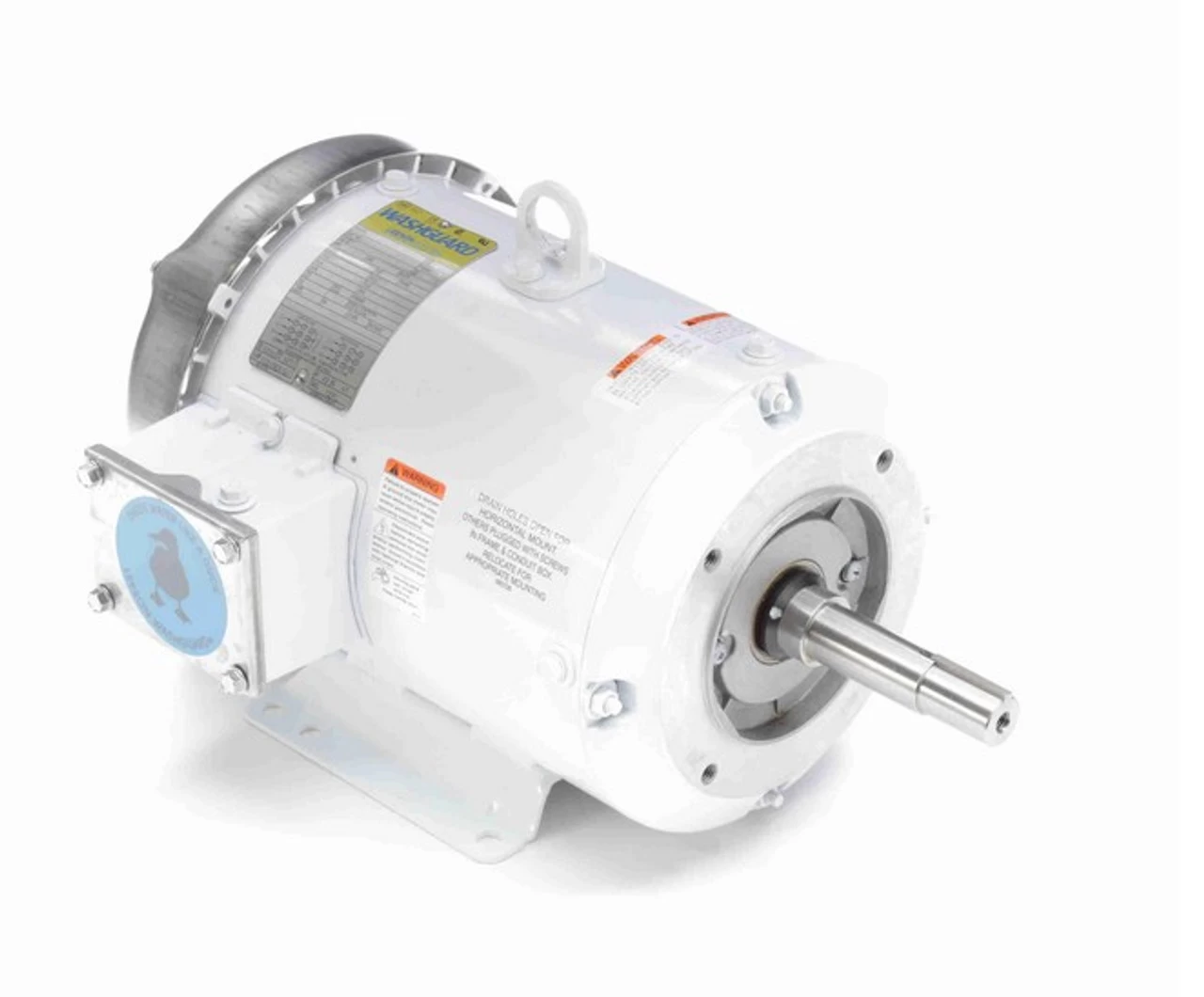

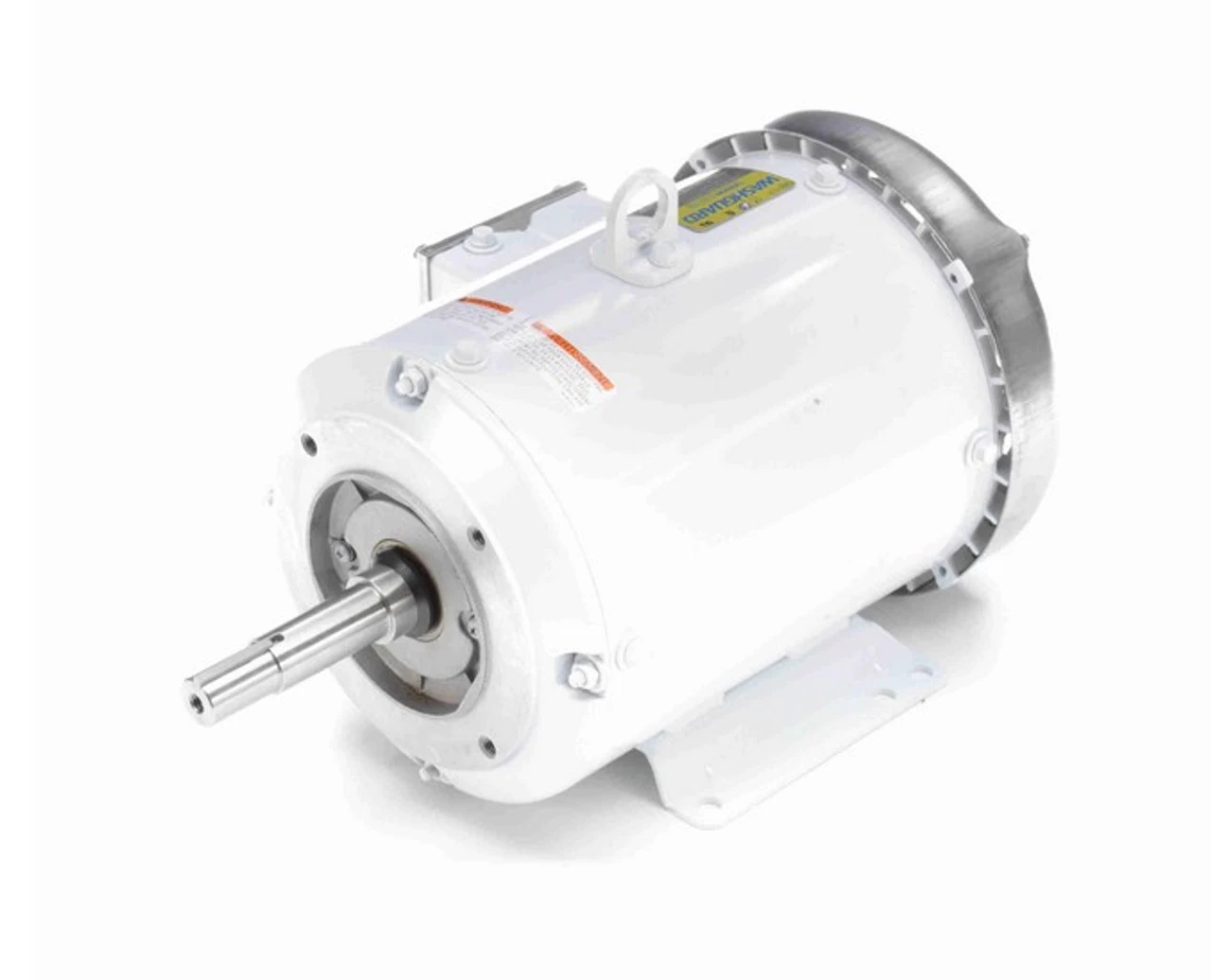

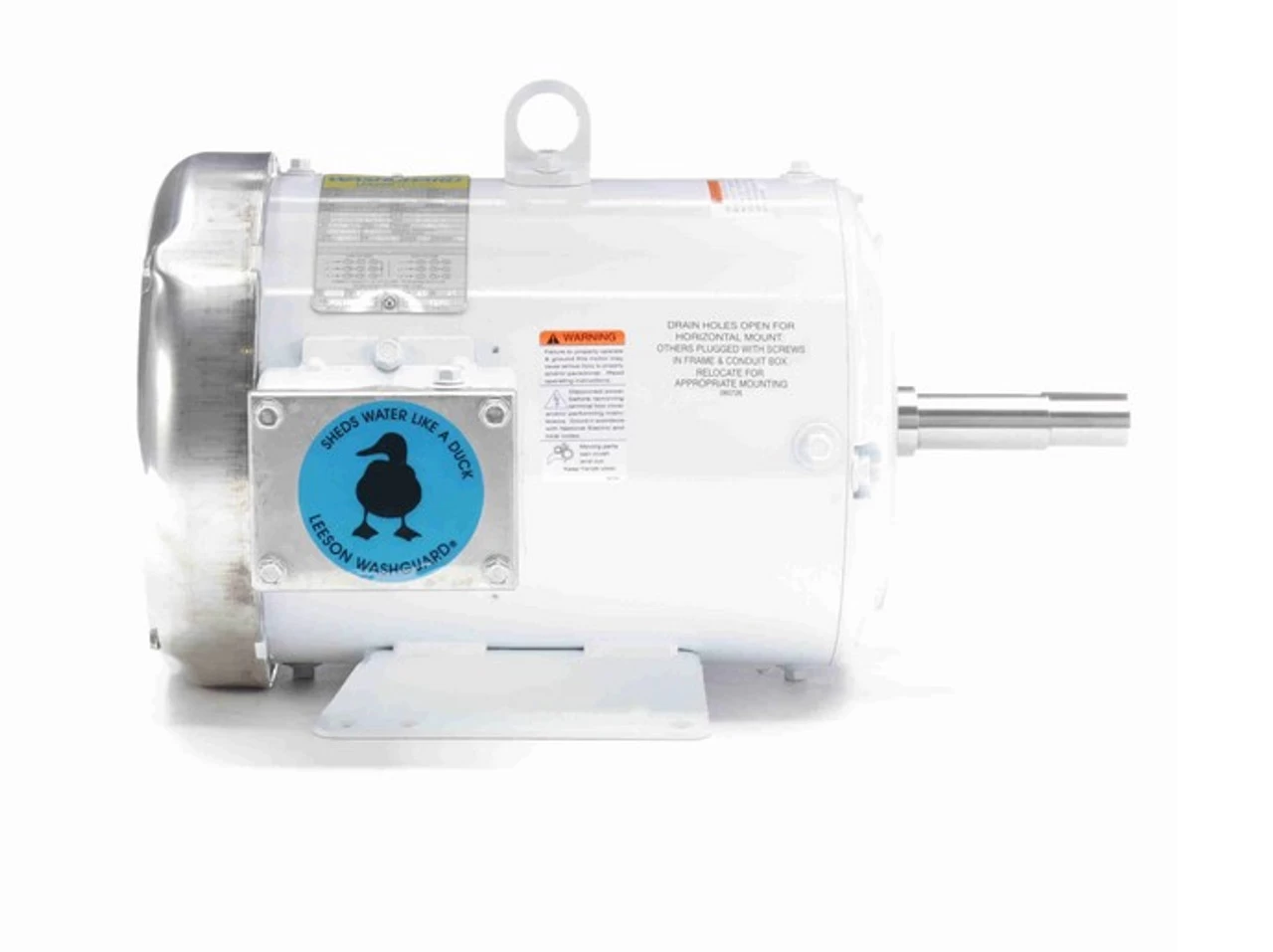

132443.00 Leeson 5 Hp 3600 RPM 208-230/460V 184JM Frame (Rigid Base) TEFC 3-Phase Wash-Down Pump Motor

• 5 hp 3600 RPM, 13.2- 12.0/ 6.0 amps 575 Volts 60 Hz. 3-Phase Motor
• NEMA 184JM Frame with JM Shaft 1 1/8″ Diameter
• Service Factor: 1.15, Overload Protection = None
• Rigid Base, Reversible, Ball Bearings – Class F Insulation
• 1 Year Manufacture Warranty

Wash Duty JM frame close-coupled pump motor with a C-face mount for use in wet and misty environments in which the pump head is attached directly to the shaft. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 132443.00
