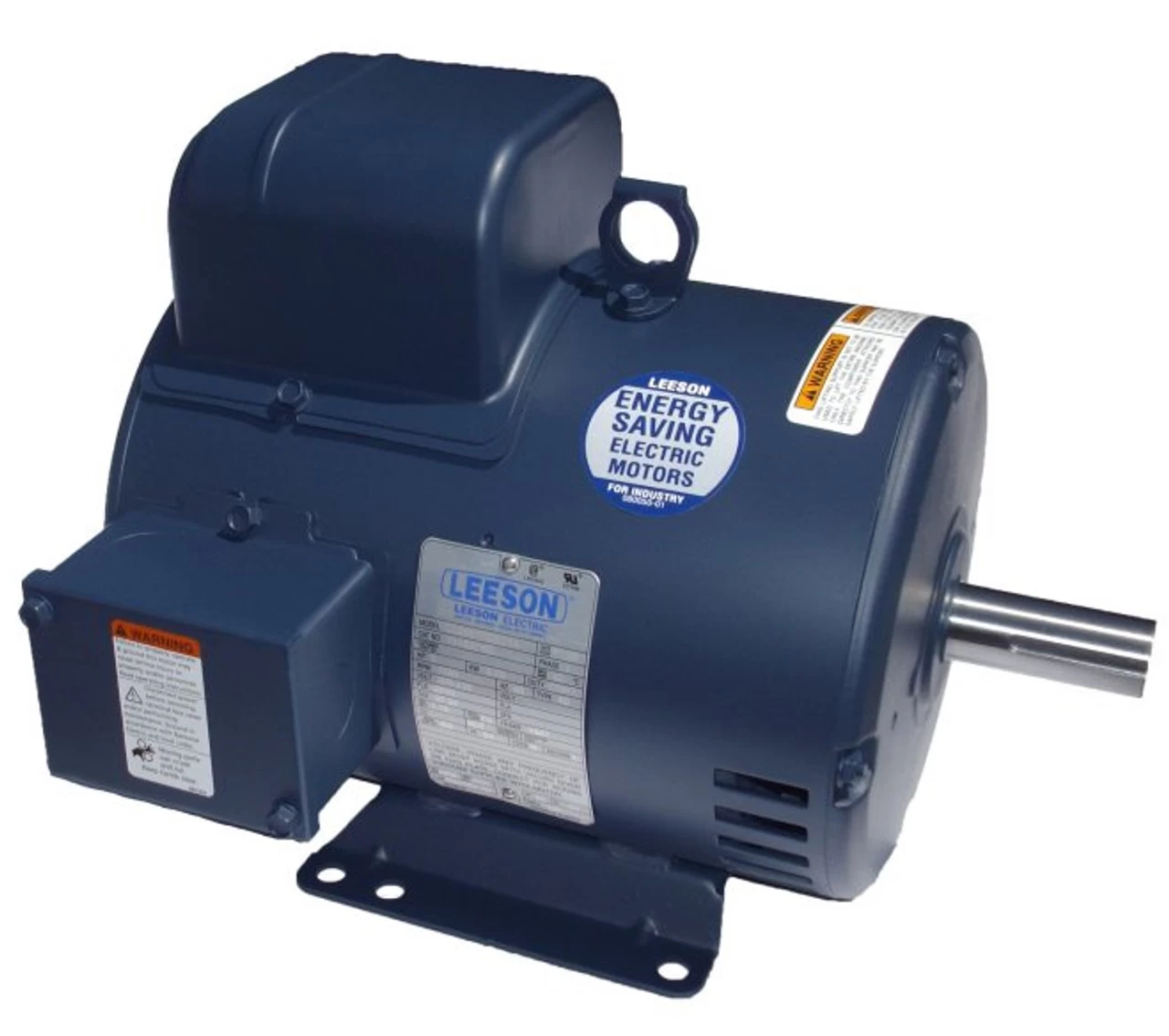

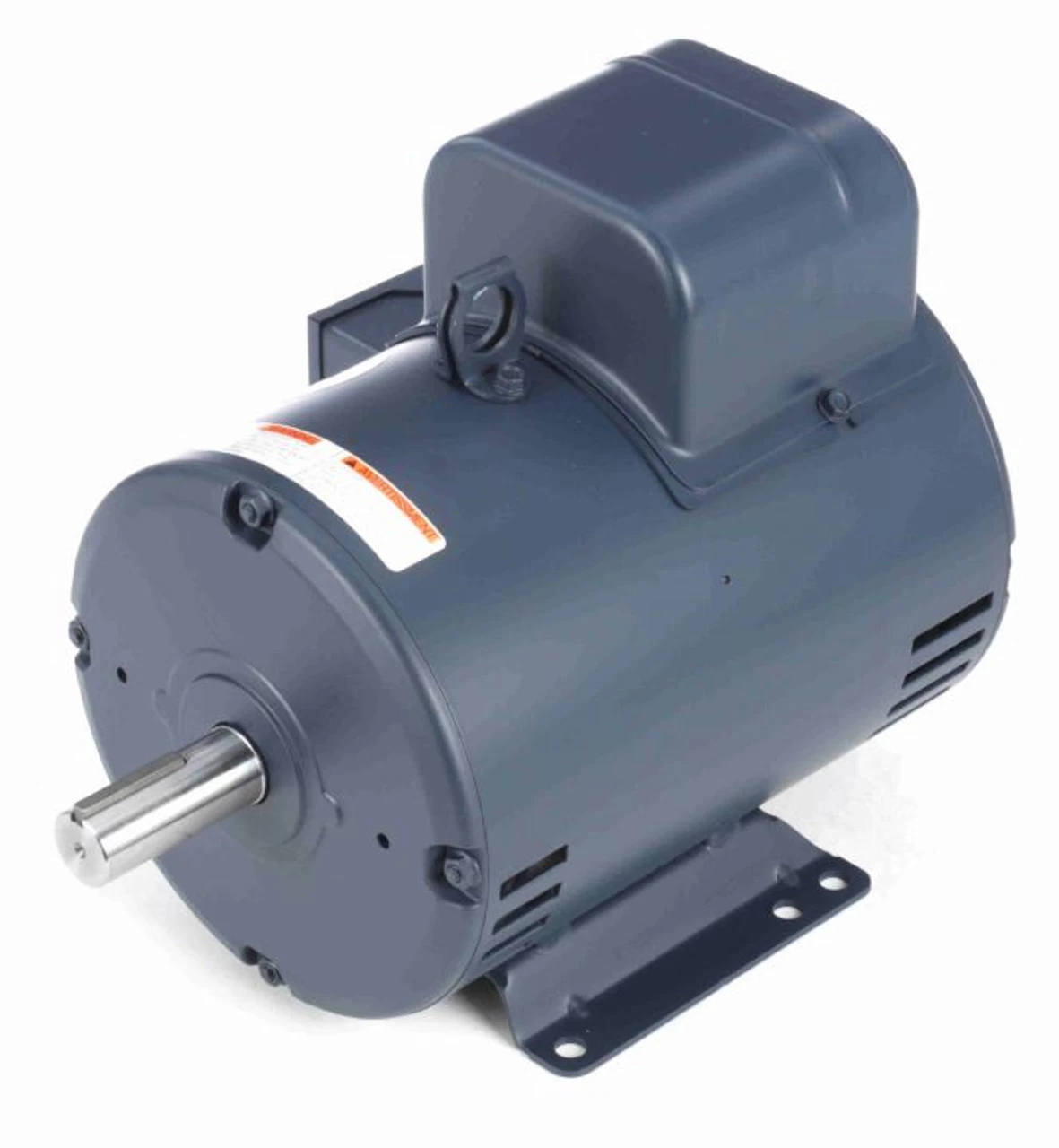

131616.00 Leeson | 5 Hp 3450 RPM 184T Frame ODP 208-230V

• 5 hp 3450 RPM, 22.0 amps, 208-230V 60hz.; Single Phase
• Open Drip Proof – Ball Bearings – Service Factor 1.15
• Ball Bearings – Electrically Reversible; No Overload Protection

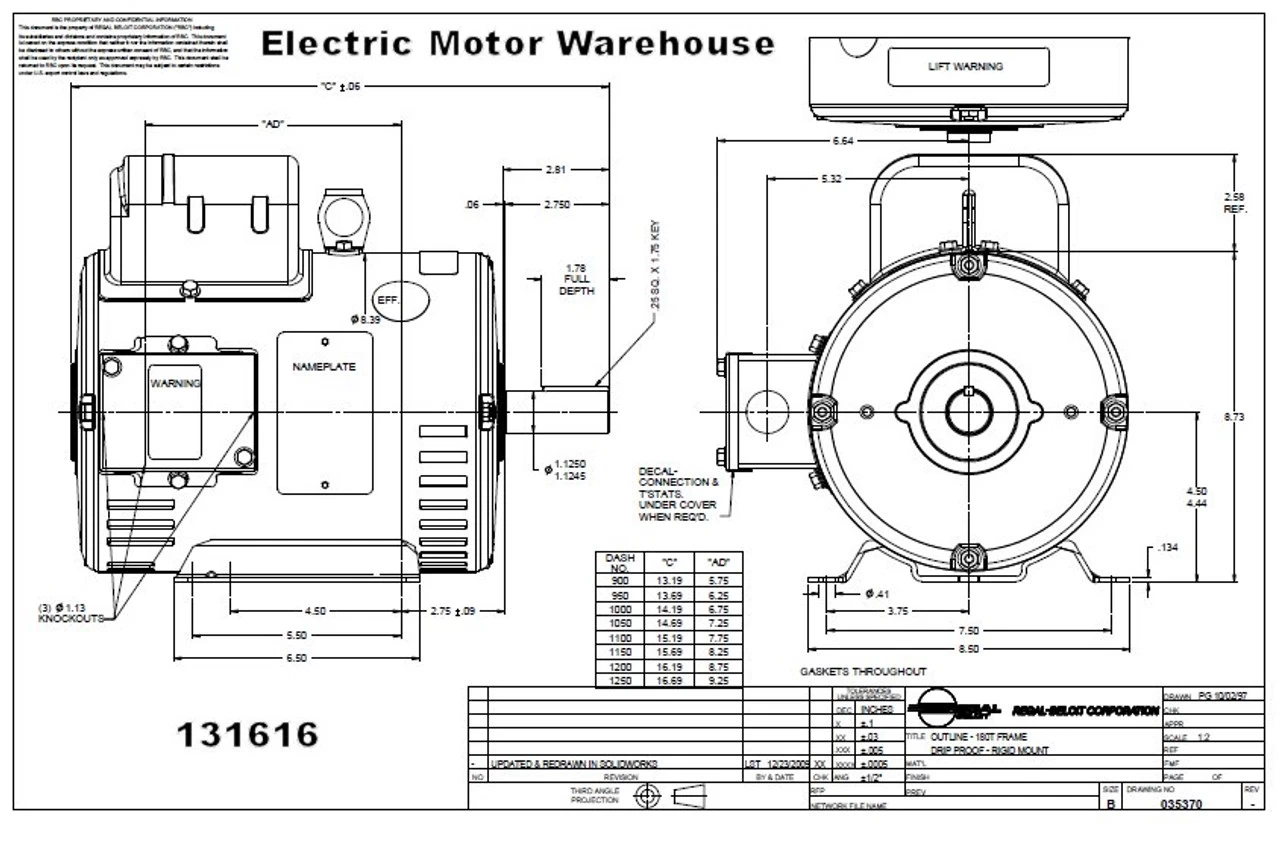

• NEMA 184T Frame – Shaft: 1 1/8″ x 2 3/4″ – Insulation class F
• Capacitor Start/Capacitor Run

Standard 5hp general purpose Electric motor. Applications: Air Compressors, sprayers and many other applications. If you need to replace a 3 phase, 5hp Electric motor to a single phase motor, this will work Fine. Motor has standard 184T flat mounting base. Overall Length = 14.69″ 1 Year manufacture warranty.

C184K34DB3B, 131616.00
