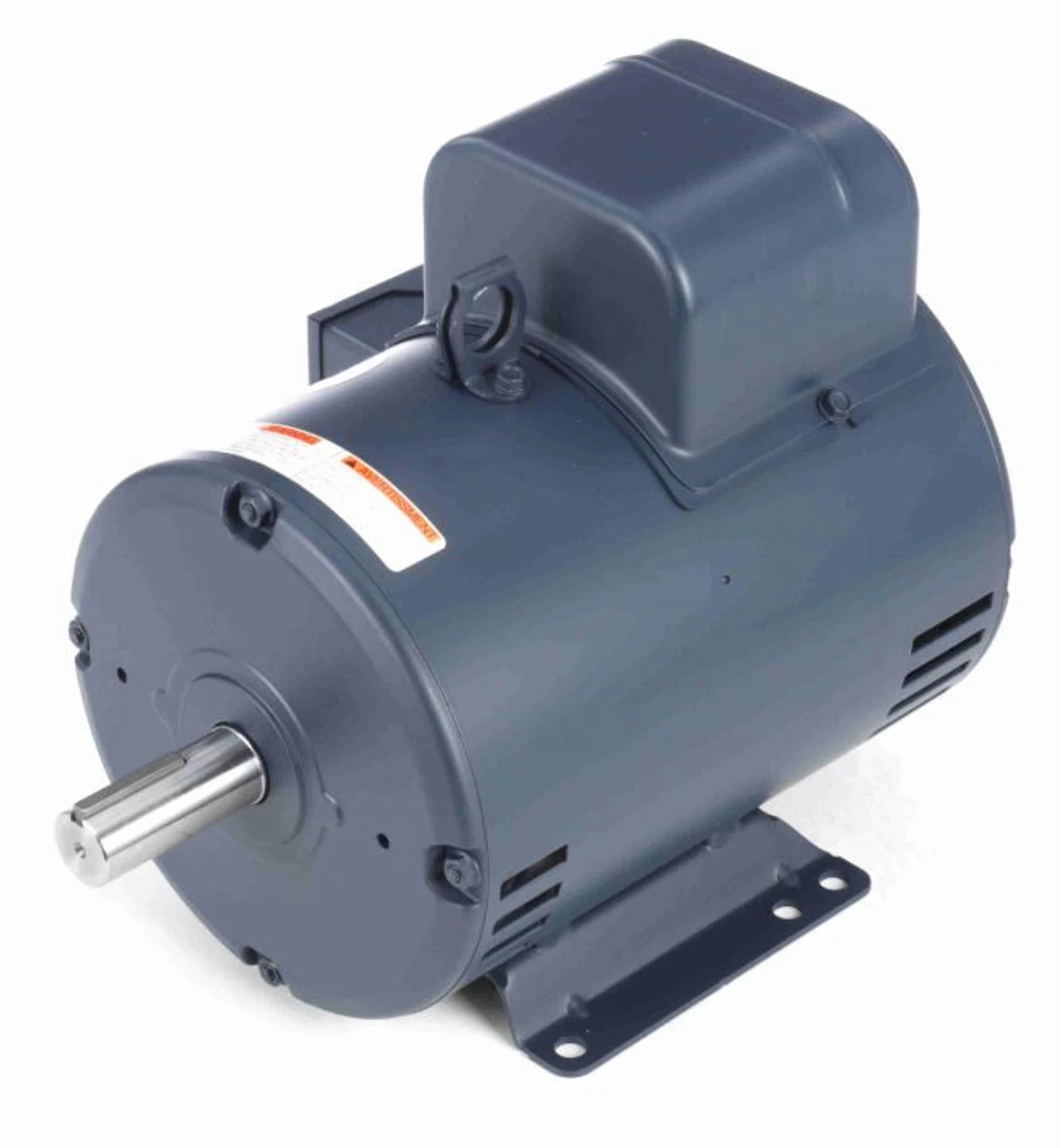

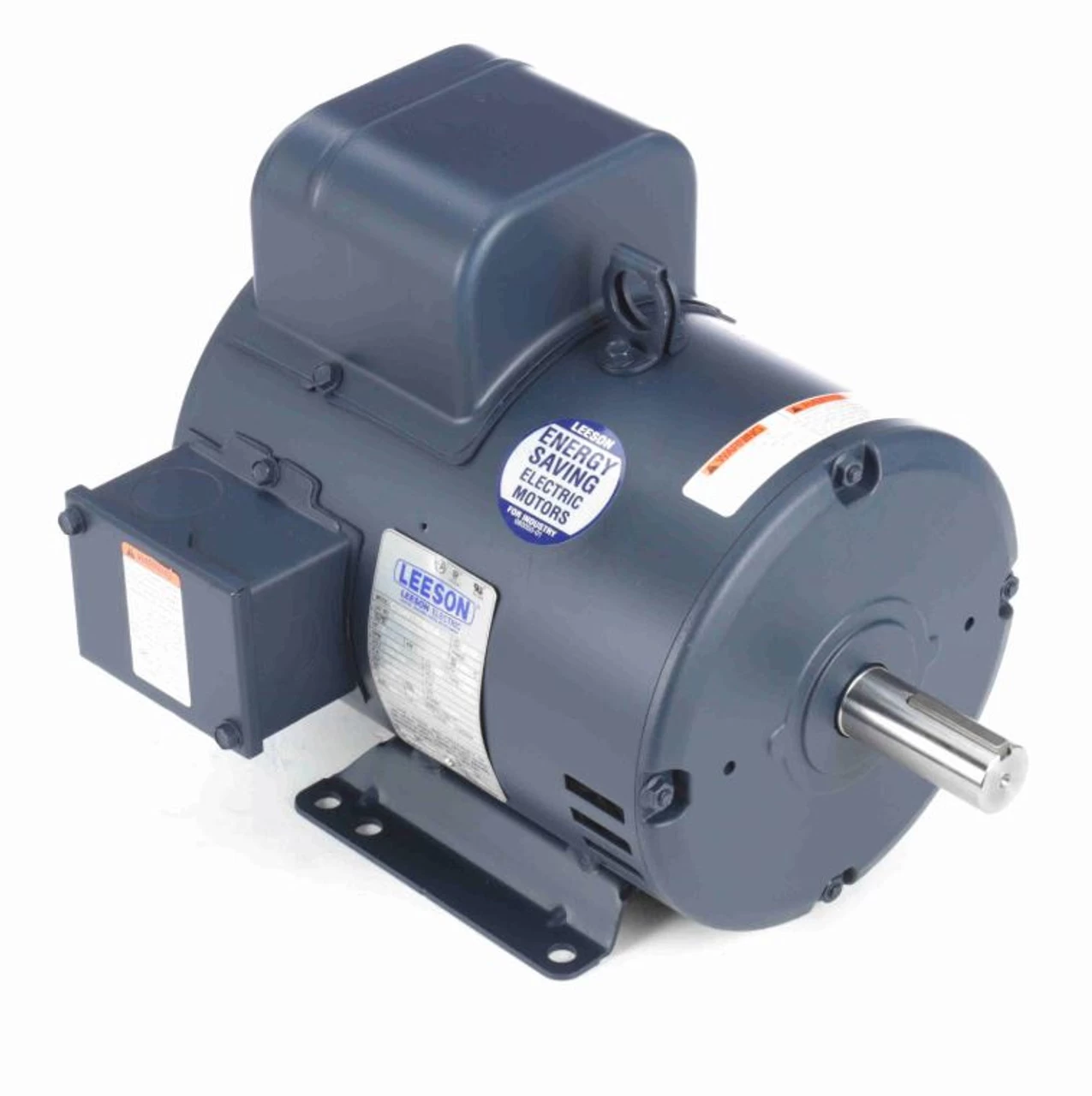

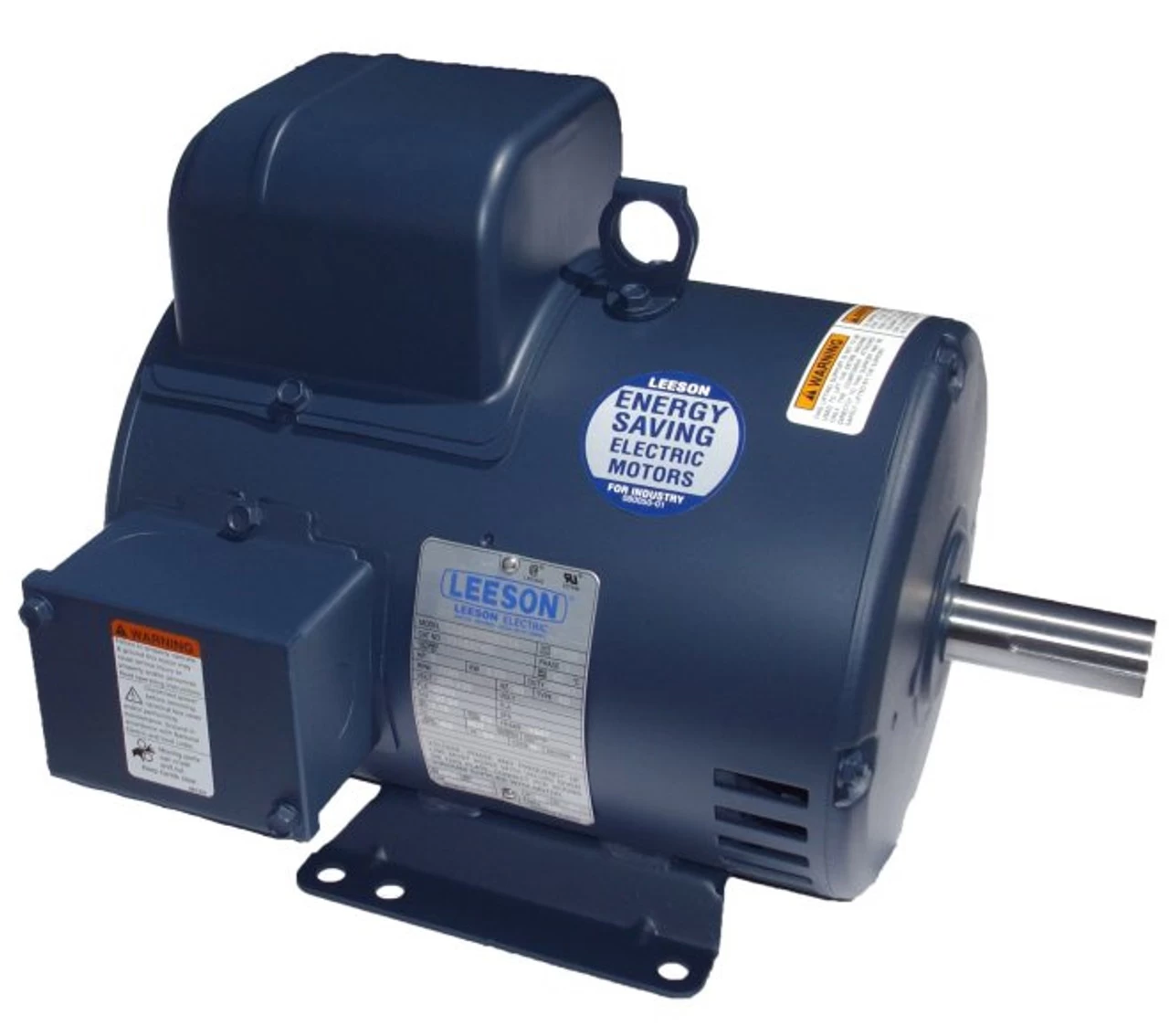

131560.00 Leeson | 5 Hp 1725 RPM 184T Frame ODP 208V

• 5 hp 1740 RPM 184T 208V, 23.2 amps 60hz.; Single Phase
• Open Drip Proof – Ball Bearings – Service Factor 1.15
• Ball Bearings – Electrically Reversible; No Overload Protection
• Class F Insulation
• NEMA 184T Frame – Shaft: 1 1/8″ x 2 3/4″
• Capacitor Start/Capacitor Run

This motor ships via Freight Truck, cannot ship direct to a residential address

208 Voltage only!
Standard 5 hp general purpose Electric motor. Applications: Air Compressors, sprayers and many other applications. Motor has standard 184T flat mounting base. Overall Length = 14.69″. 1 Year manufacture warranty.

Replaces Century V209, V209M2, Dayton 48Y884. Model C184K17DB32A; 131560.00
