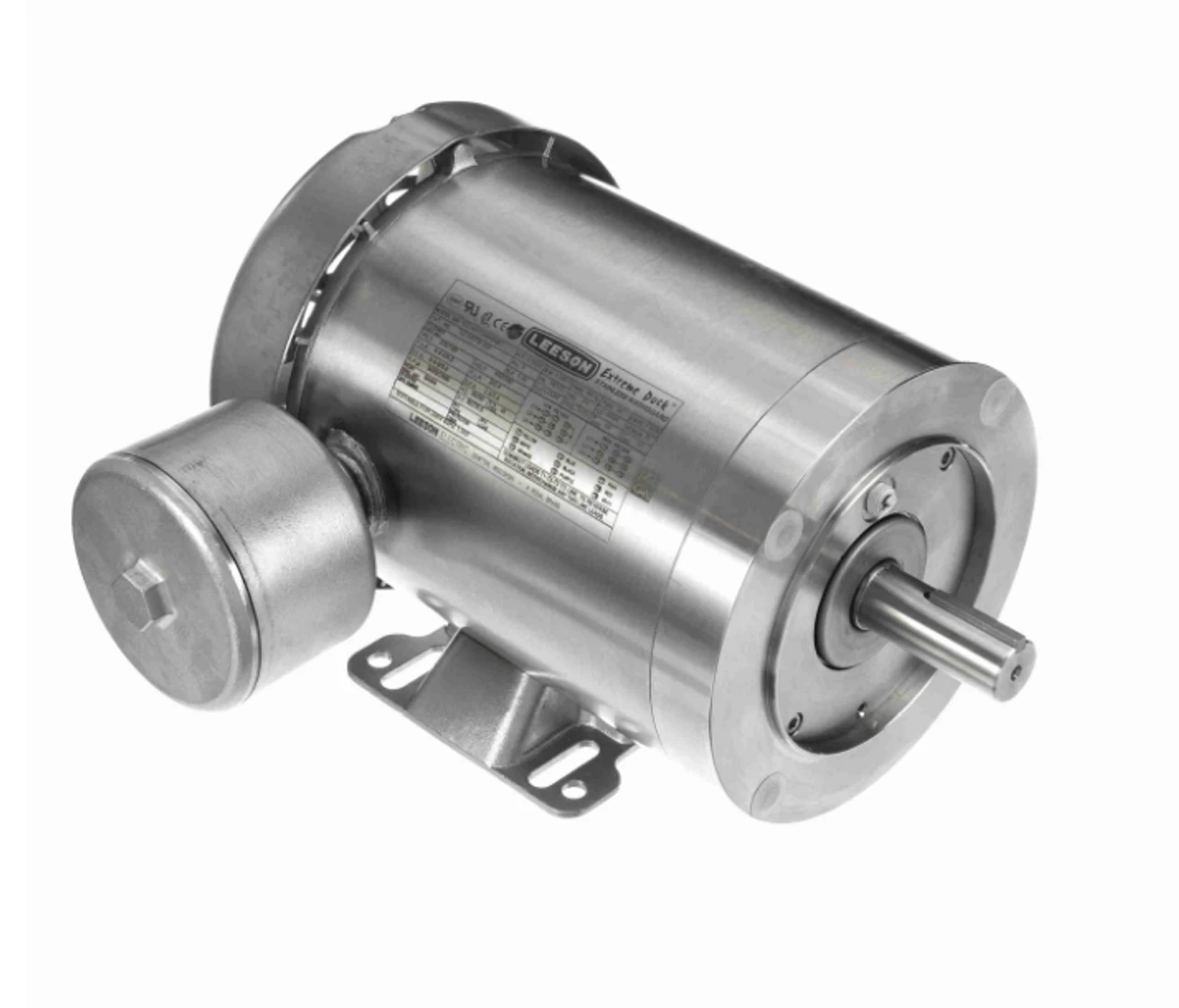

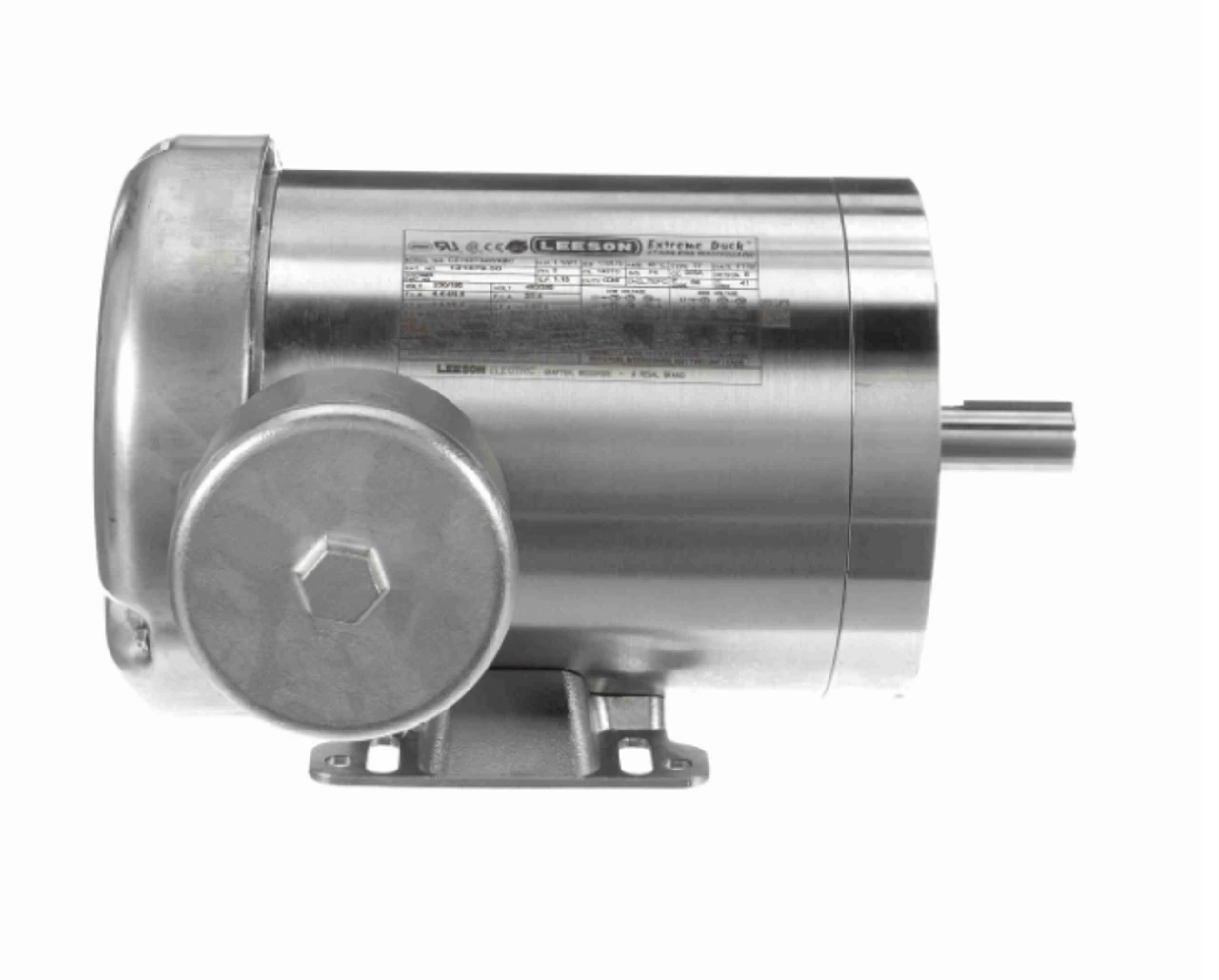

121879.00 Leeson Extreme Duck 1 1/2 Hp 3600 RPM 230/460V 3-Phase 143TC Frame TEFC (base) Motor

• 1 1/2 hp 3600 RPM, 4.0/2.0 amps 230/460 Volts 60 Hz. Three Phase
• NEMA 143TC frame, C-face, Stainless Steel Keyed Shaft 7/8″ Diameter x 2 1/8″
• Service Factor: 1.15, Overload protection = None
• Rigid Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 121879.00
