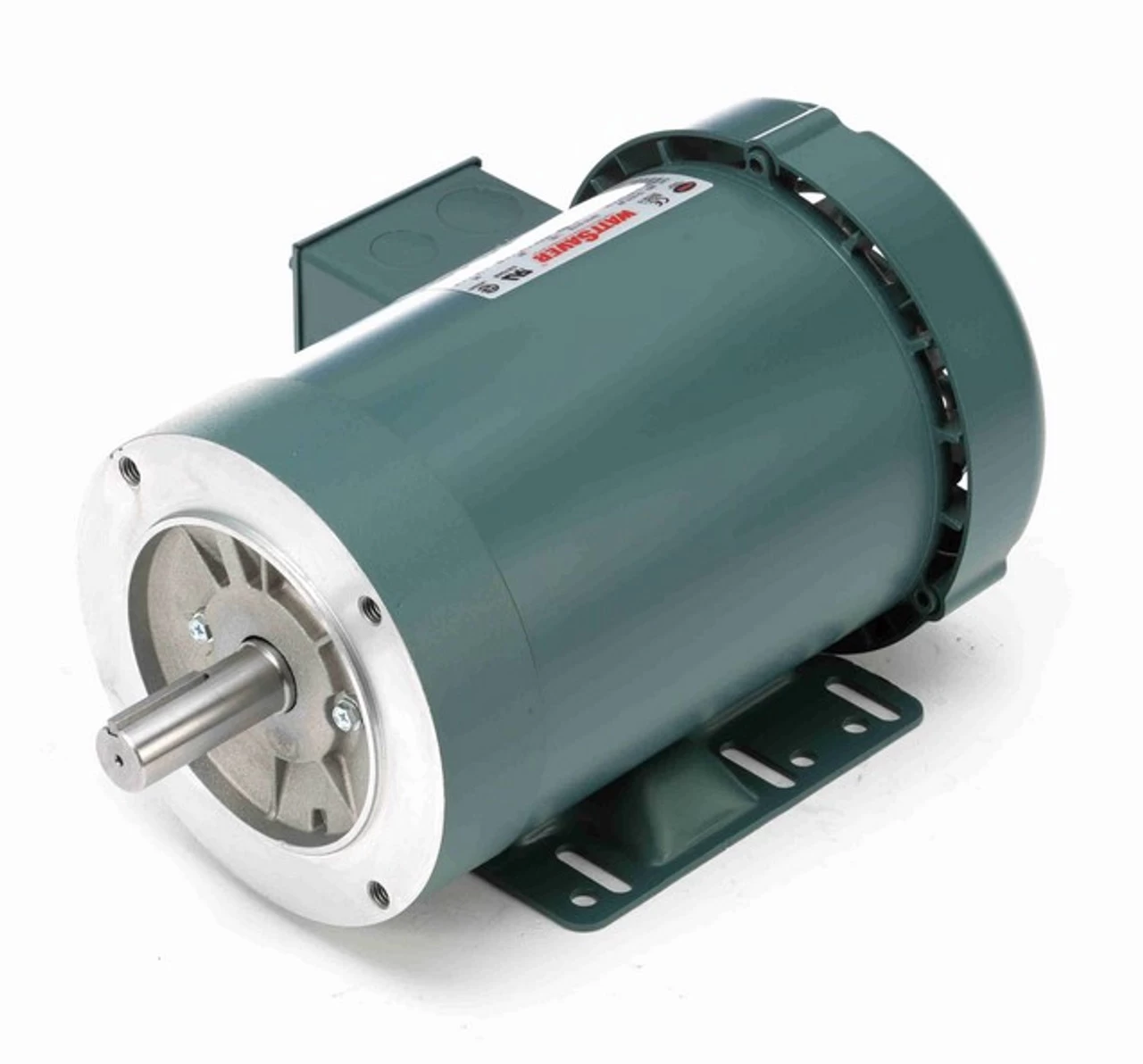

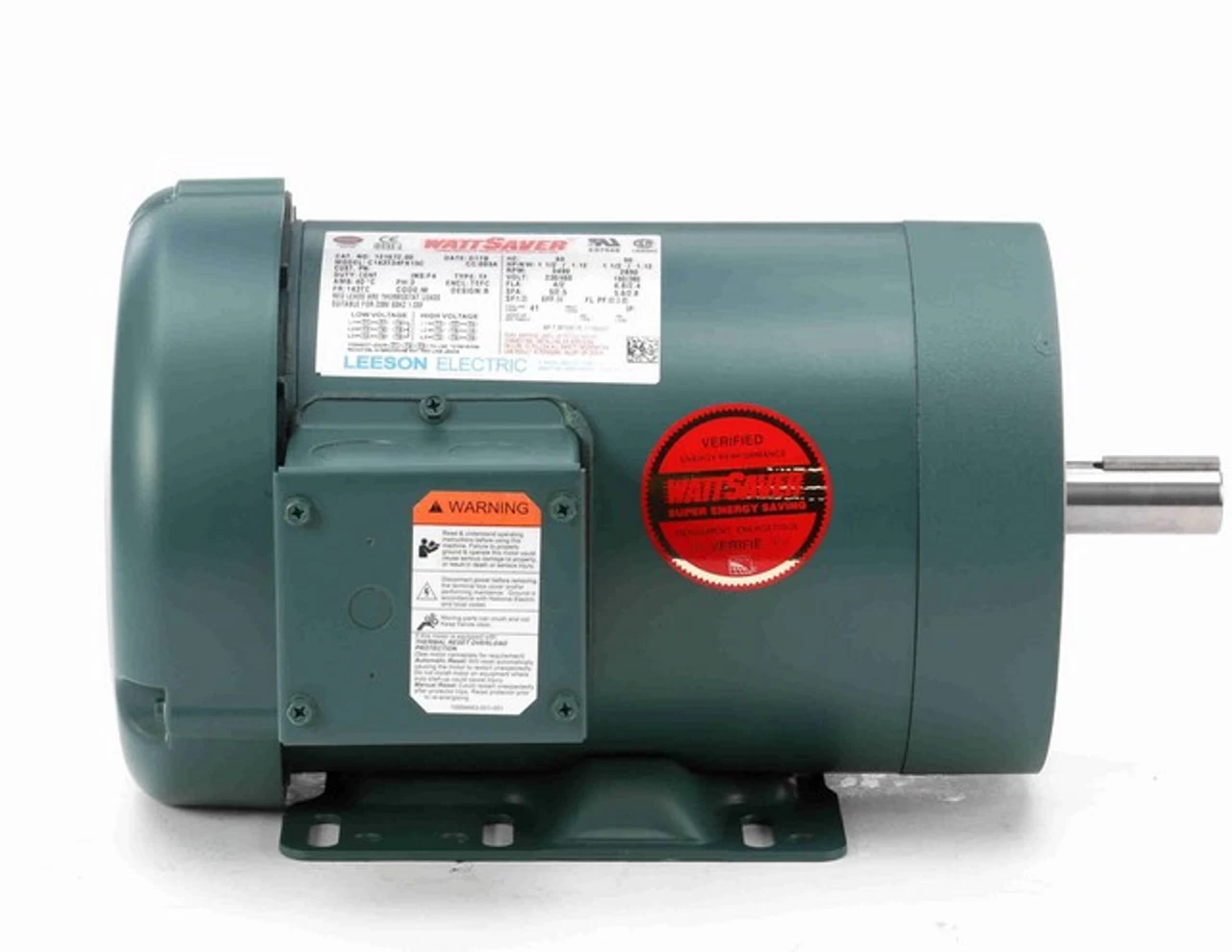

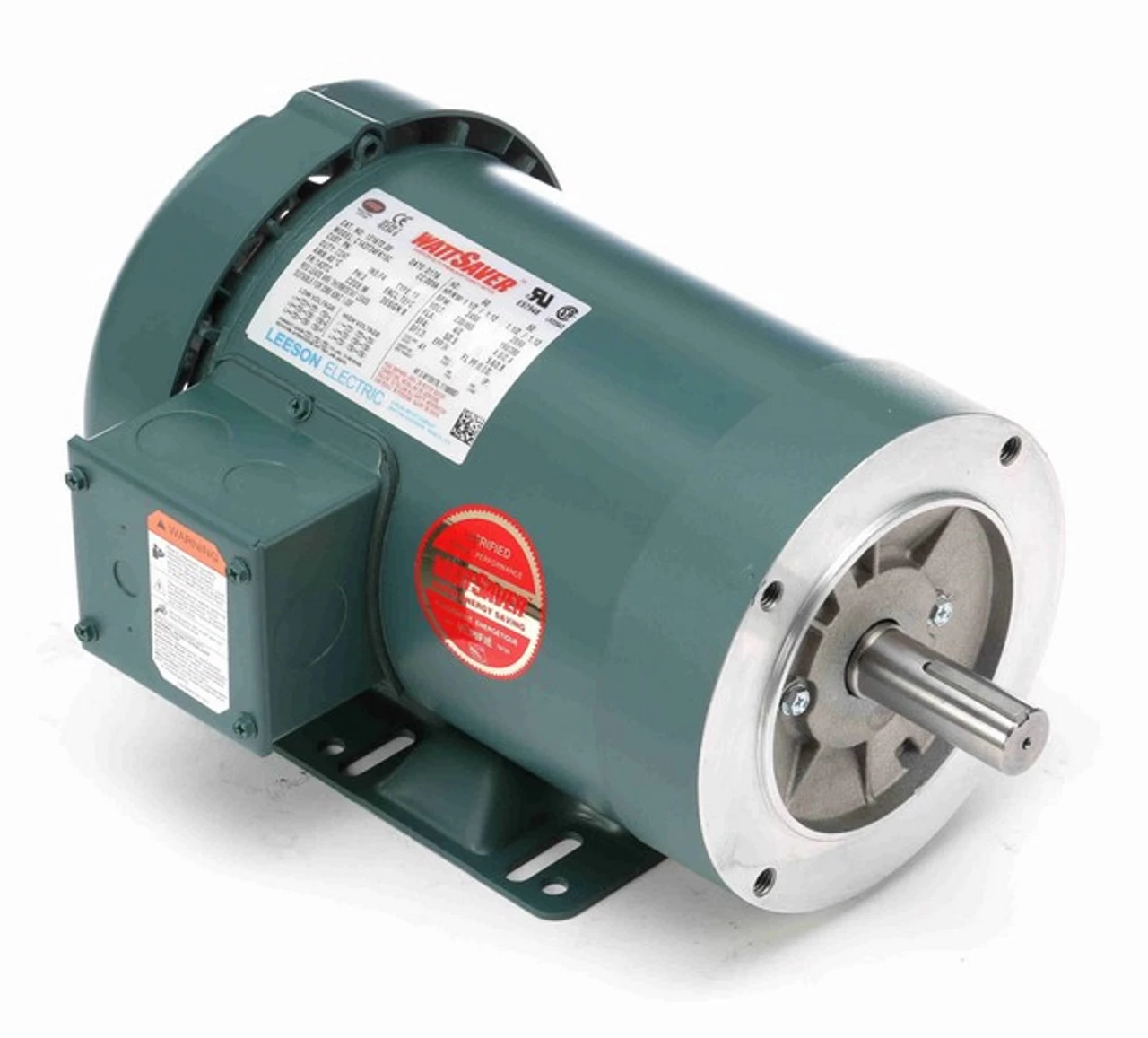

121672.00 Leeson 1 1/2 Hp 3600 RPM 230/460V 143TC Frame TEFC C-Face (with Base) 3-Phase Motor
Original price was: $375.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1 1/2 hp 3600 RPM, 4.0/2.0 amps 230/460 Volts 60 Hz. Three Phase Motor
- NEMA 143C Frame Keyed Shaft 7/8″ Diameter x 2 1/4″
- Service Factor: 1.25, Overload Protection = Thermostat
- Rigid Base, Reversible, Ball Bearings – Class F Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.121672.00
