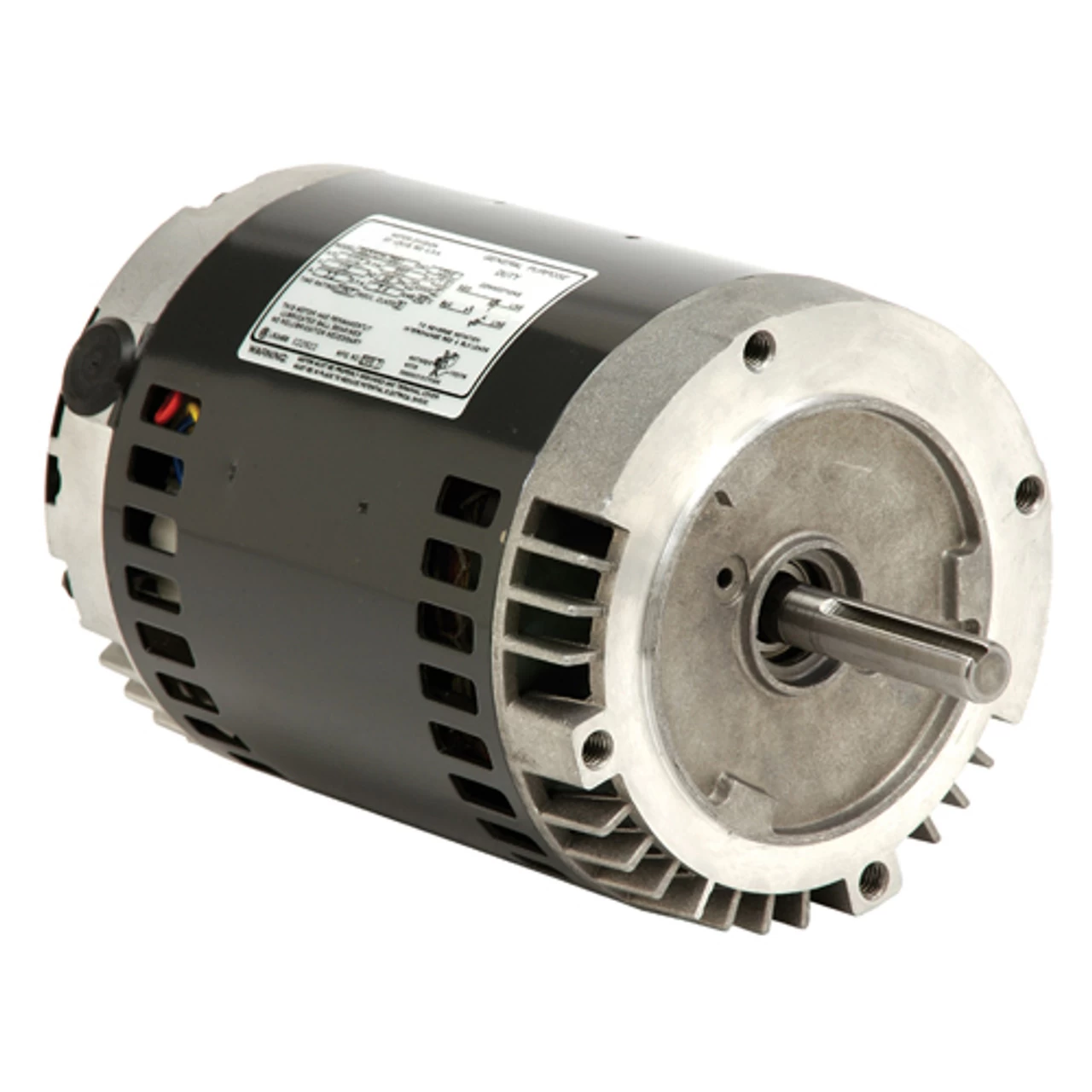

1208 Nidec 1/3 HP 850 RPM 115V 56CZ Frame ODPAO Fan Motor
Original price was: $383.00.$95.99Current price is: $95.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 1/3 hp 850 RPM (1 speed), 9.0 amps 115V Volts 60 Hz Split Phase Motor
- 5.6″ Dia. Frame, Rolled Steel, Keyed Shaft 5.8″ Diameter x 2 3/8″
- Service Factor = 1.35, Overload Protection: Auto
- C-Face Mount, Ball Bearings, Class B Insulation, Reversible Rotation
- 1 Year Manufacture Warranty
Direct drive blower motor having a C-Face mount. Wiring diagram on motor name plate. ODPAO = Open Drip-Proof Air Over, S063TCS7885012B
