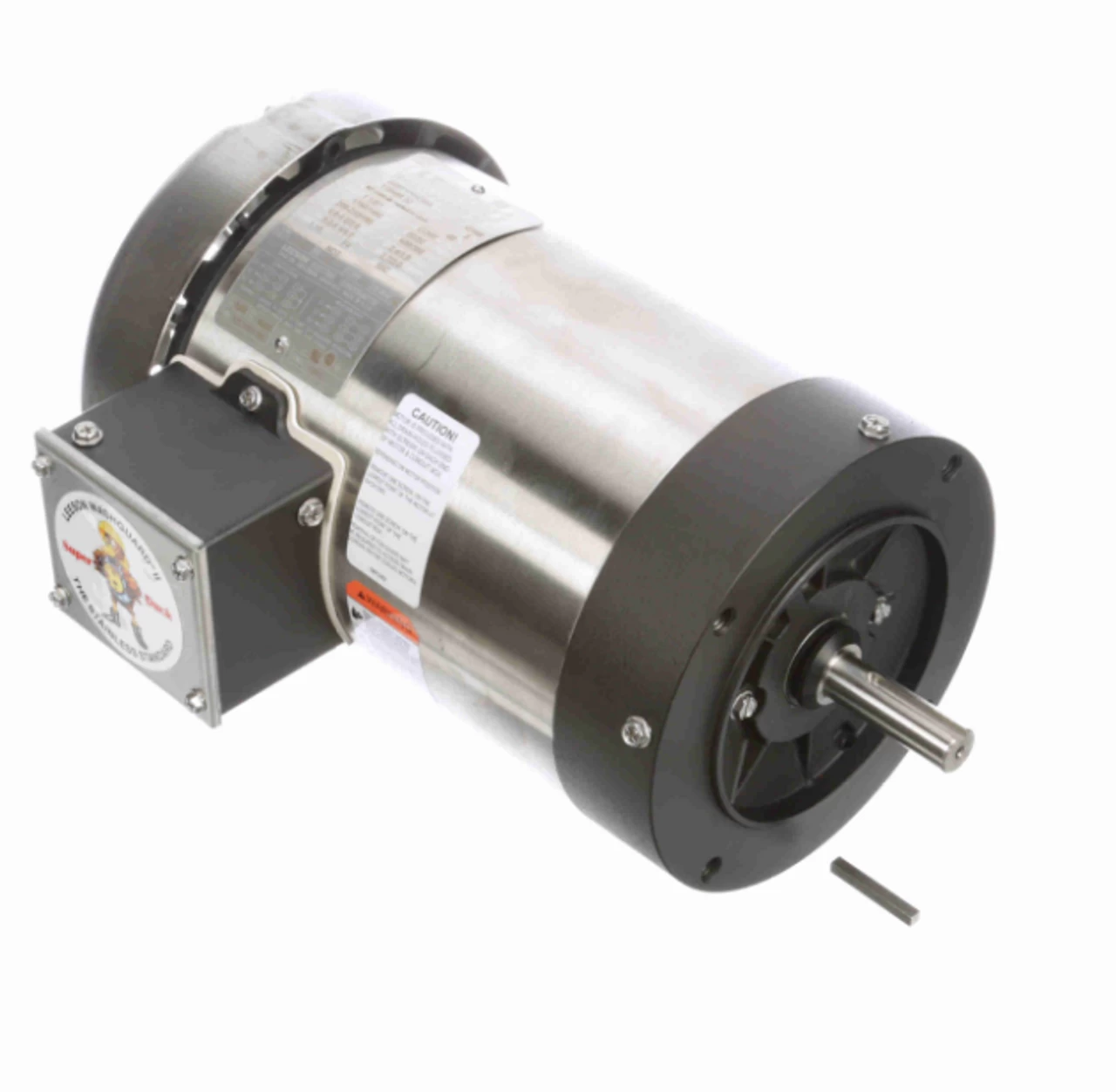

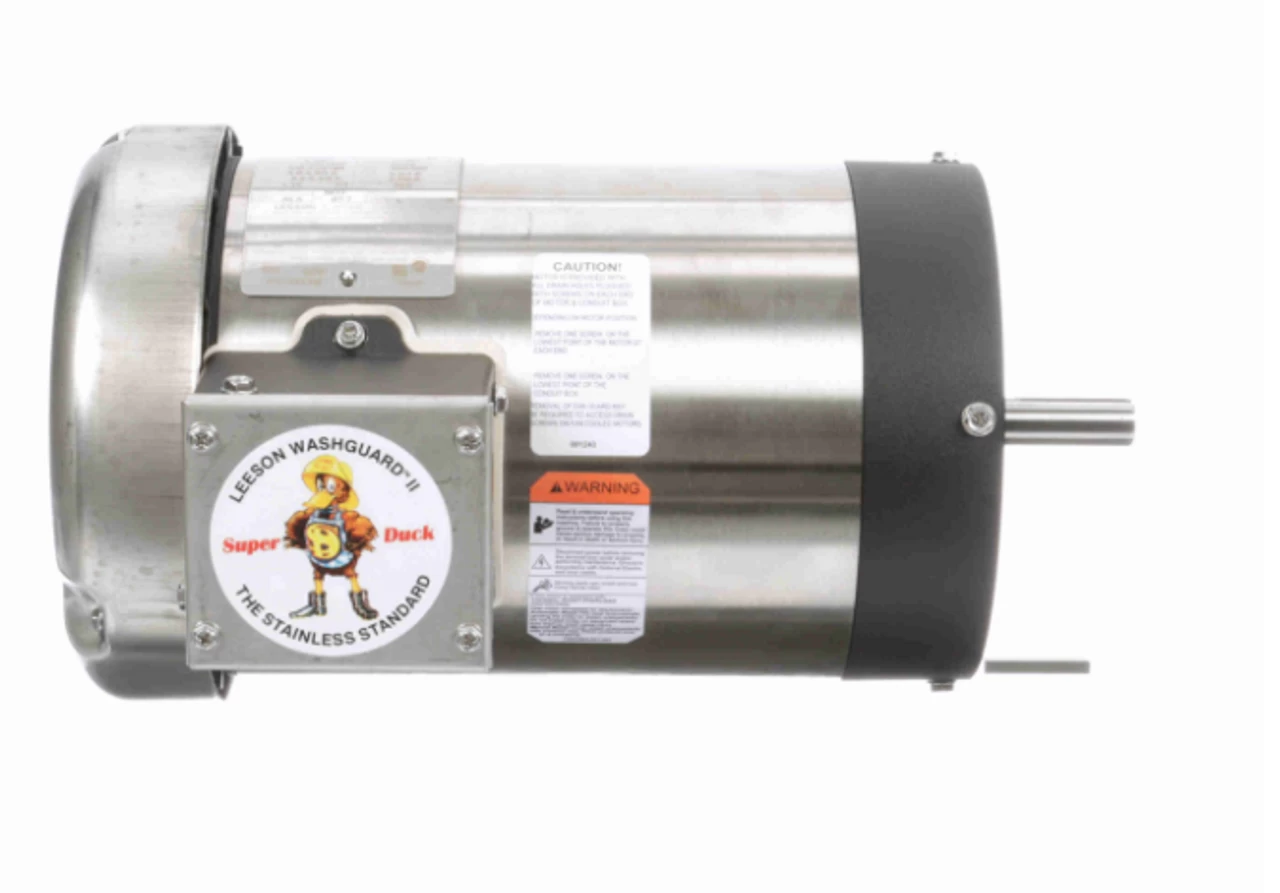

119488.00 Leeson Washguard 1 1/2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TEFC (no Base) Motor

119488.00 Leeson Washguard 1 1/2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TEFC (no Base) Motor - Image 2

119488.00 Leeson Washguard 1 1/2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TEFC (no Base) Motor - Image 3

119488.00 Leeson Washguard 1 1/2 Hp 1800 RPM 208-230/460V 3-Phase 56C Frame TEFC (no Base) Motor

Original price was: $336.00.Current price is: $95.99.

SKU: ZWXLY 1698655114 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Leeson/Marathon

The best quality products, always.
Best price, safe shopping guarantee
Protect Your Information, Shop with Safe Payments
Safe Shopping Guaranteed

Description
Reviews (0)

1 1/2 hp 1800 RPM, 4.6-4.8/2.4 amps 208-230/460 Volts 60 Hz. Three Phase
NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
No Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty,

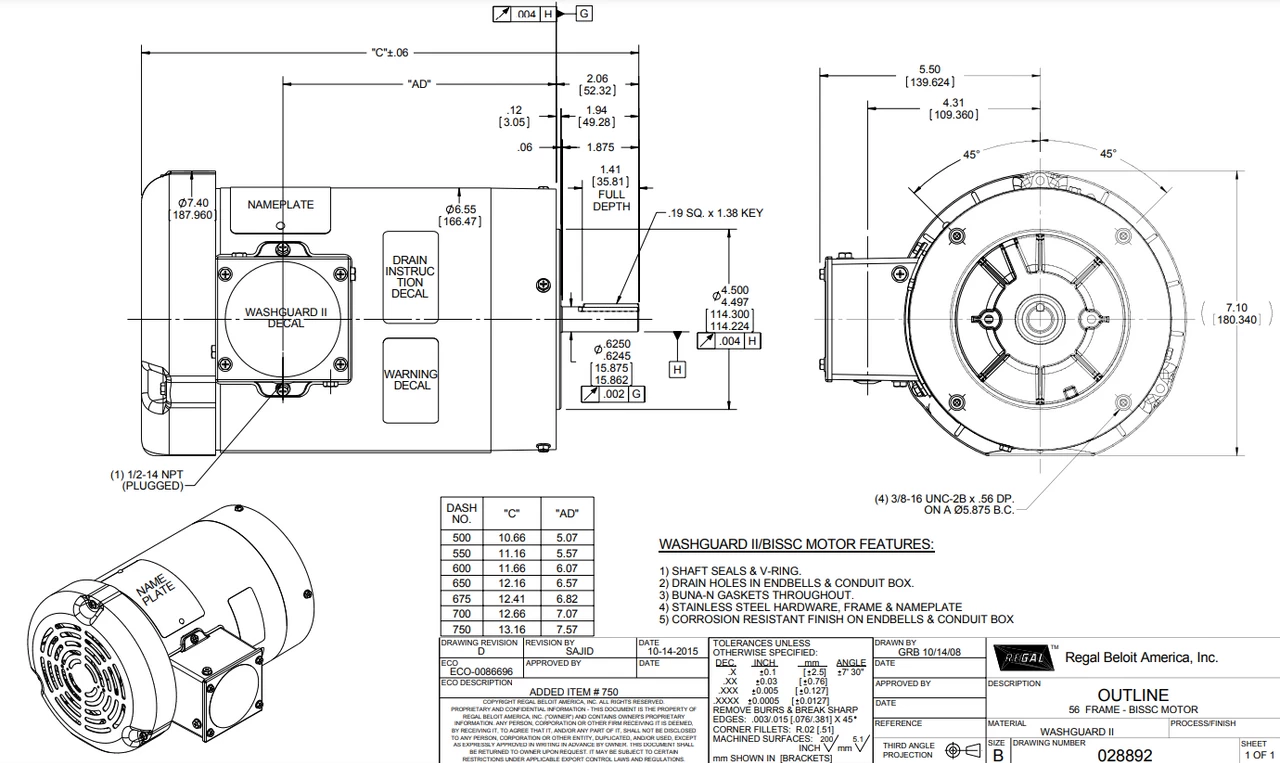

Full stainless steel exterior promotes resistance to water and chemical corrosion. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119488.00
