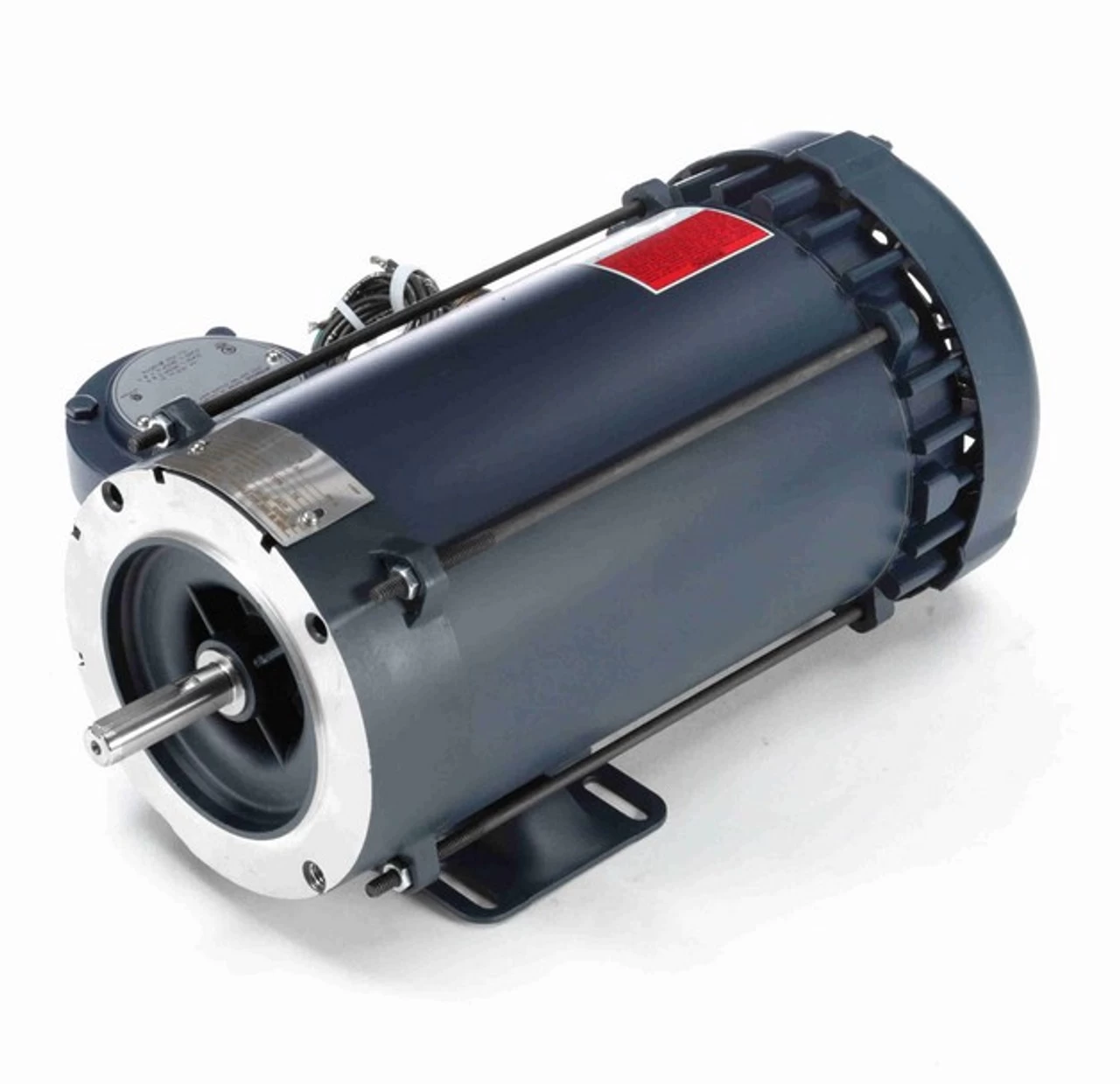

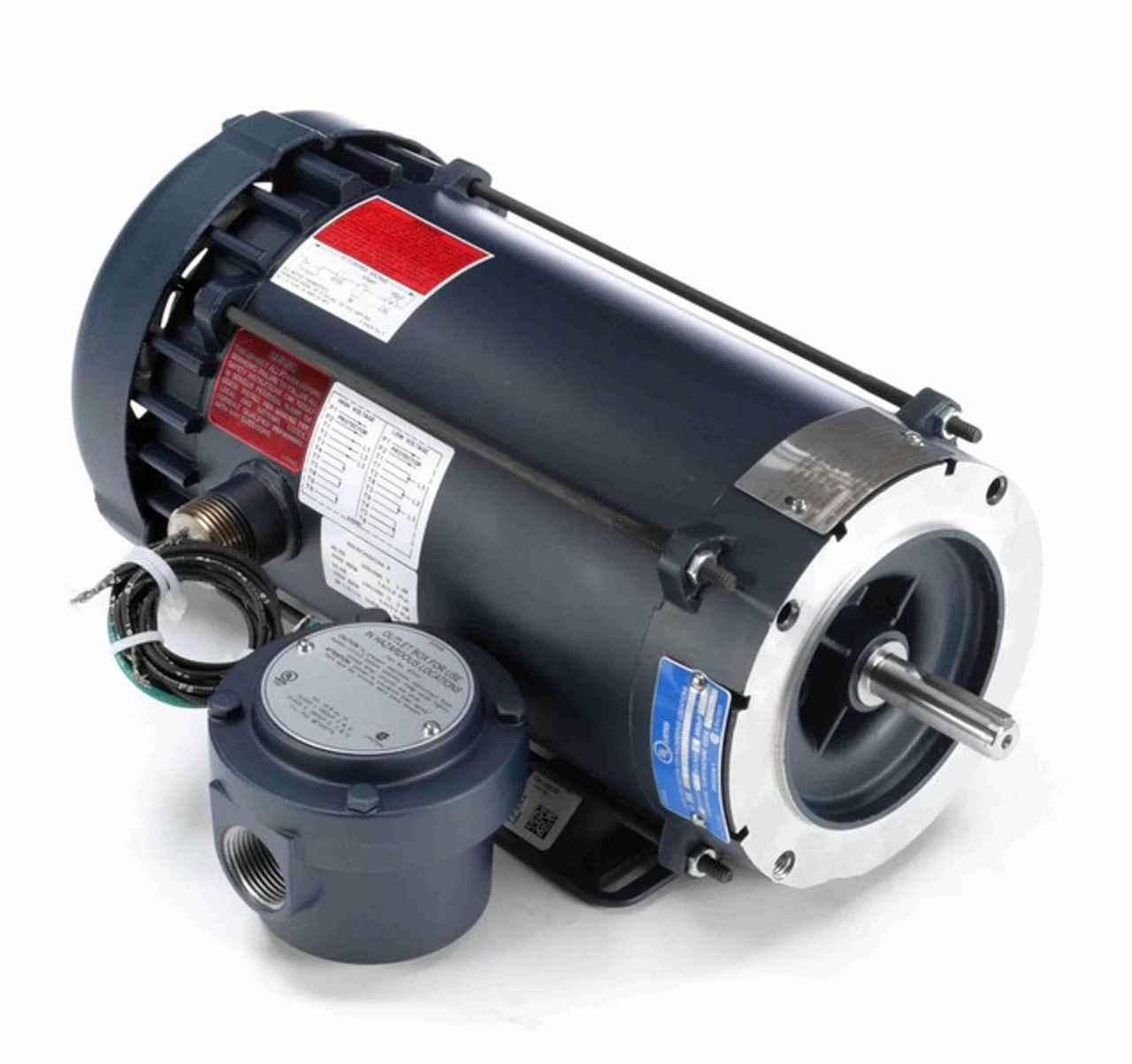

119443.00 Leeson 3 Hp 3600 RPM 230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor

• 3 hp 3600 RPM, 7.6/3.8 amps 230/460 Volts 60 Hz. 3-Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.0, Overload Protection = Thermostat
• Rigid Base, Reversible, Ball Bearings – Class B Insulation
• 1 Year Manufacture Warranty

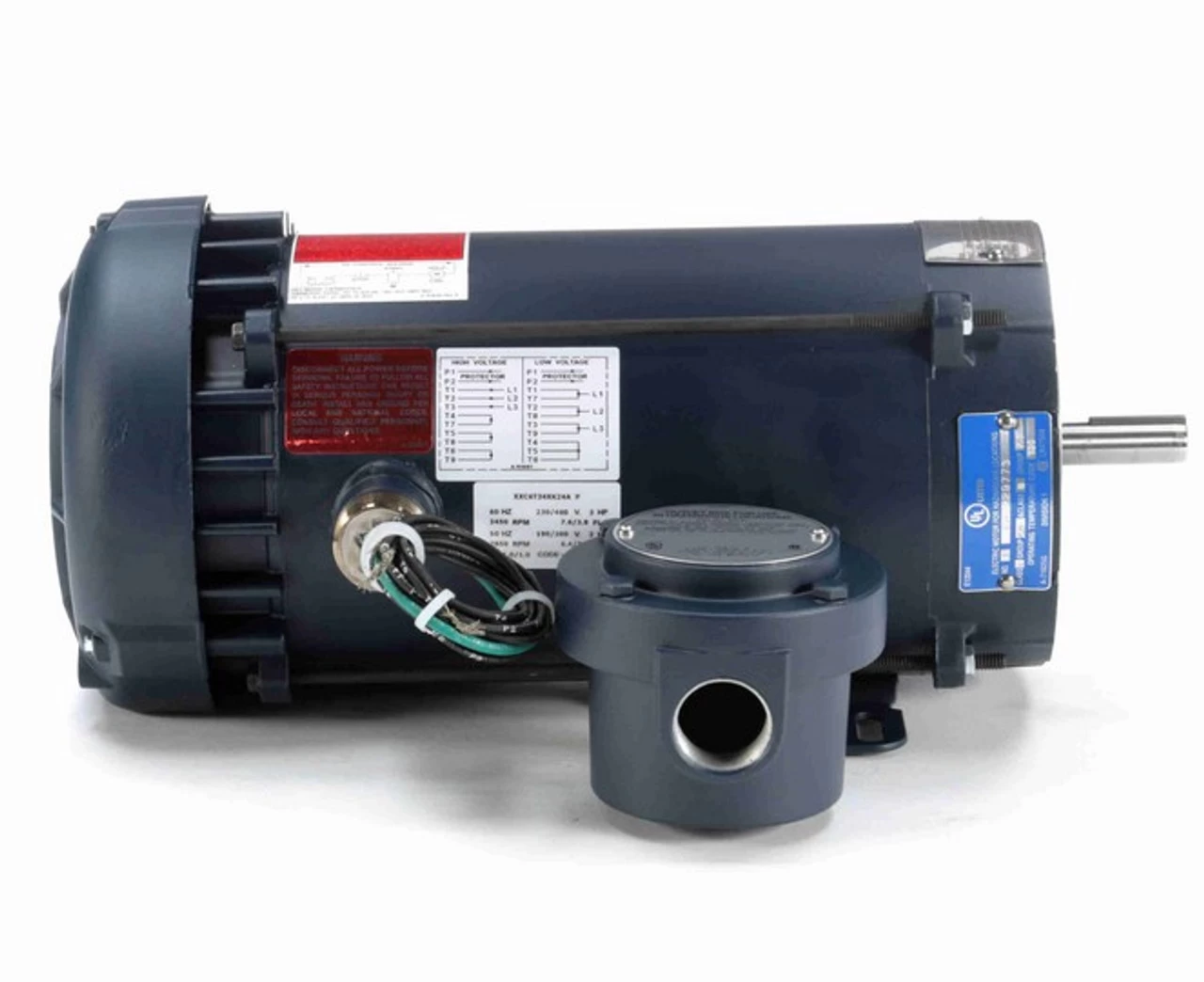

Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119443.00
