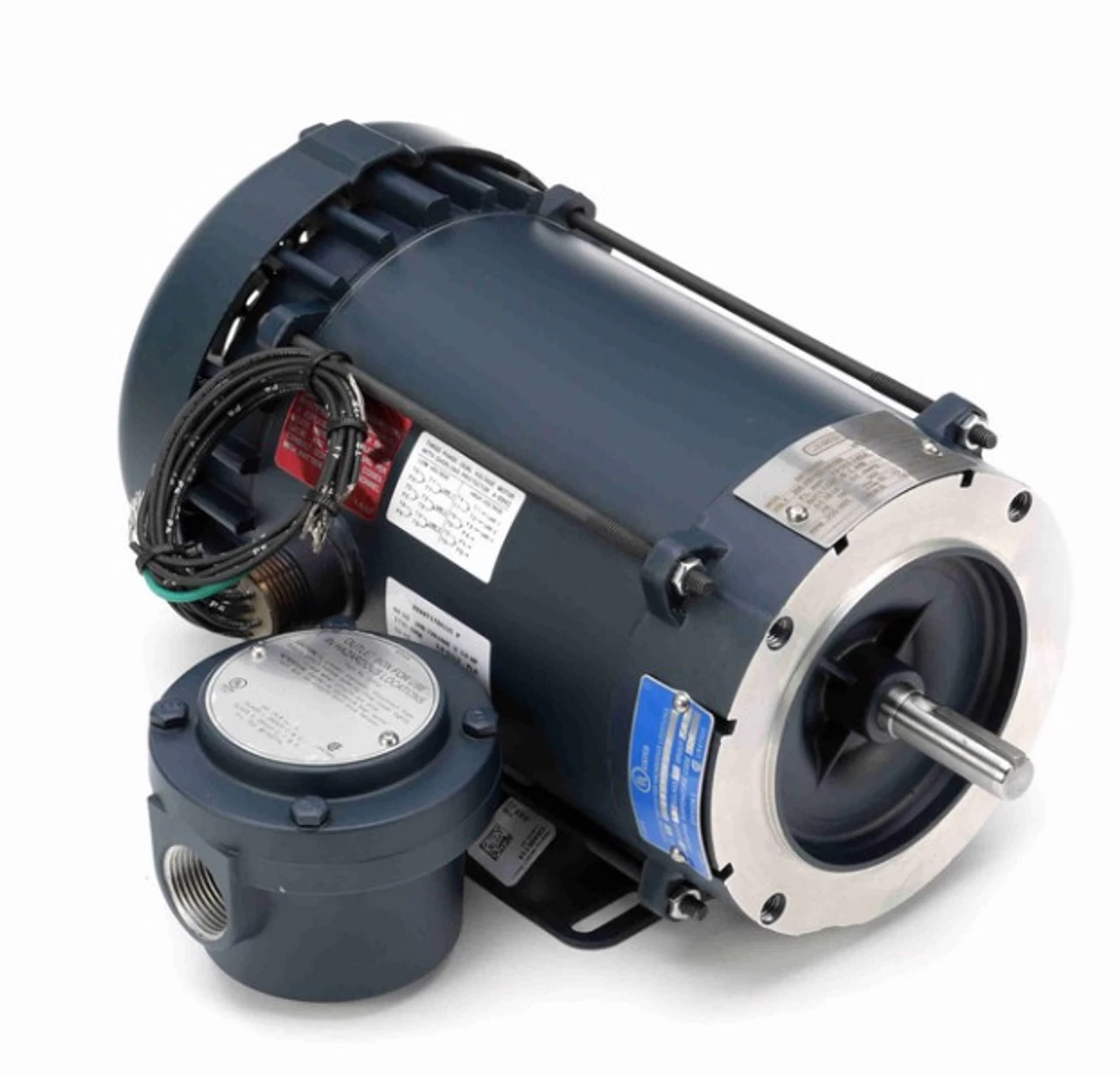

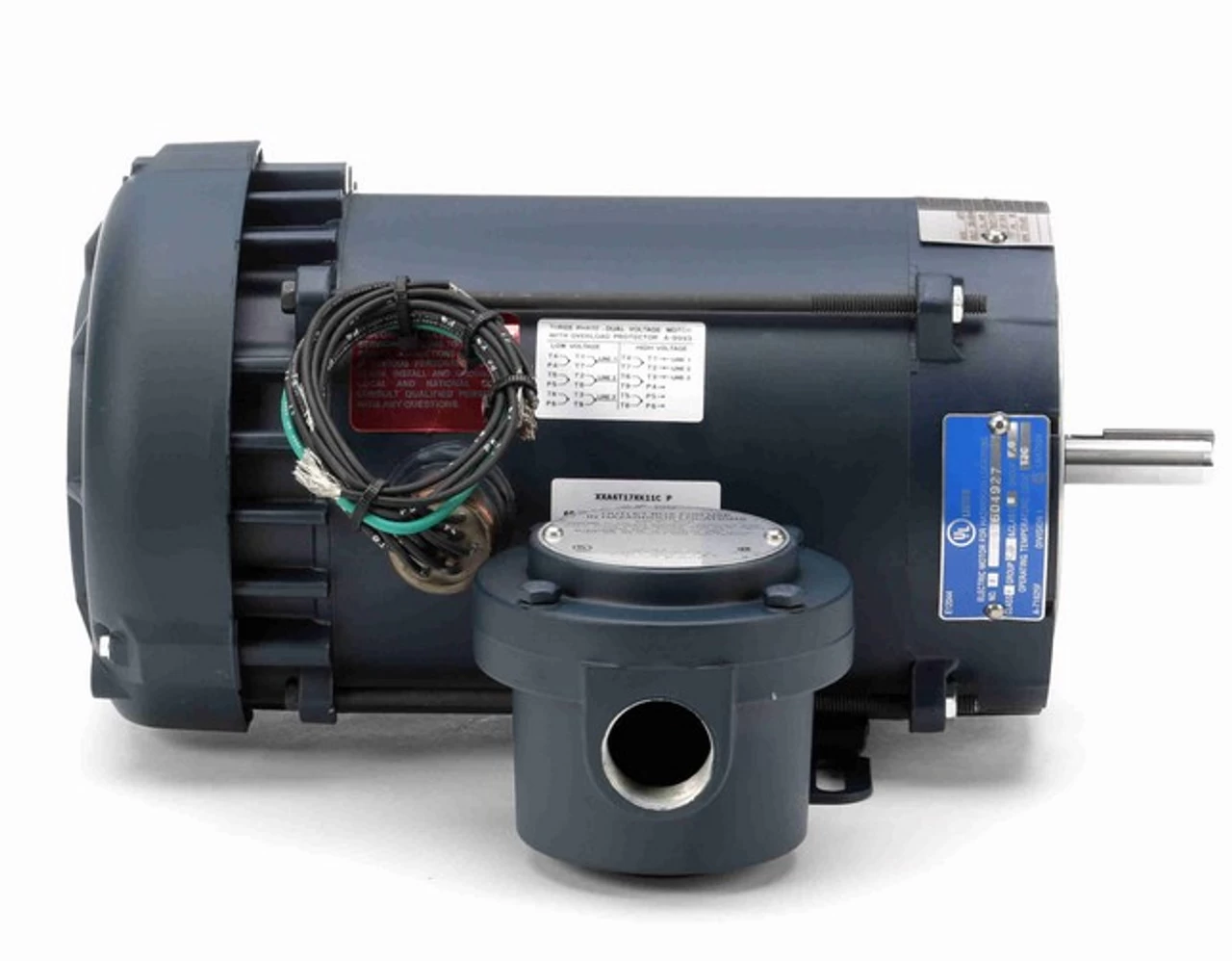

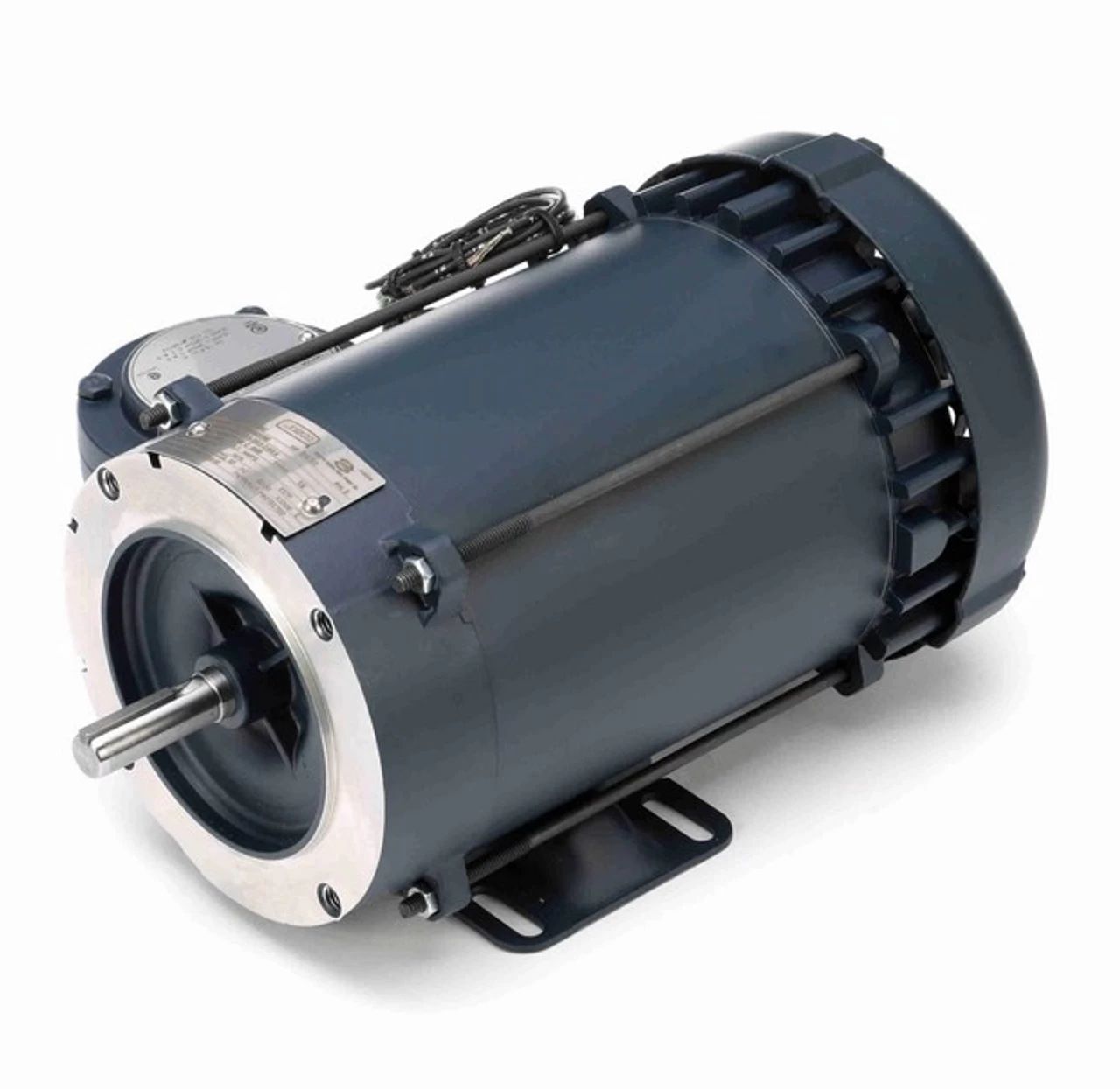

114630.00 Leeson 3/4 Hp 1800 RPM 208-230/460V 56C Frame TEFC Explosion-Proof (Rigid Base) 3-Phase Motor
Original price was: $391.00.$98.99Current price is: $98.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 3/4 hp 1800 RPM, 2.9-3.0/1.5 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
- NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0, Overload Protection = Auto
- Rigid Base, Reversible, Ball Bearings – Class B Insulation
- 1 Year Manufacture Warranty
Explosion-Proof motor for use in hazardous environments with a C-face mount. DIV 1 EXP PROOF CL I GR CD CL II GR FG T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 114630.00
