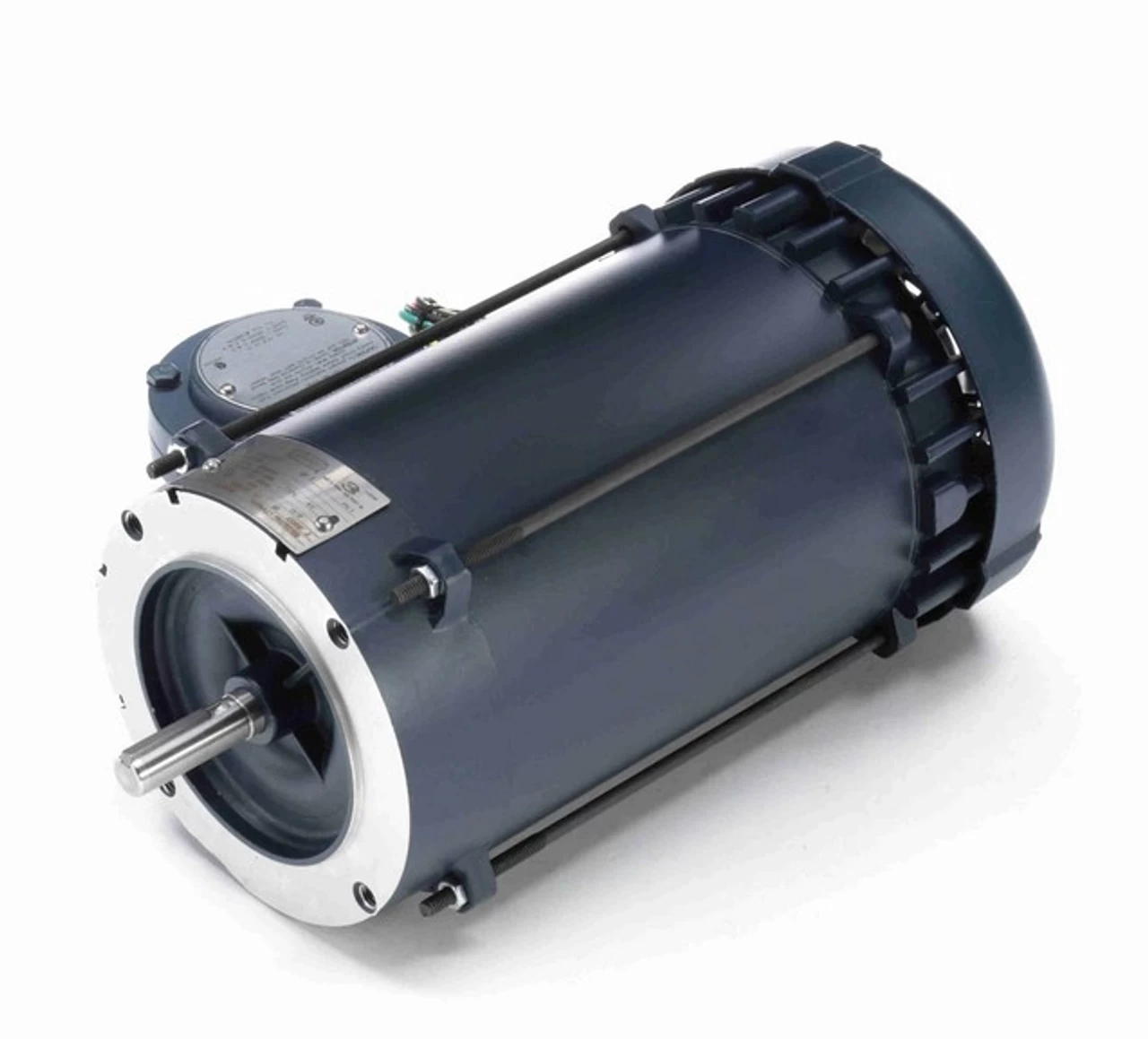

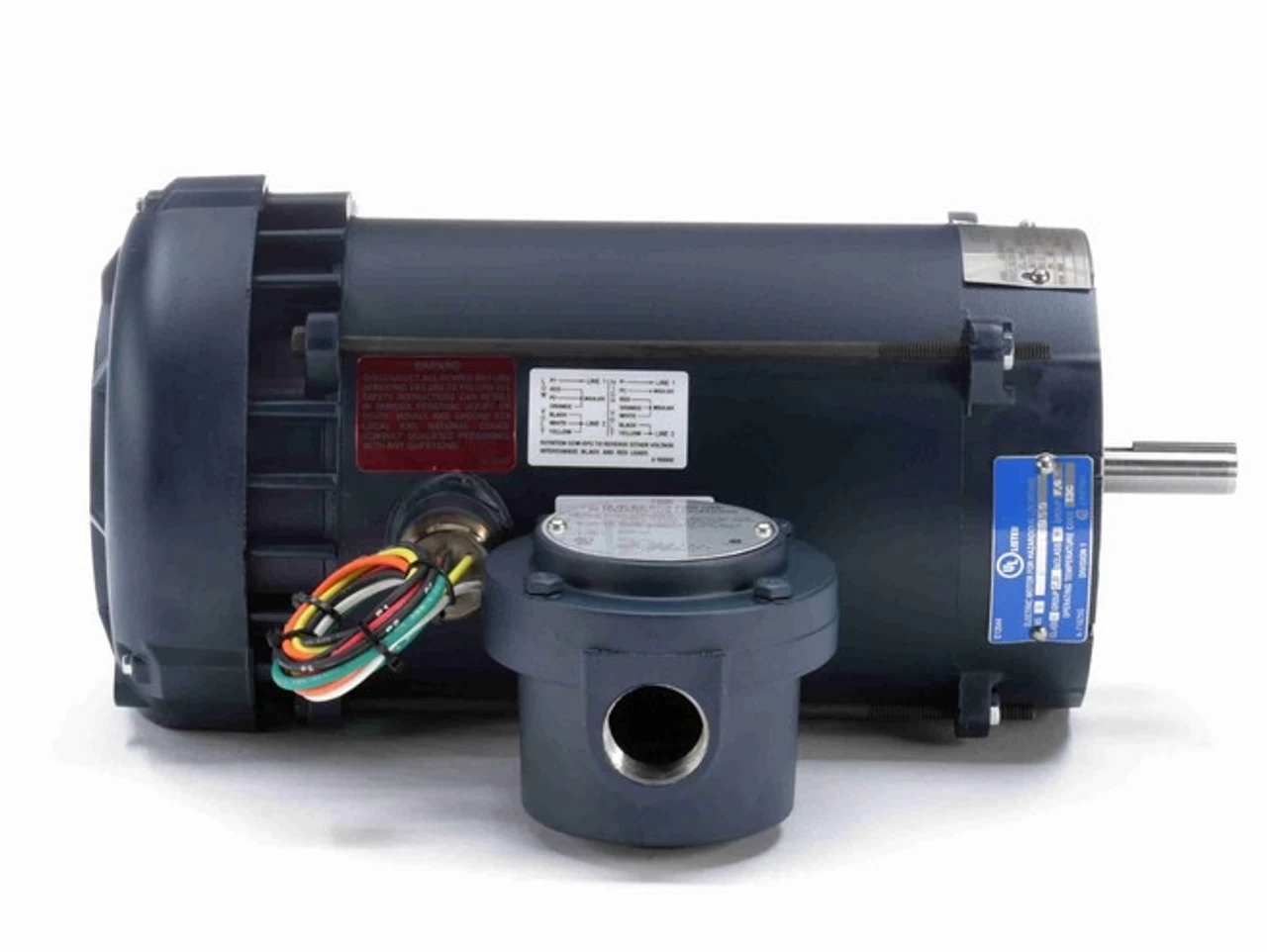

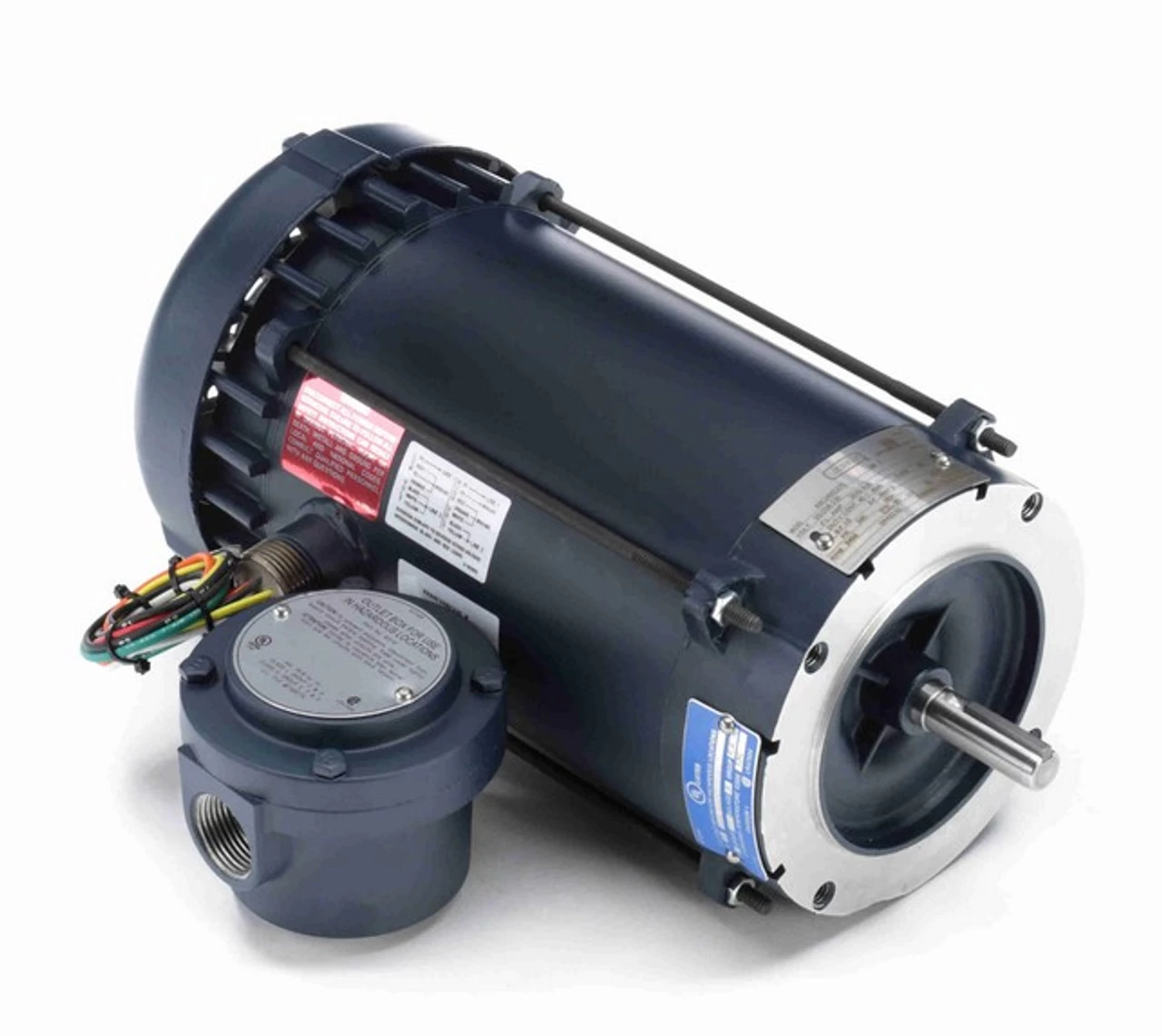

114425.00 Leeson 2 Hp 3600 RPM 115/208-230V 56C Frame Explosion-Proof C-Face (no Base) 1-Phase Motor
Original price was: $333.00.$96.99Current price is: $96.99.
- The best quality products, always.
- Best price, safe shopping guarantee
- Protect Your Information, Shop with Safe Payments
- Safe Shopping Guaranteed
- 2 hp 3600 RPM, 20.0/10.8-10.0 amps 115/208-230 Volts 60 Hz. Capacitor Start Motor
- NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
- Service Factor: 1.0, Overload Protection = Auto
- No Base, Reversible, Ball Bearings – Class B Insulation
- 1 Year Manufacture Warranty
Explosion-Proof motor for use in hazardous environments with a C-face mount. EXP PROOF CL I GR C&D CL II GR F&G T3C. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled.114425.00
