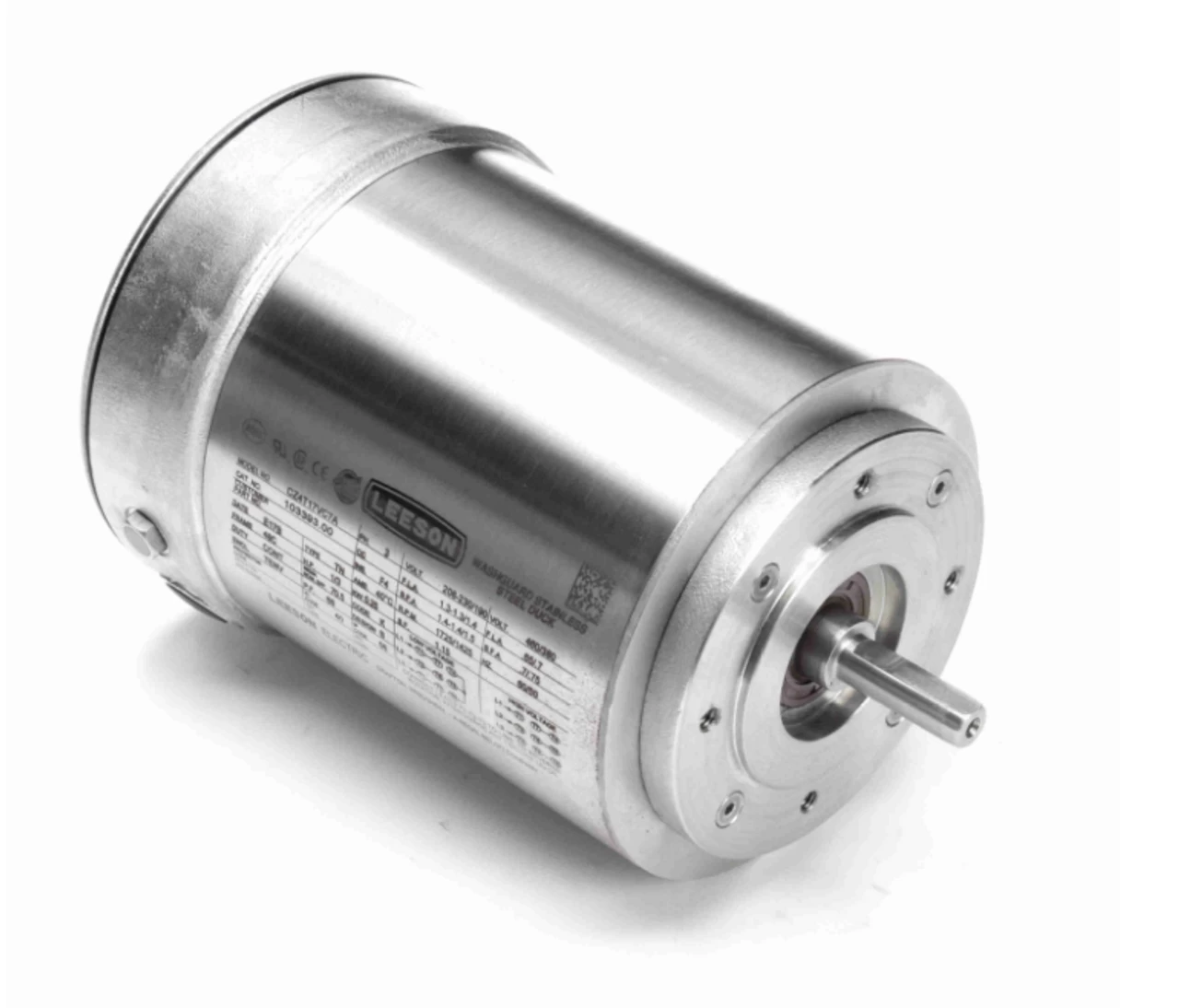

103393.00 Leeson Extreme Duck 1/3 Hp 1800 RPM 208-230/460V 3-Phase 48C Frame TENV (no Base) Motor

• 1/3 hp 1800 RPM, 1.3-1.3/0.65 amps 208-230/460 Volts 60 Hz. Three Phase
• NEMA 48C frame, C-face, Stainless Steel Keyed Shaft 1/2″ Diameter x 1 1/2″
• Service Factor: 1.15, Overload protection = None
• No Base, Reversible, Ball Bearings, Class F Insulation
• 1 Year Manufacture Warranty,

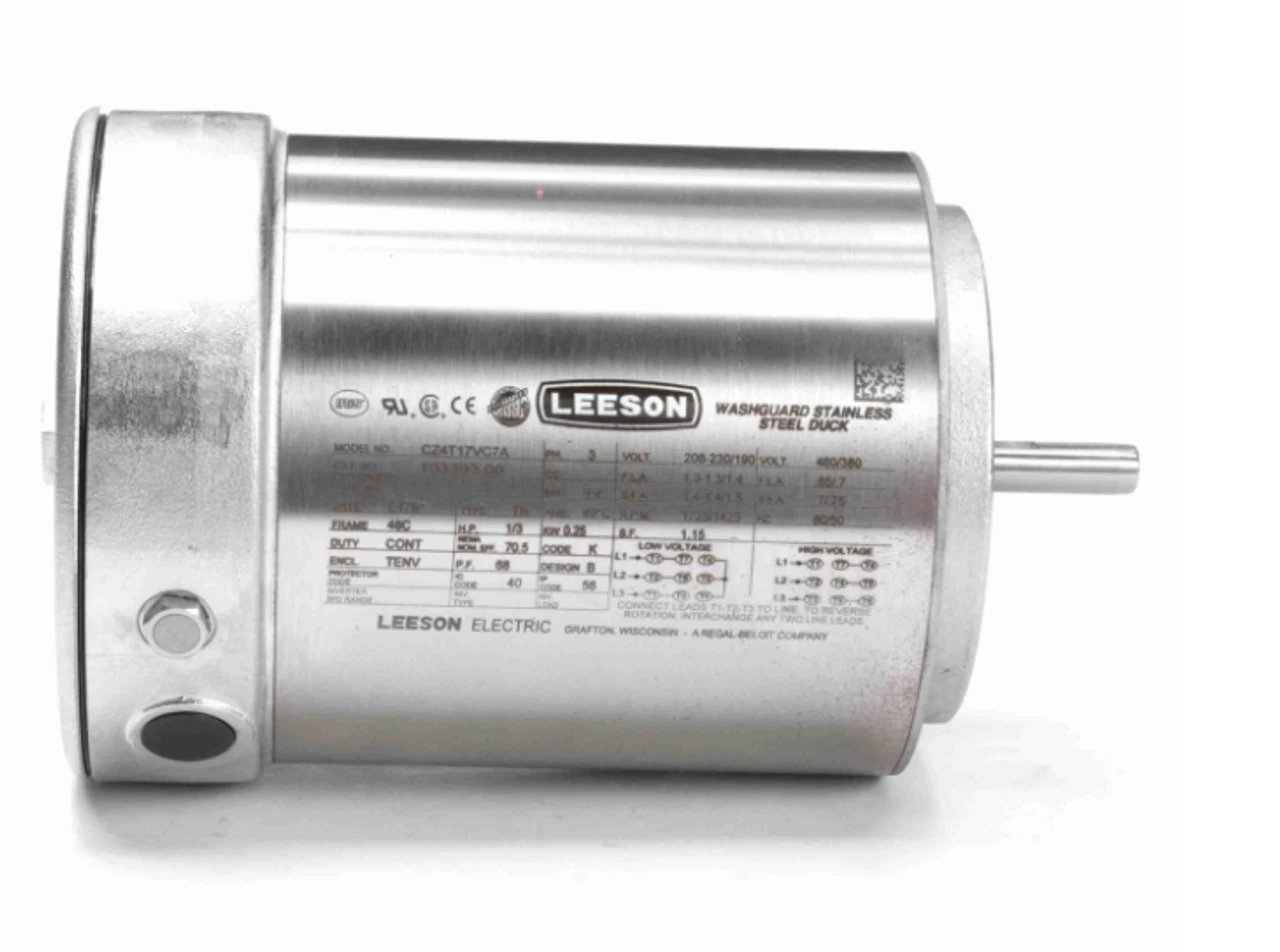

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 103393.00
