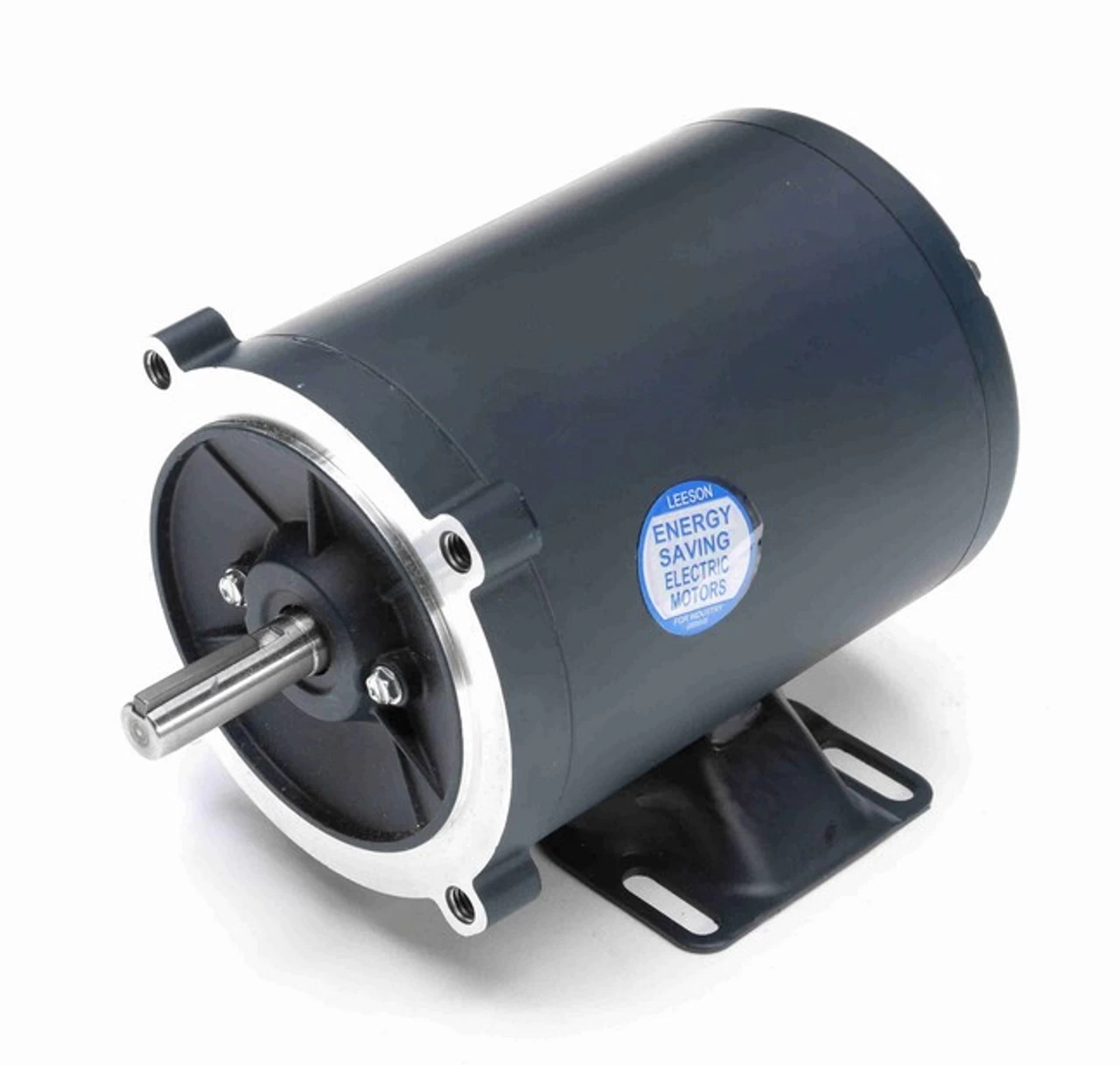

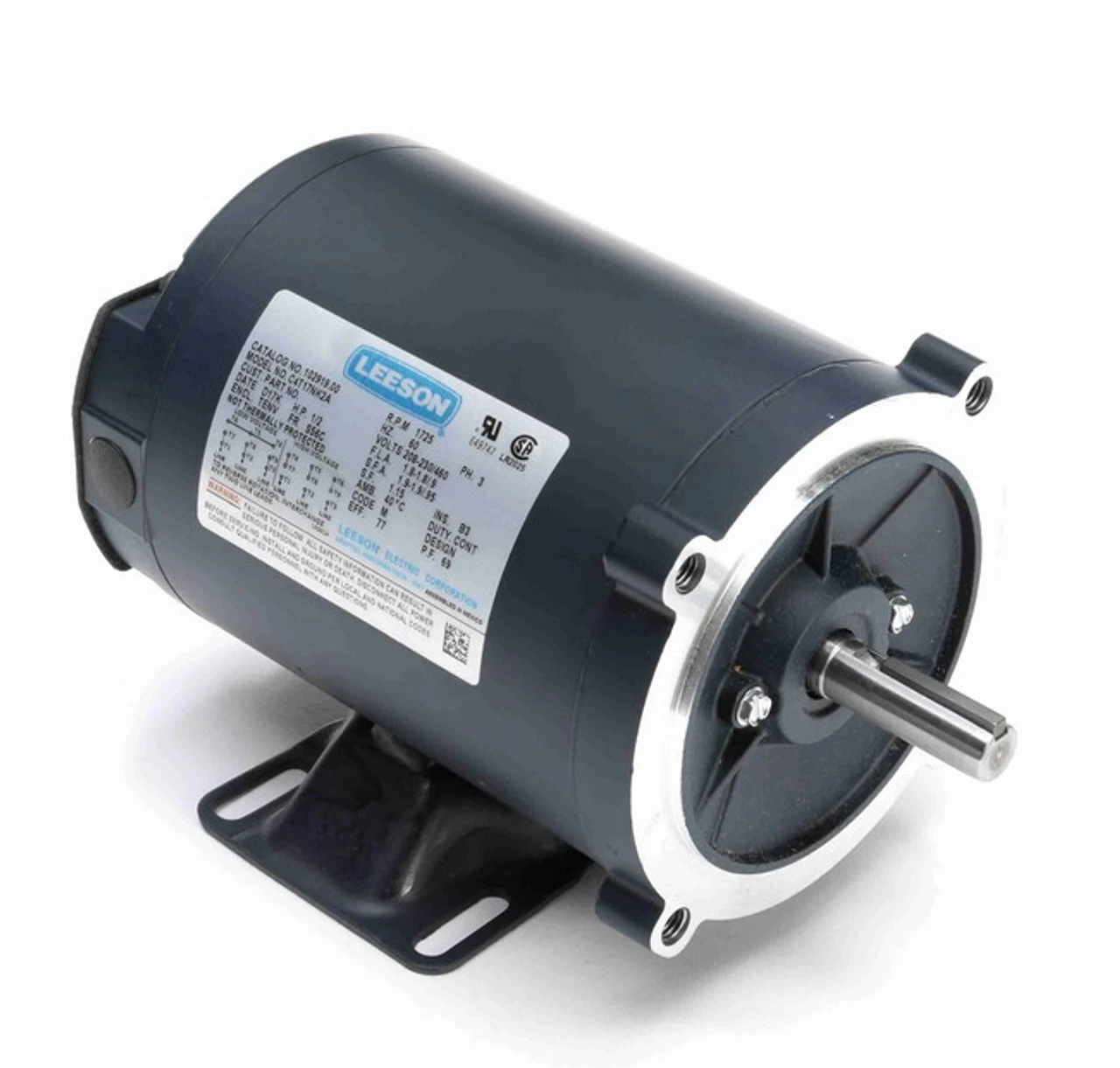

102919.00 Leeson 1/2 Hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (with Base) 3-Phase Motor

• 1/2 hp 1800 RPM, 1.8-1.8/0.9 amps 208-230/460 Volts 60 Hz. Three Phase Motor
• NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
• Service Factor: 1.15, Overload Protection = None
• Rigid Base, Reversible, Ball Bearings – Class B Insulation
• 1 Year Manufacture Warranty

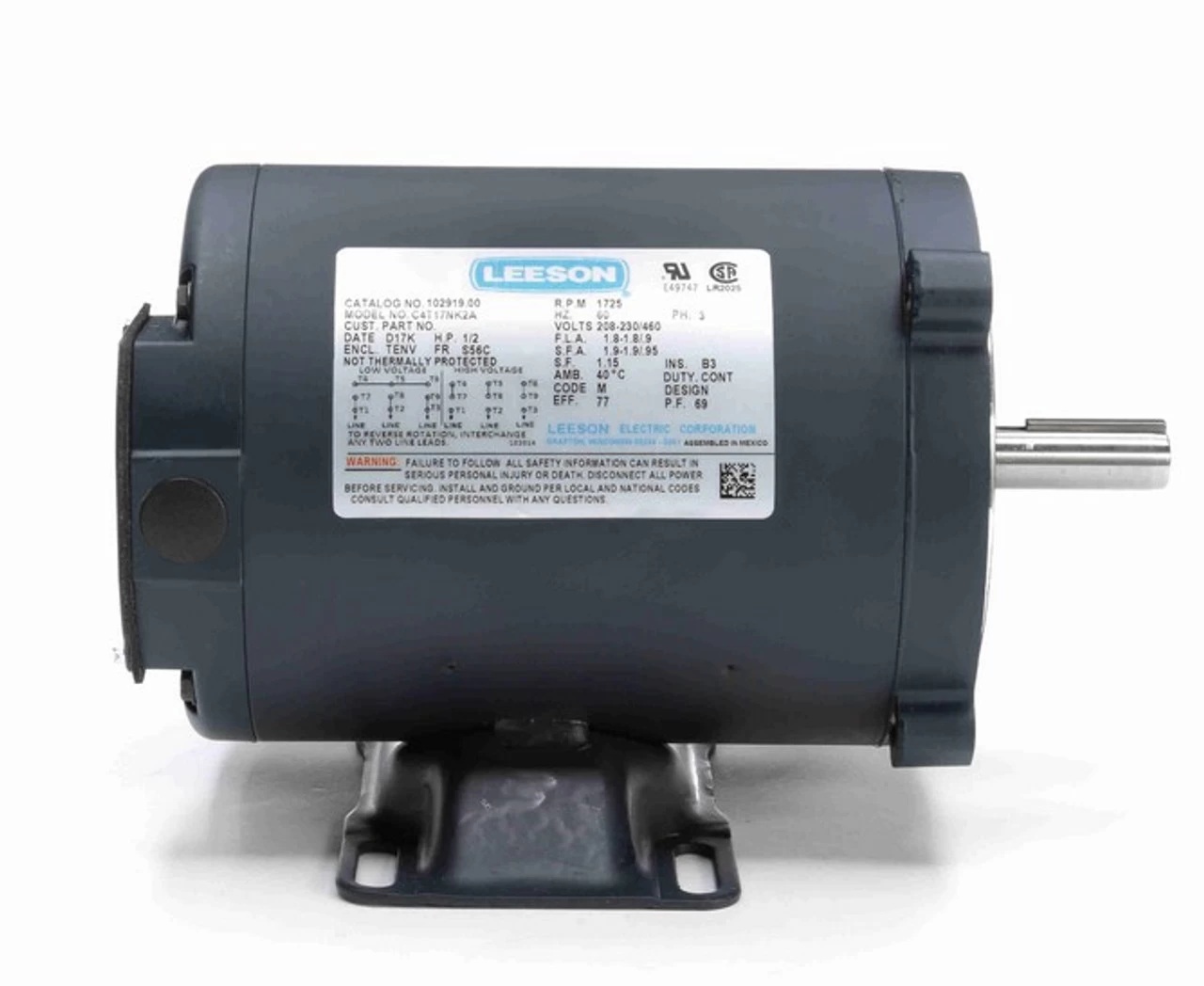

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated.102919.00
