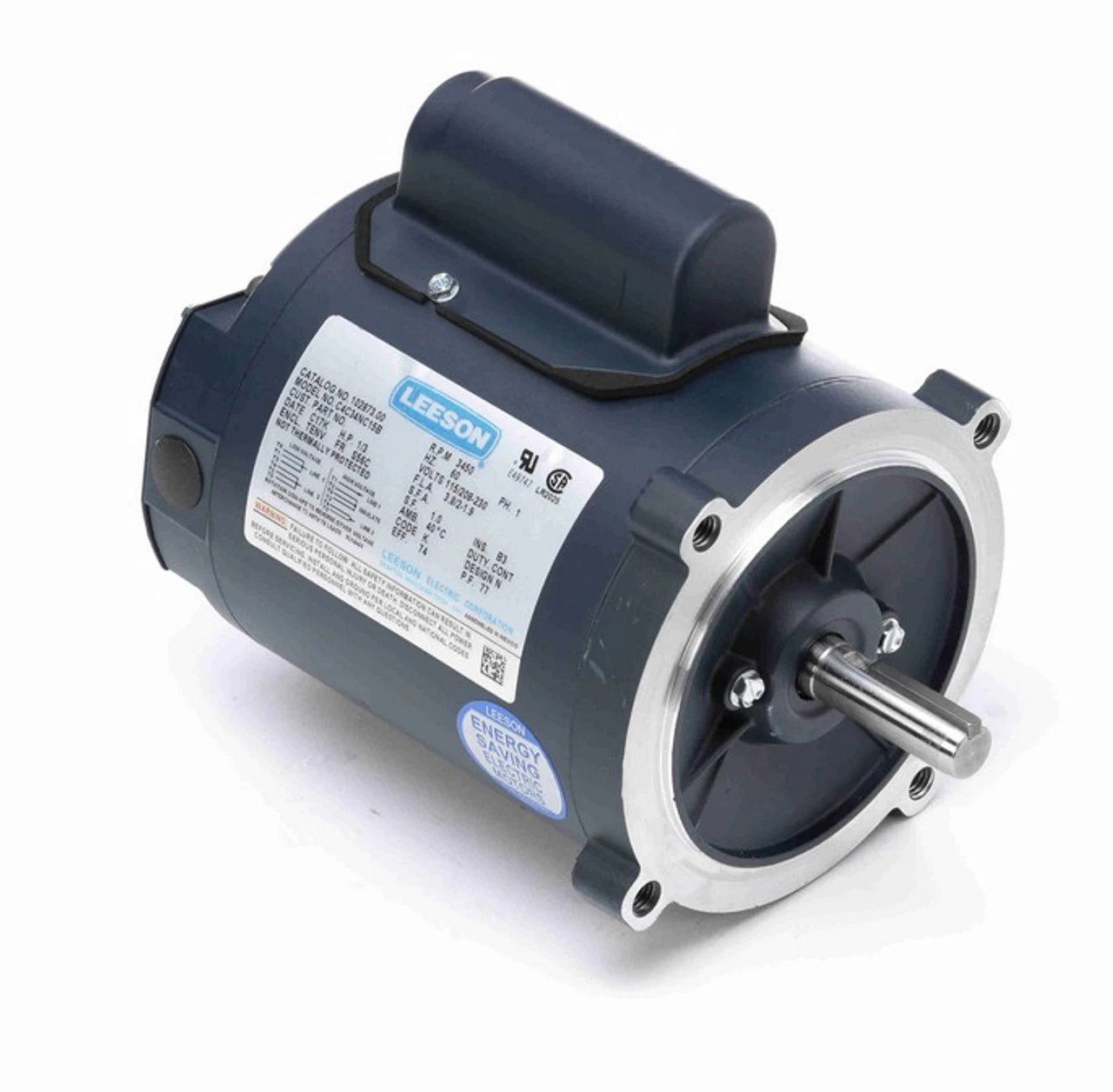

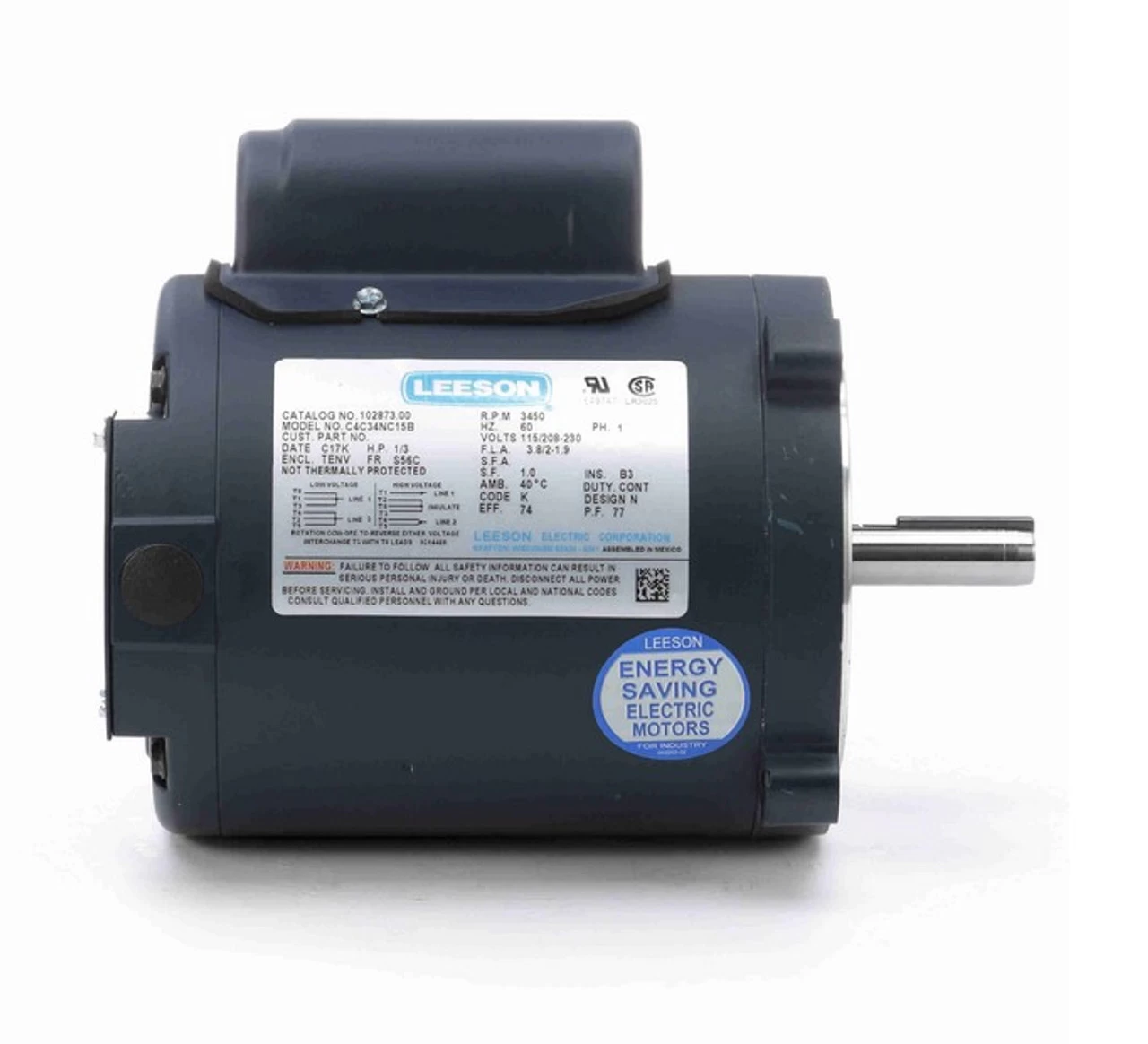

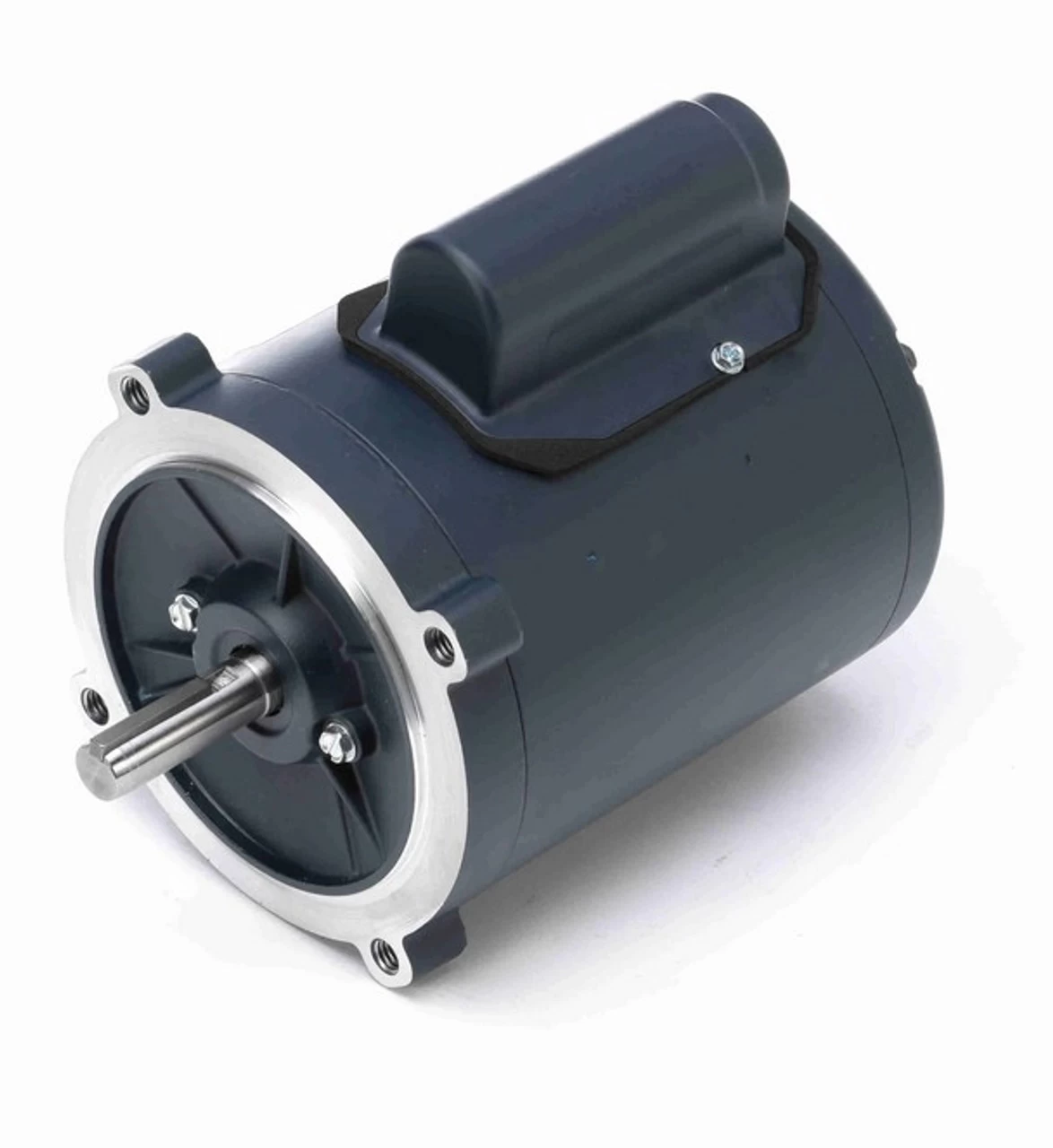

102873.00 Leeson 1/3 Hp 115/208-230V 3600 RPM TENV 56C Frame Cap Start Motor

• 1/3 hp 3600 RPM, 3.8/2.0-1.9 amps, 115/208-230 Volts 60 Hz, Capacitor Start
• NEMA 56C Frame Keyed Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
• Service Factor = 1.0, Thermal Protection = None
• No Base, Reversible, Ball Bearings, Class B insulation
• 1 Year Manufacture Warranty

General purpose motor with a C-face mount. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft..  TENV = Totally-Enclosed Non-Ventilated 102873.00
